Home >> Geo >> 1990 >> Tracker Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Wiring Diagram

Wiring Diagrams: Wiring Diagram

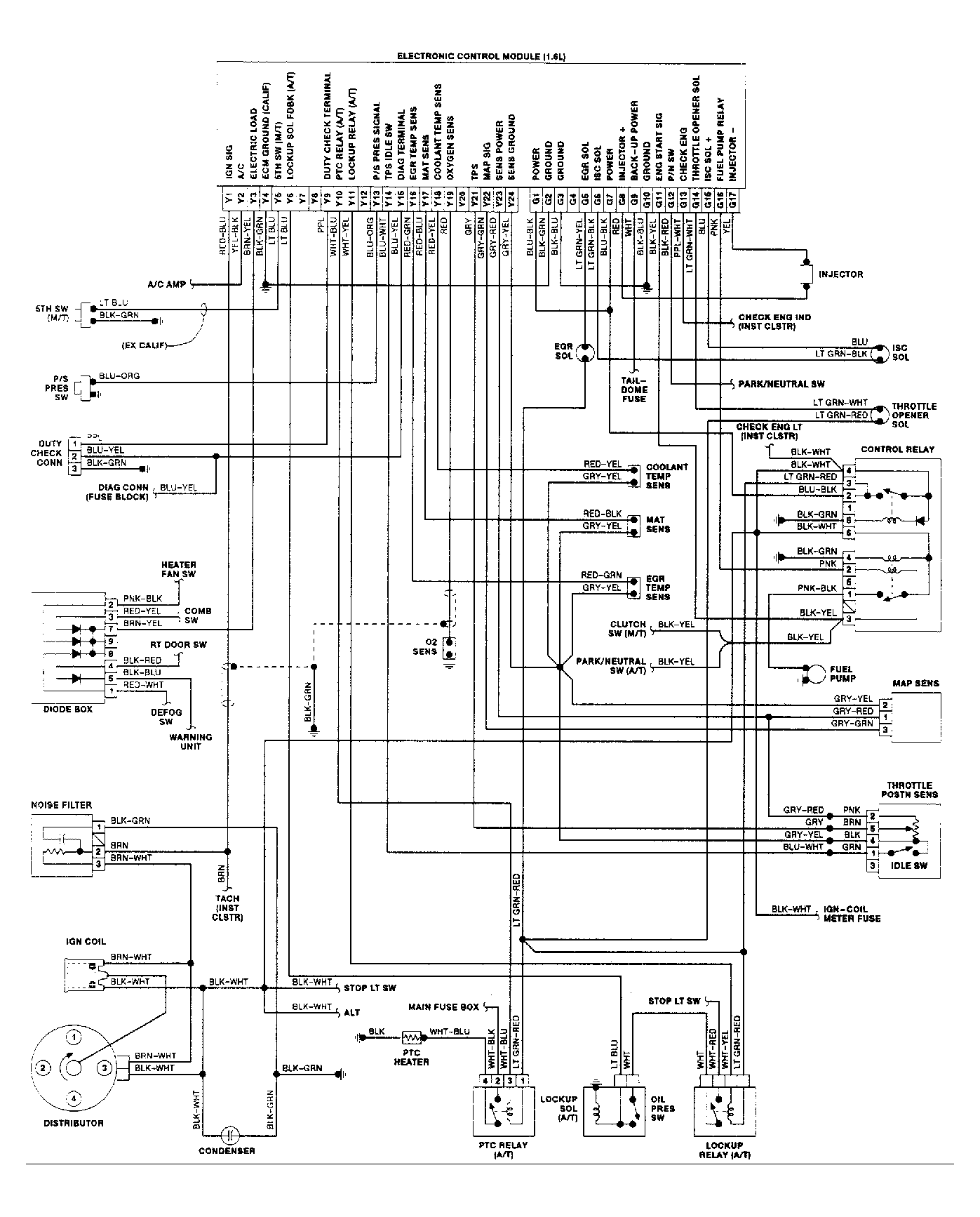

Fig 1: Tracker 1.6L Wiring Diagram

G90F21704
