Connector Identification

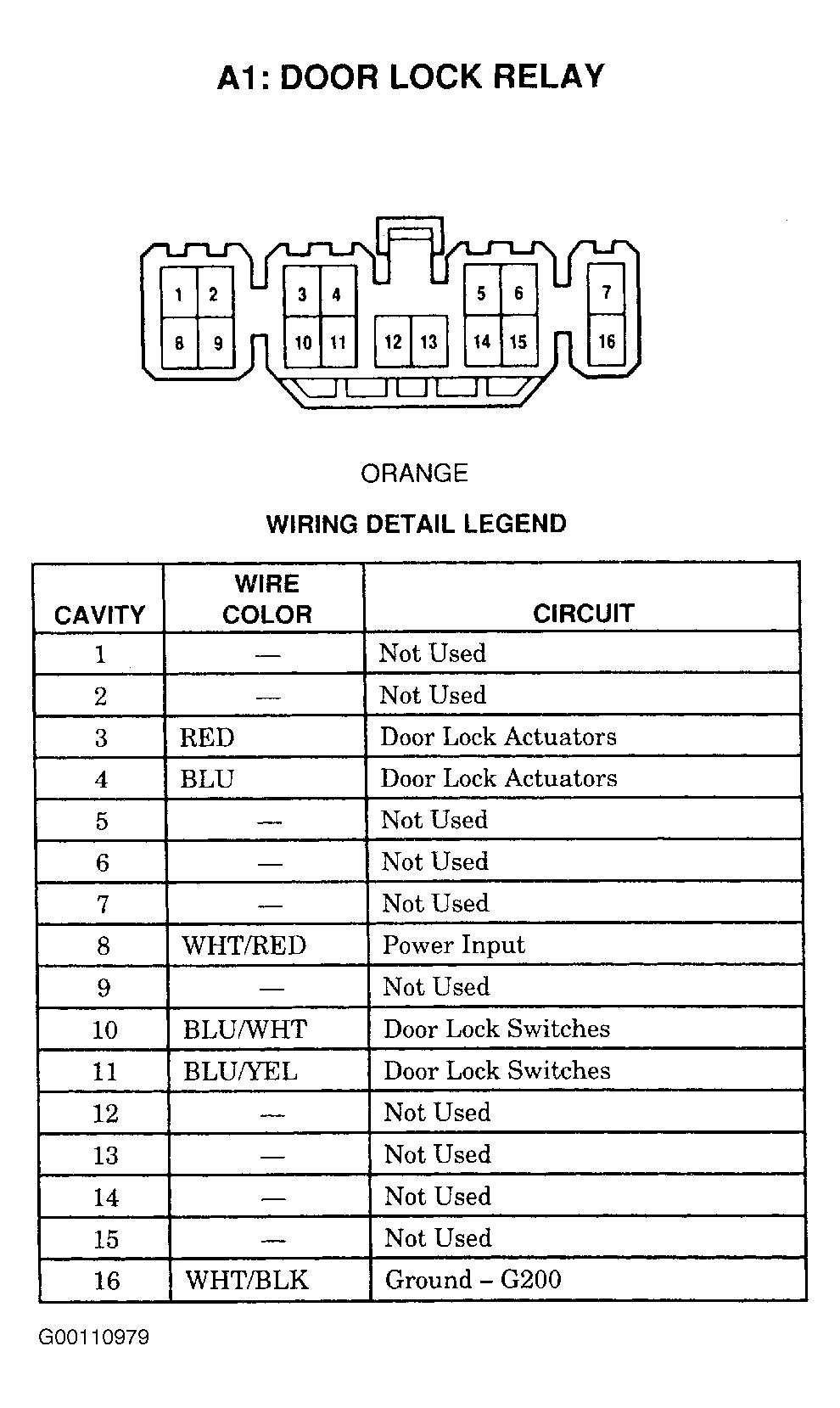

Fig 1: Identifying Door Lock Relay Connector Cavities

Courtesy of GENERAL MOTORS CORP.

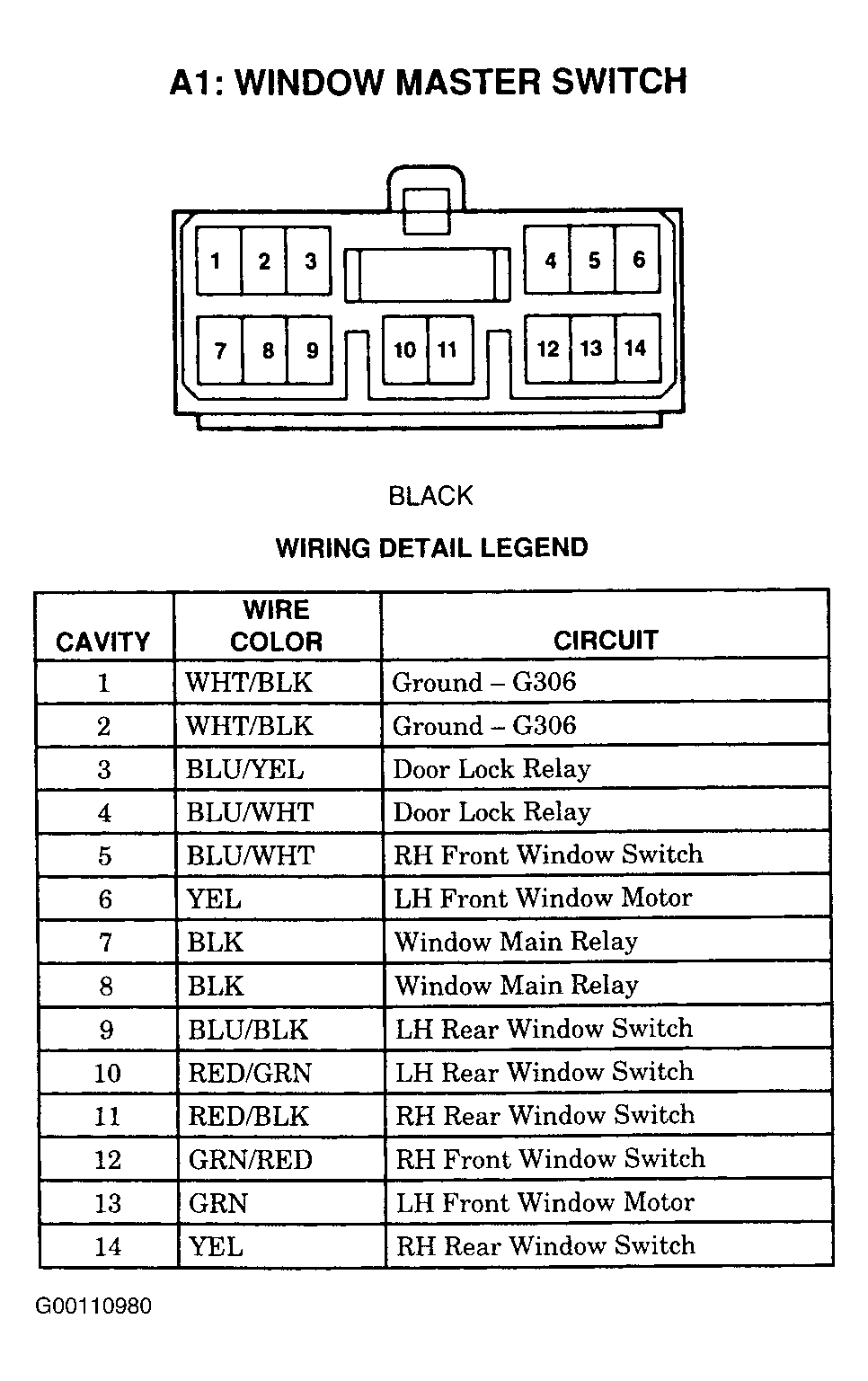

Fig 2: Identifying Window Master Switch Connector Cavities

Courtesy of GENERAL MOTORS CORP.

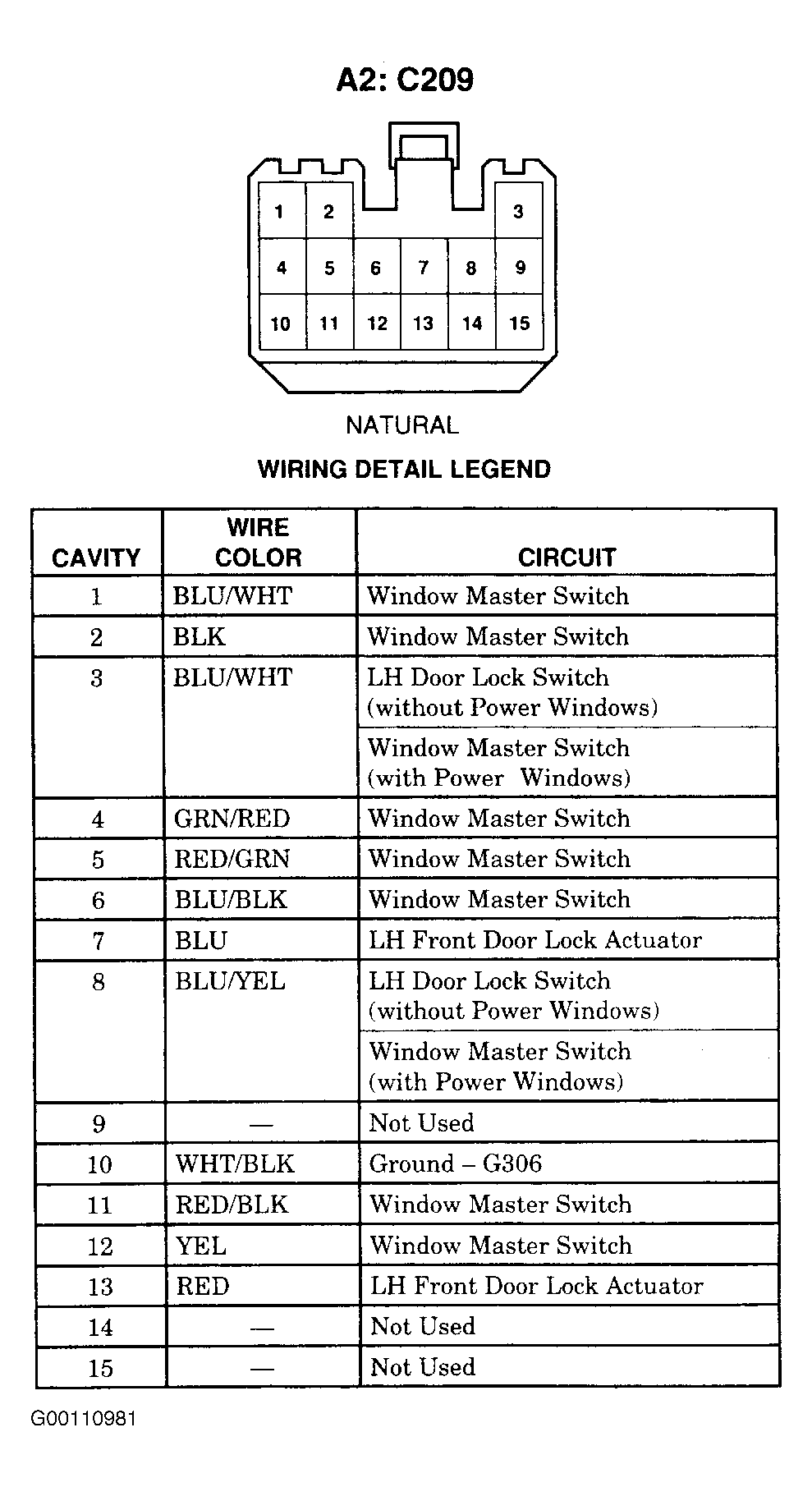

Fig 3: Identifying Connector C209 Terminals

Courtesy of GENERAL MOTORS CORP.

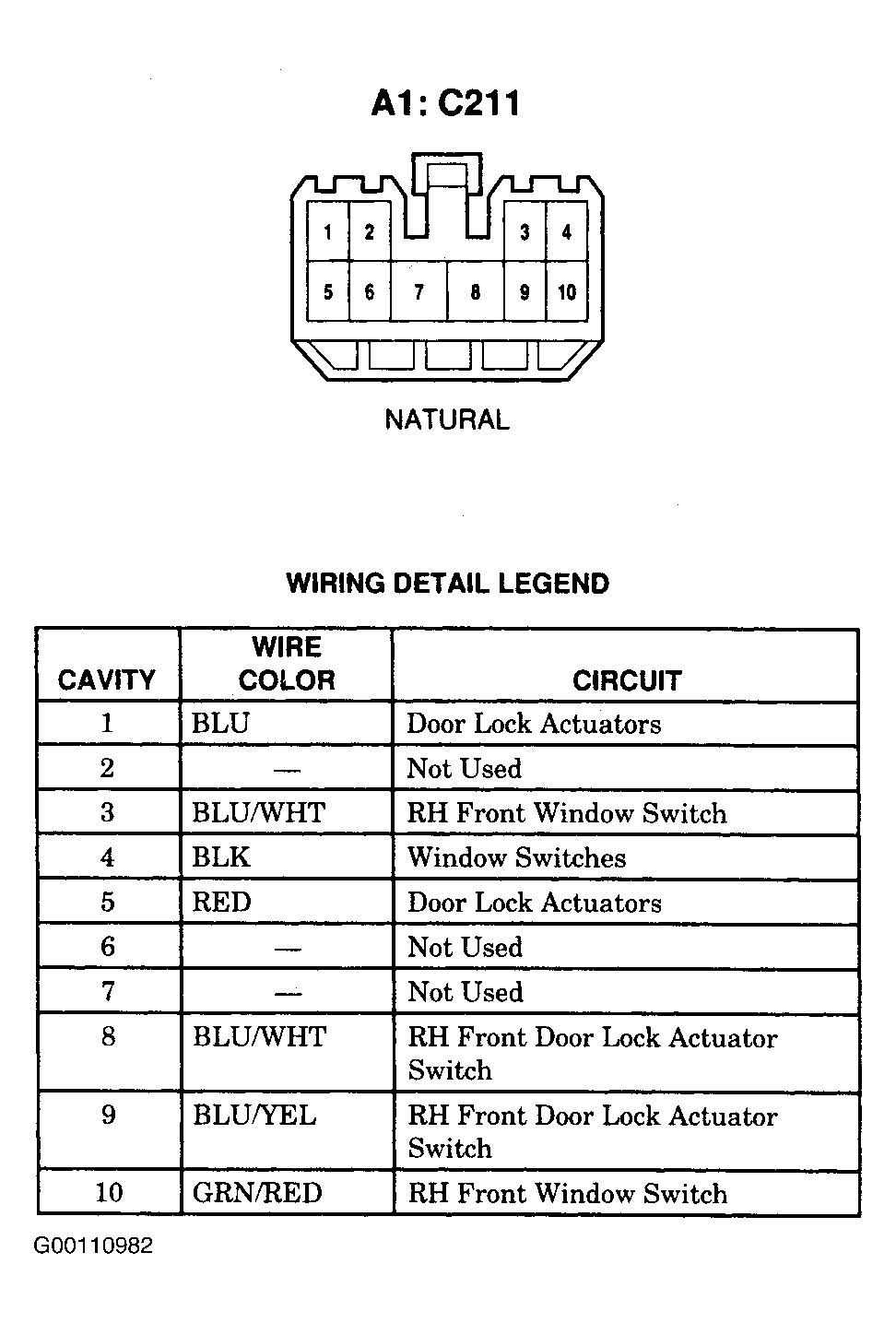

Fig 4: Identifying Connector C211 Terminals

Courtesy of GENERAL MOTORS CORP.

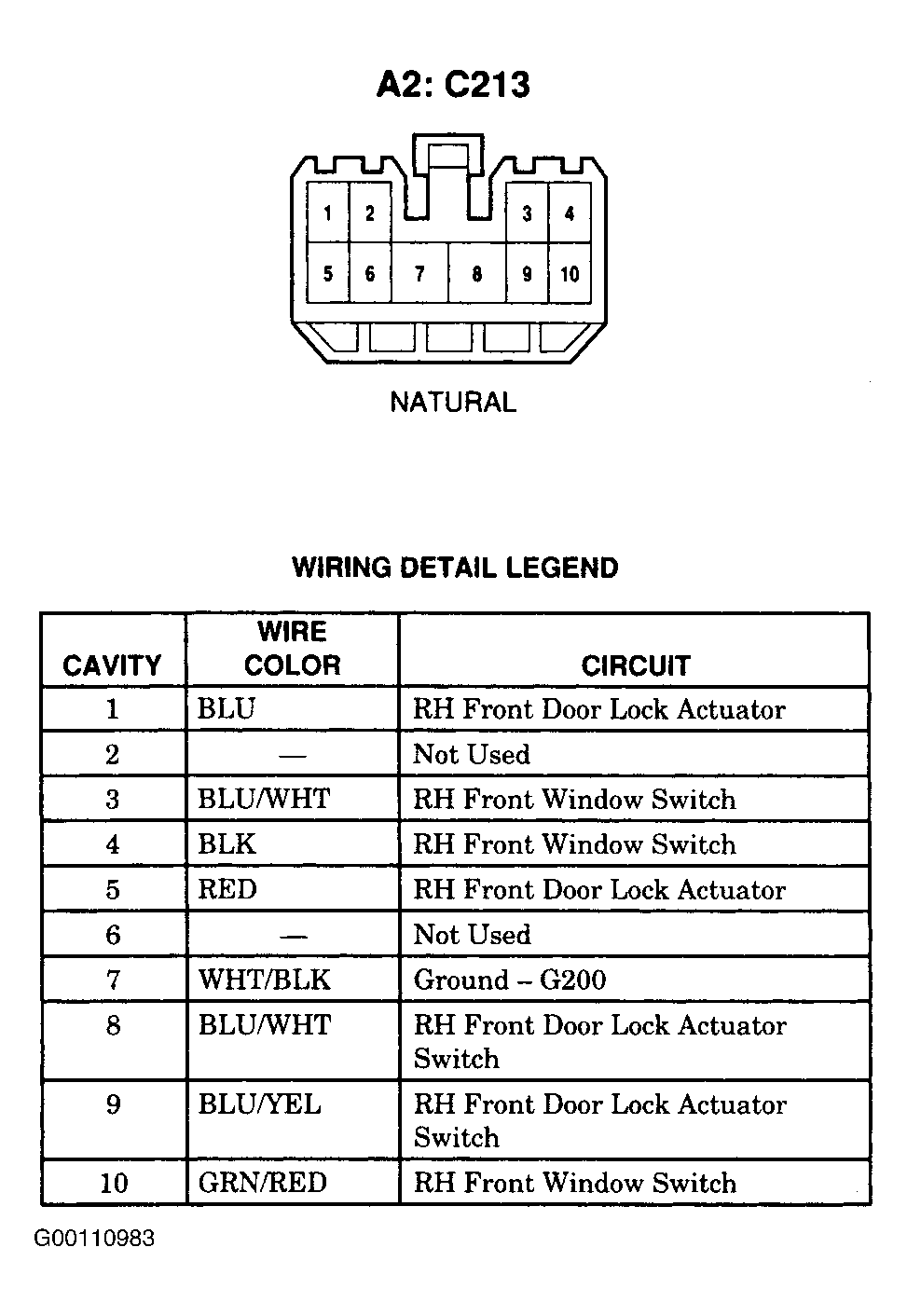

Fig 5: Identifying Connector C213 Terminals

Courtesy of GENERAL MOTORS CORP.

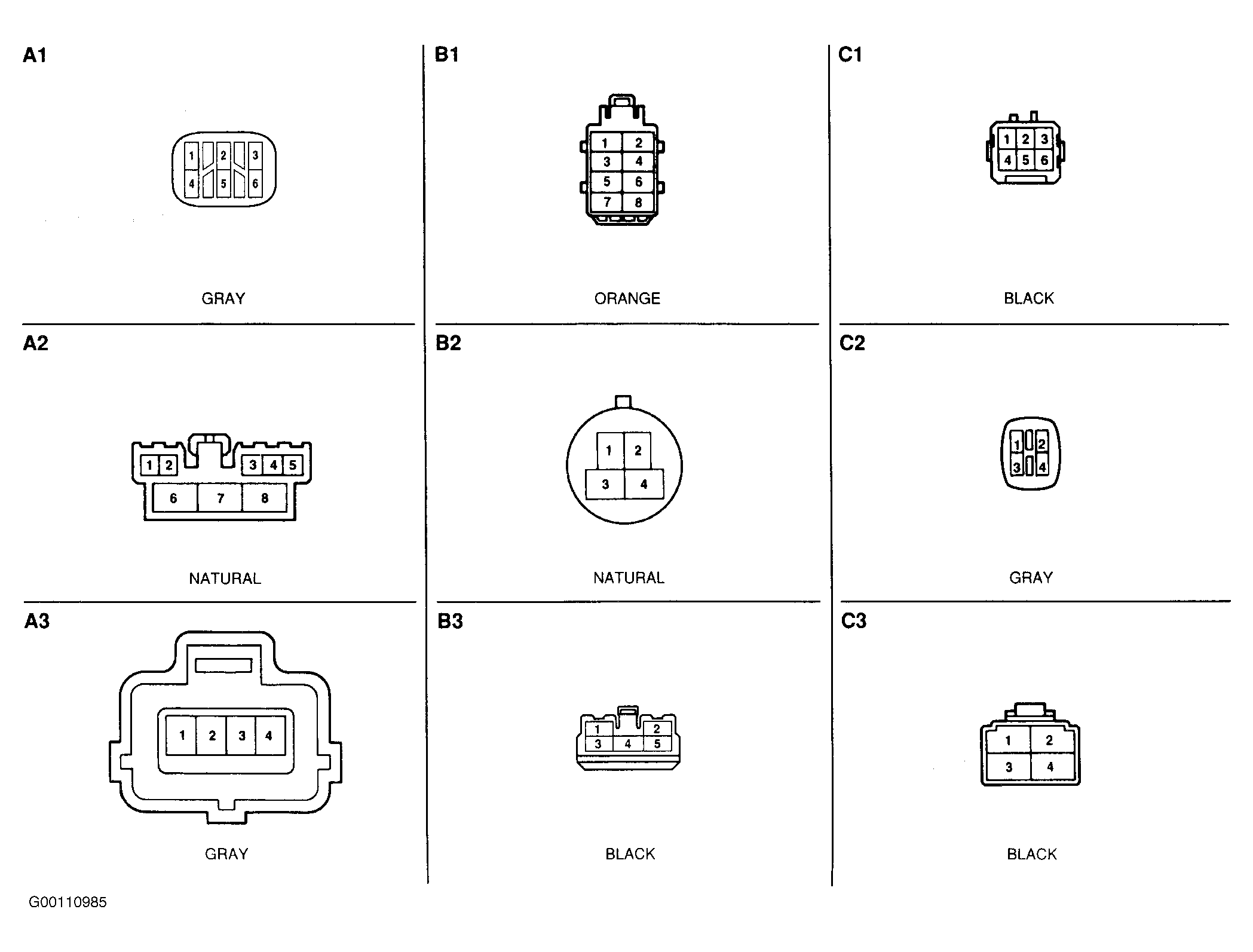

Fig 6: Identifying Connector Terminals (1 of 2)

Courtesy of GENERAL MOTORS CORP.

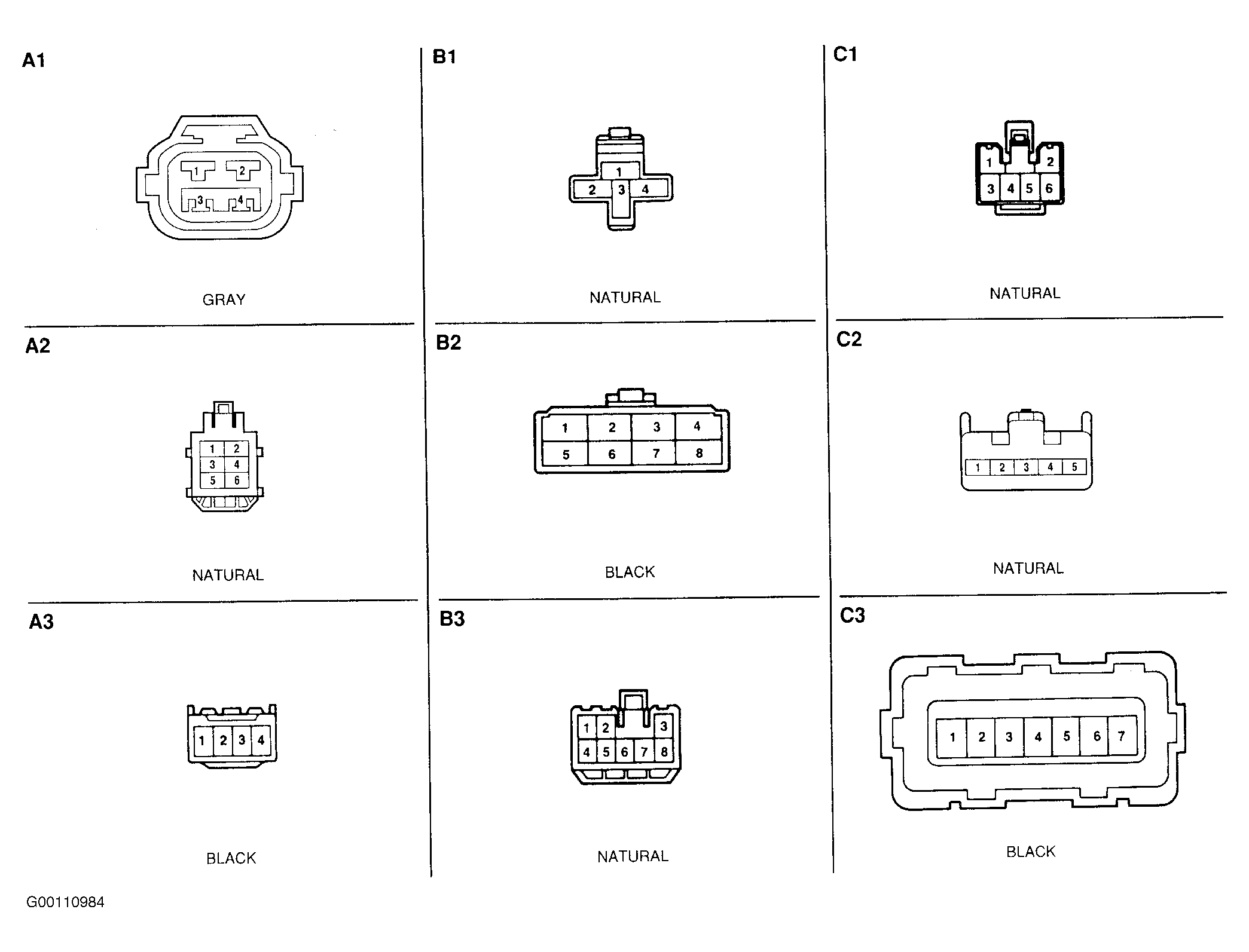

Fig 7: Identifying Connector Terminals (2 Of 2)
