Chart #3 Left Window Does Not Close

If left window does not close, see Fig 1 .

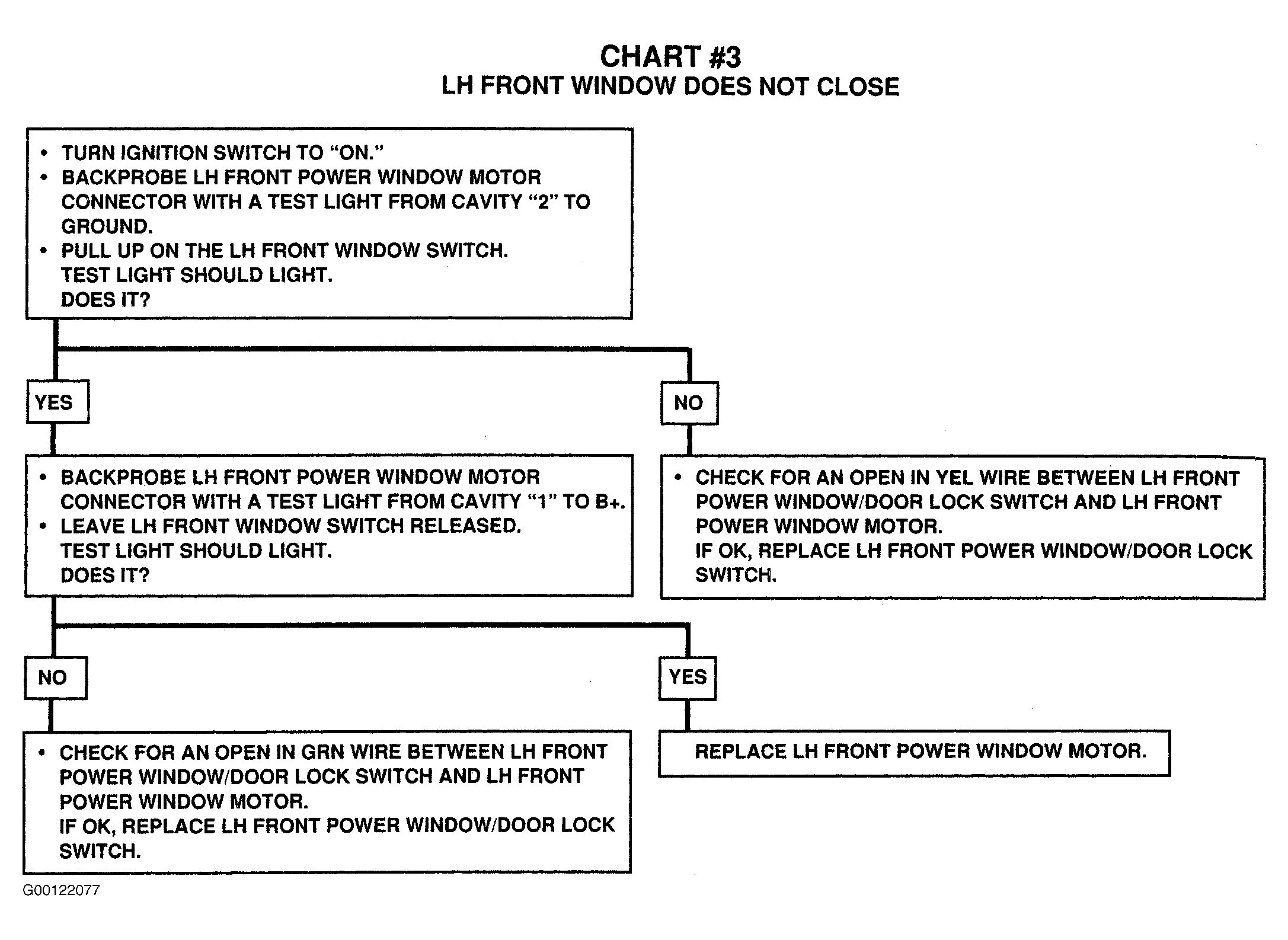

Fig 1: Chart #3: Left Window Does Not Close

G00122077

Courtesy of GENERAL MOTORS CORP.
