Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Module | On right front floorboard, under carpet. |
| Audio Alarm Module | On back of junction block No. 1. |
| Cruise Control Module | Behind center console, below radio. |

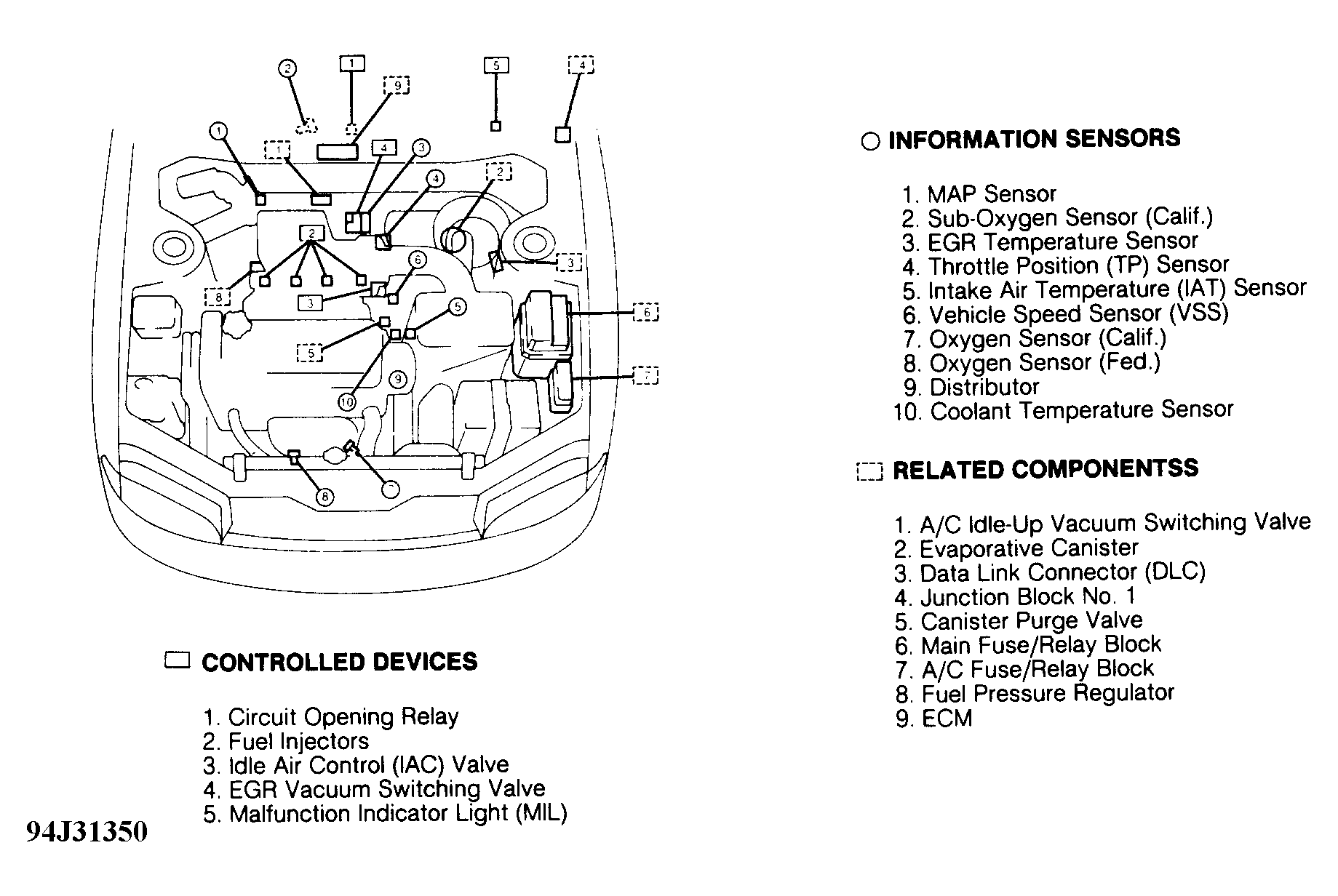

| ECM | Behind front of center console. See Figure . |
| Lamp Driver Module (ABS) | Behind center of dash. |
| Power Door Lock Control Module | Behind center of dash, attached to support brace. |
| Shift Lock Control Module (A/T) | Under center console, at base of parking brake lever. |
| Sun Roof Control Module | On front center of roof headliner. |
