Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/T Control Module | Behind dash, left of steering column. | |
| Audio Alarm Module | Behind left kick panel, on fuse/relay block. | |
| Diagnostic Energy Reserve Module (DERM) | Behind center of dash, below radio. | |
| Engine Control Module (ECM) | ||

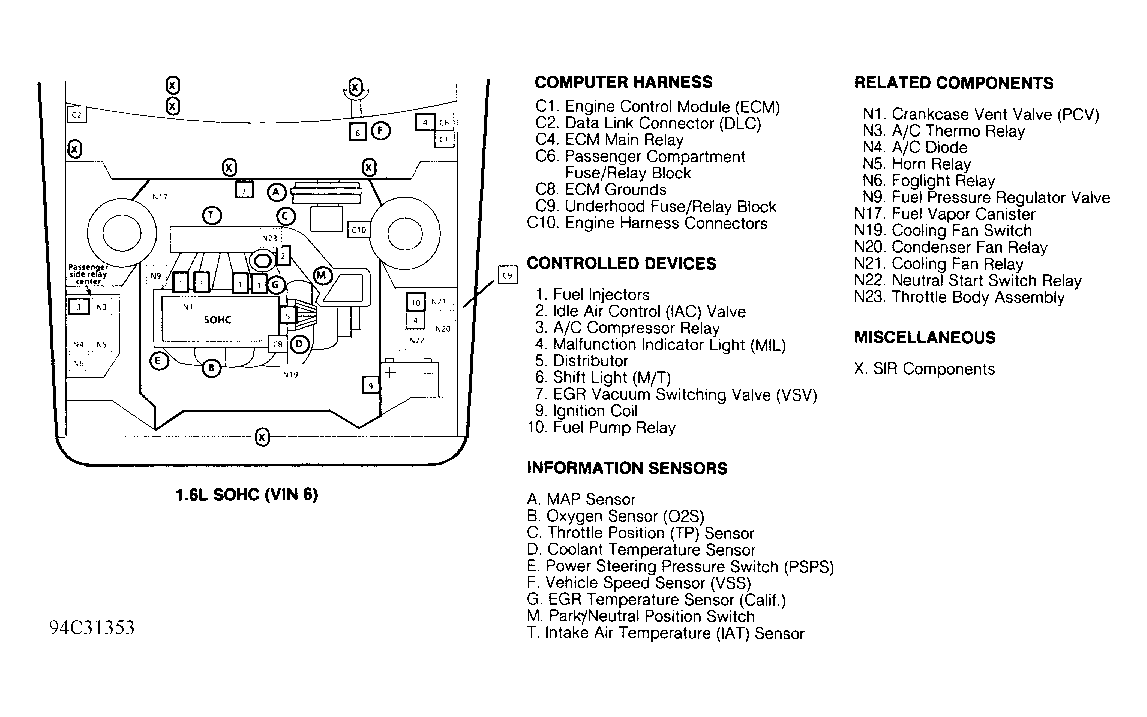

| SOHC (VIN 6) | Under left side of dash, left of steering column. See Figure . | |

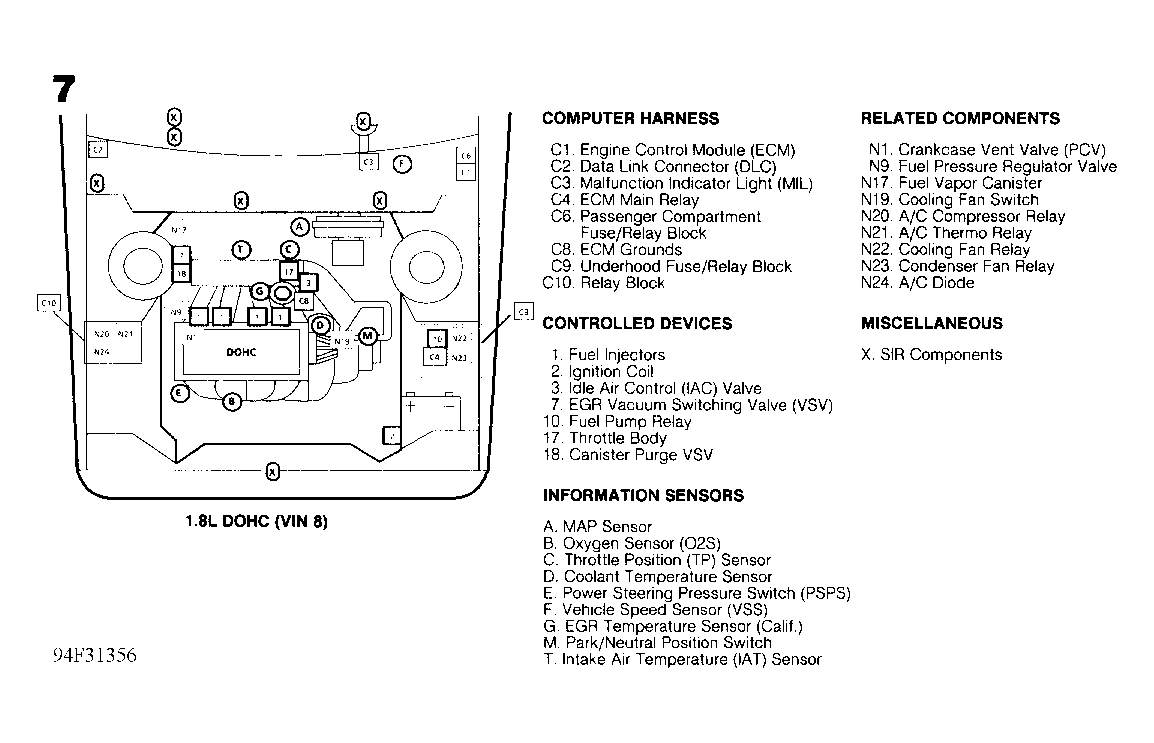

| DOHC (VIN 8) | Under left side of dash, left of steering column. See Figure . | |
| Shift Lock Control Module (A/T) | Under center console, near gear selector. | |
