Riding Height Adjustment: Specifications
RIDING HEIGHT
Measurement
(1)
In. (mm)
"A"
19.70 (500.0)
"B"
19.70 (500.0)
"J"
8.70 (221.4)
"K"
8.80 (222.6)
"Z"
3.00 (77.0)

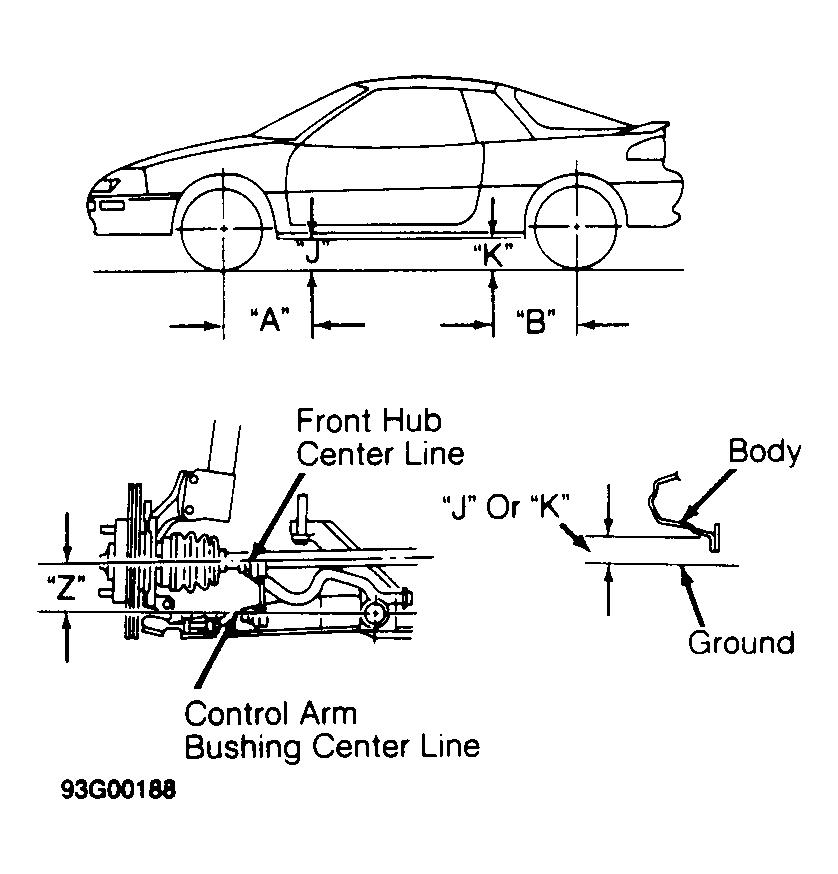

(1)
See
Figure
.
