Toe-In Adjustment: Rear

Adjust toe-in by changing lateral link length. Loosen right and left lateral link lock nuts. See Fig 1 . Turn right and left lateral links evenly to set toe-in to specification. See ALIGNMENT SPECIFICATIONS  table. Tighten lateral link lock nuts to specification. See TORQUE SPECIFICATIONS  .

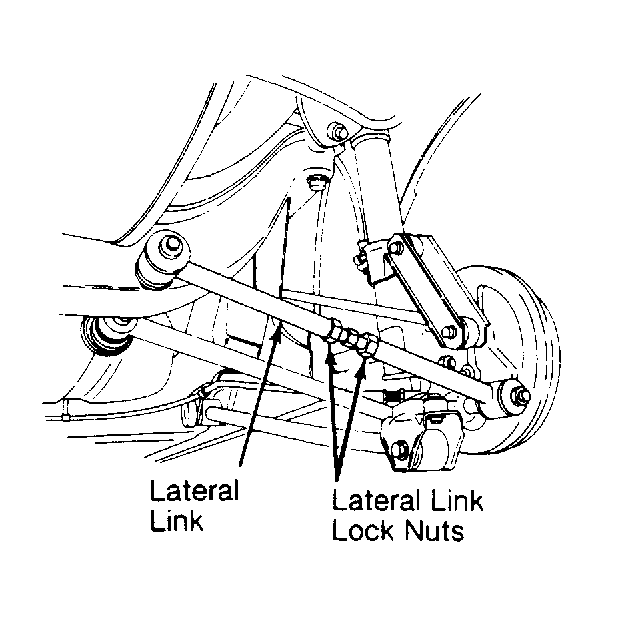

Fig 1: Adjusting Rear Toe-In
G91I01999Courtesy of GENERAL MOTORS CORP.
