Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Component Locations (1 Of 4)
G94G31365

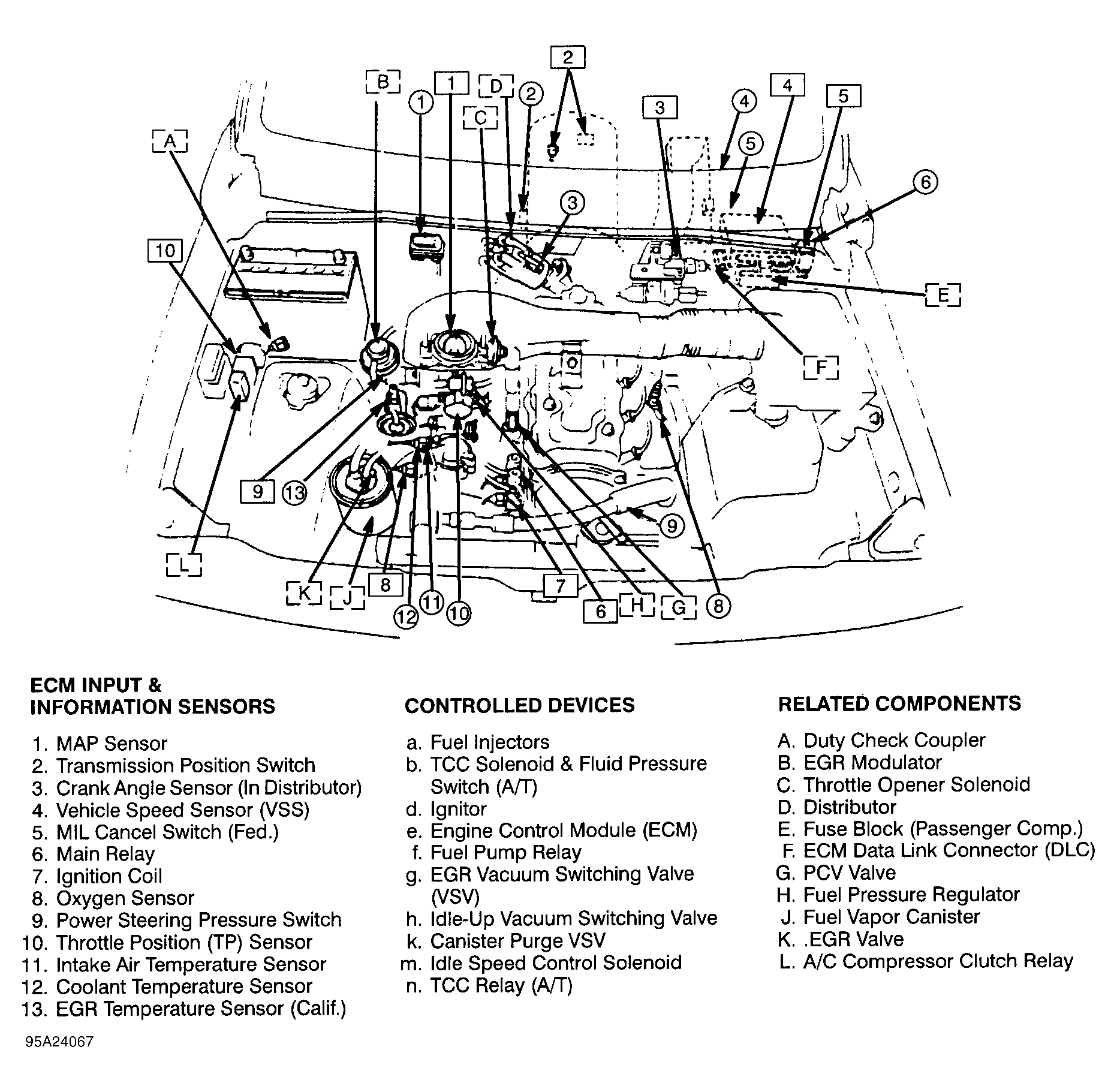

Fig 2: Component Locations (2 Of 4)
G95A24067
Fig 3: Component Locations (3 Of 4)
G94I31367
Fig 4: Component Locations (4 Of 4)
G93J27416
