Connector Identification

EBCM CONNECTOR TERMINAL IDENTIFICATION (1)

Terminal (2) Wire Color Circuit
Connector C1
A1 PPL Serial Data
A2 YEL RR WSS (High)
A3 ORG LR WSS (High)
A4 GRN RF WSS (High)
A5 BLU LF WSS (High)
A6 BLU/YEL ABS ACTIVE Indicator Control
A9 YEL/GRN Switched Ignition
A10 BLU/WHT LF Solenoid Control
A11 BLK/BLU ABS Relay Control
B1 YEL/BLK RR WSS (Low)
B2 ORG/BLK LR WSS (Low)
B3 GRN/BLK RF WSS (Low)
B4 BLU/BLK LF WSS (Low)
B5 RED/BLK Red BRAKE Indicator Control
B6 RED/WHT Right Front Solenoid Control
B9 GRN/WHT Brakelight Switch Input
B11 BLU Lamp Driver Relay Control
B12 WHT/GRN Battery Feed
Connector C2
A BRN RF Motor (High)
B BRN/BLK RF Motor (Low)
C WHT Switched Battery
D BLK Ground
E PNK/BLK Rear Motor (Low)
F PNK Rear Motor (High)
G LT. GRN LF Motor (High)
H LT. GRN/BLK LF Motor (Low)
(1) See Fig 1.
(2) If terminal is not listed, then terminal is not used.

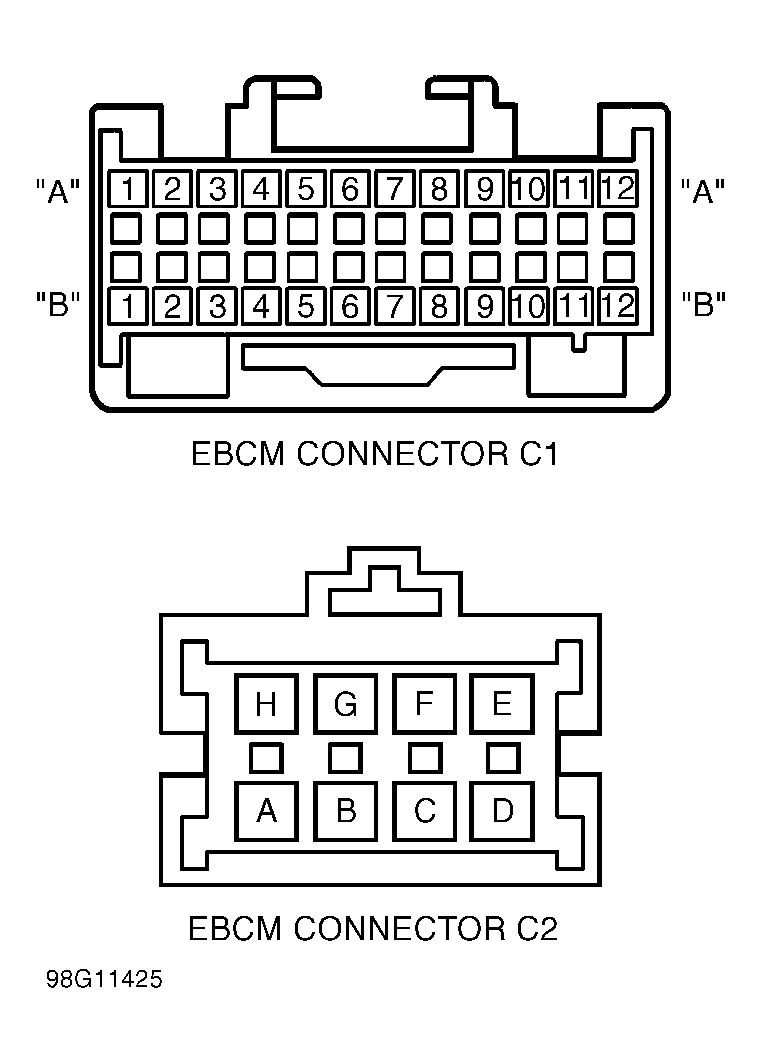

Fig 1: Identifying EBCM Connector Terminals (Metro & Firefly (Canadian))
G98G11425Courtesy of GENERAL MOTORS CORP.
