Rotor Test

  1. Using an ohmmeter, measure resistance between rotor and slip rings. Perform STEP 1. See Fig 1. If resistance is less than 5 ohms, replace rotor.
  2. Measure resistance between slip rings. Perform STEP 2. See Fig 1. If resistance is greater than 3.5 ohms, replace rotor.

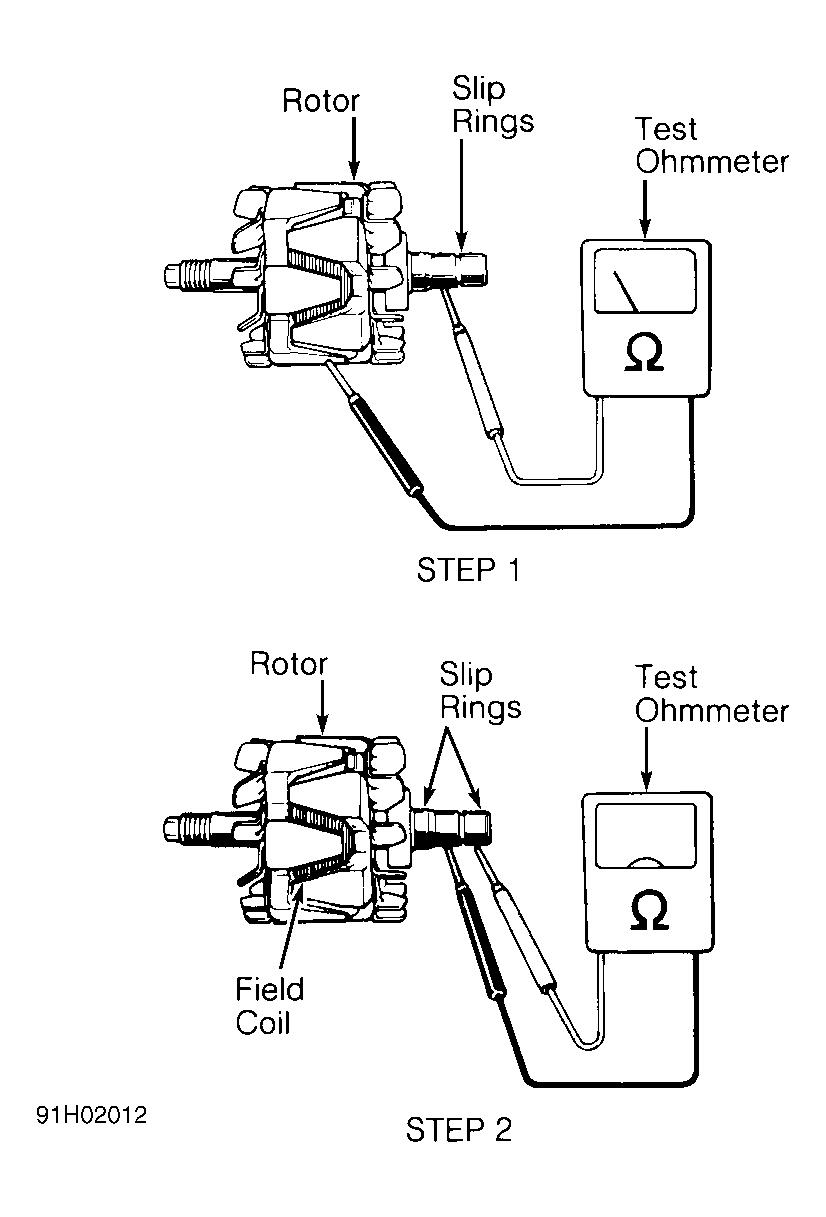

Fig 1: Testing Generator Rotor (Typical)
G91H02012Courtesy of GENERAL MOTORS CORP.
