Base Ignition Timing Specifications

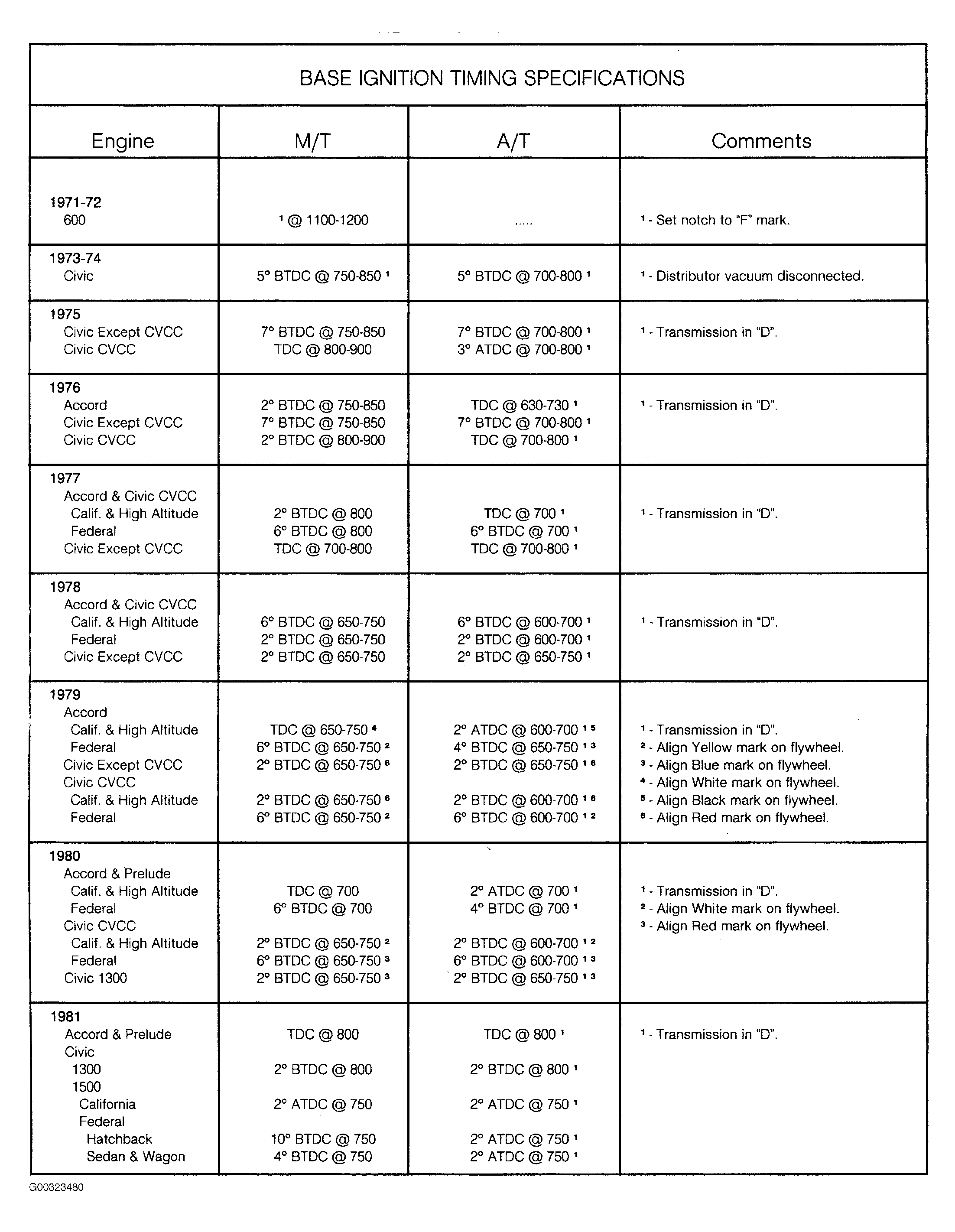

Fig 1:

G00323480

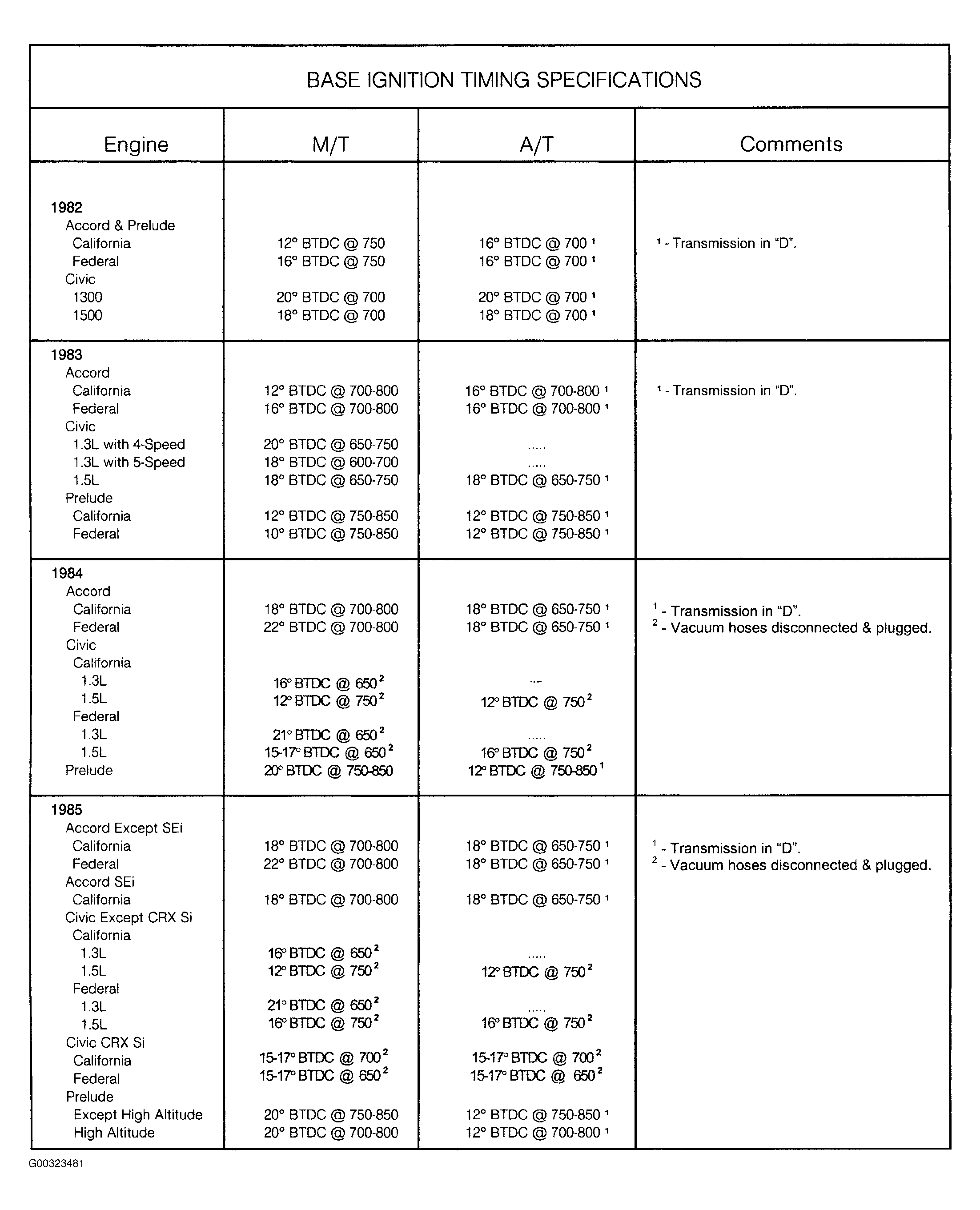

Fig 2:

G00323481

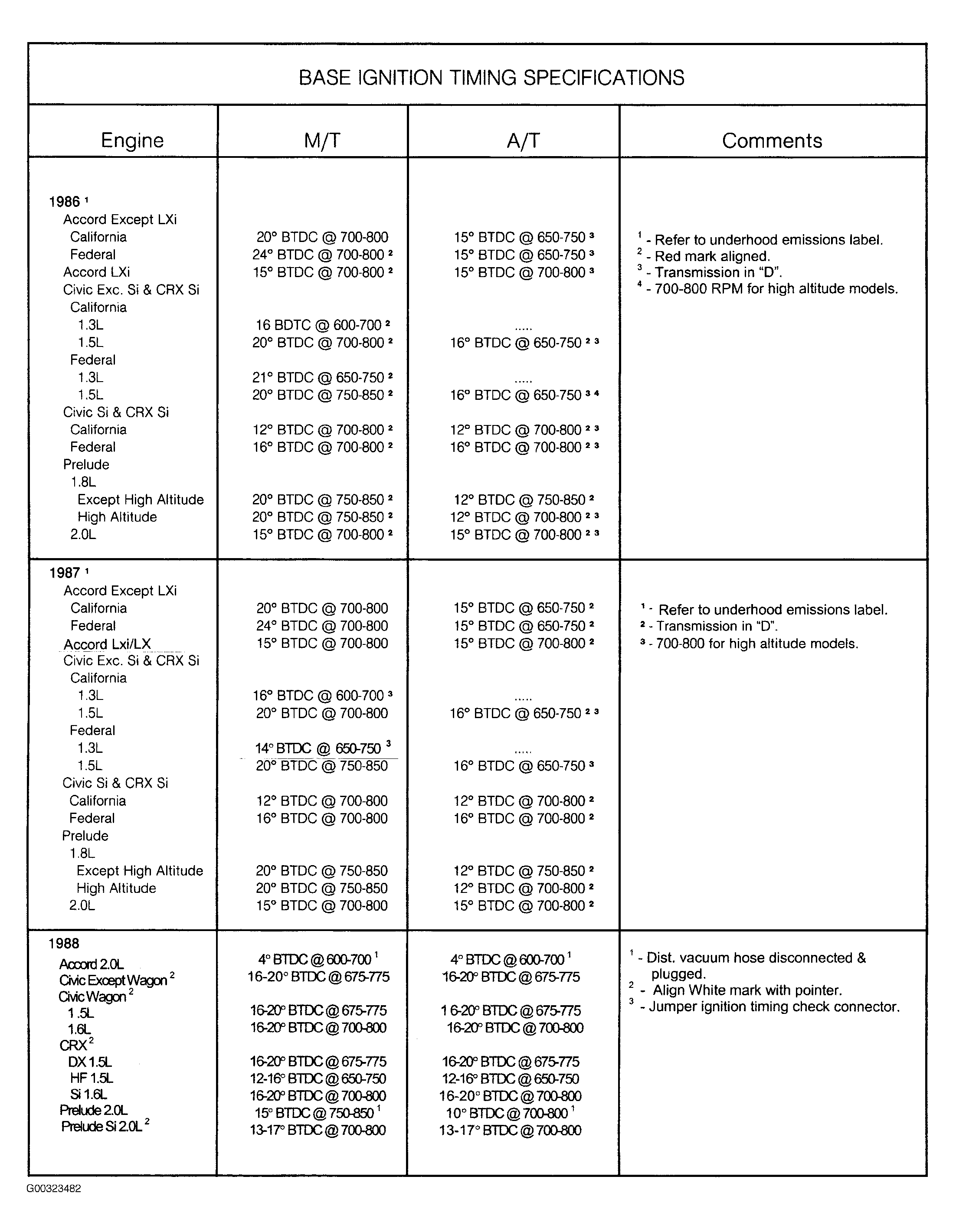

Fig 3:

G00323482

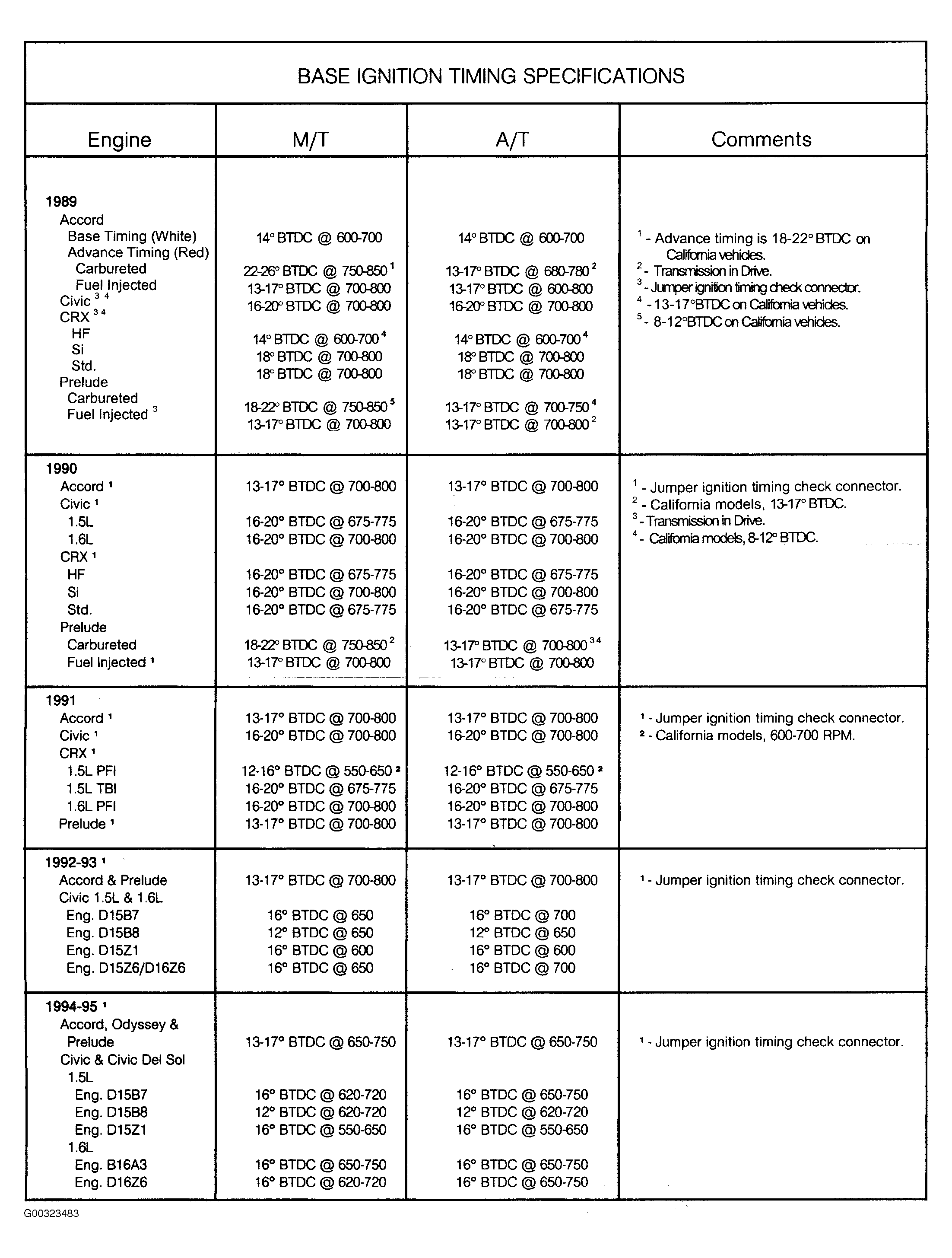

Fig 4:

G00323483

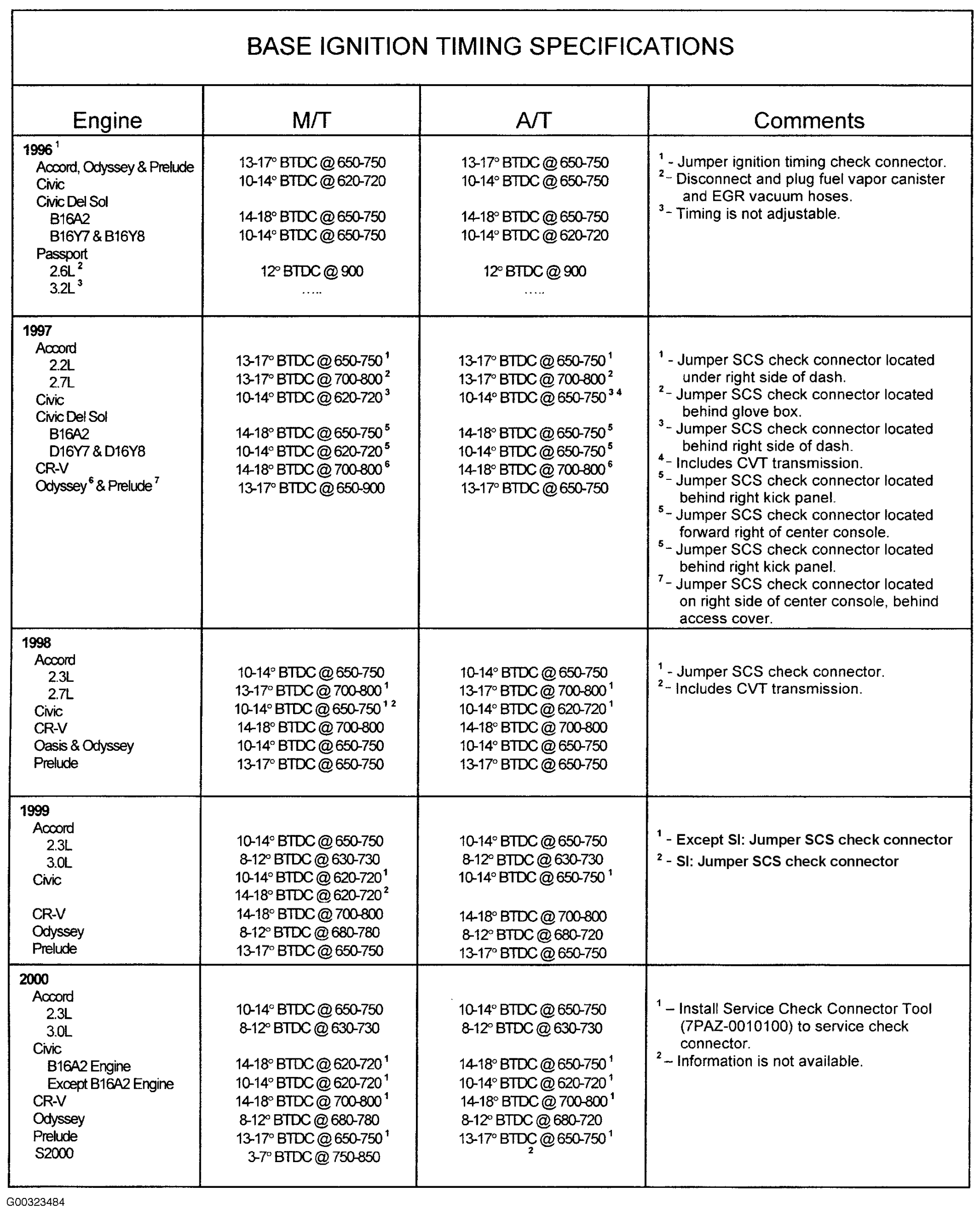

Fig 5:

G00323484

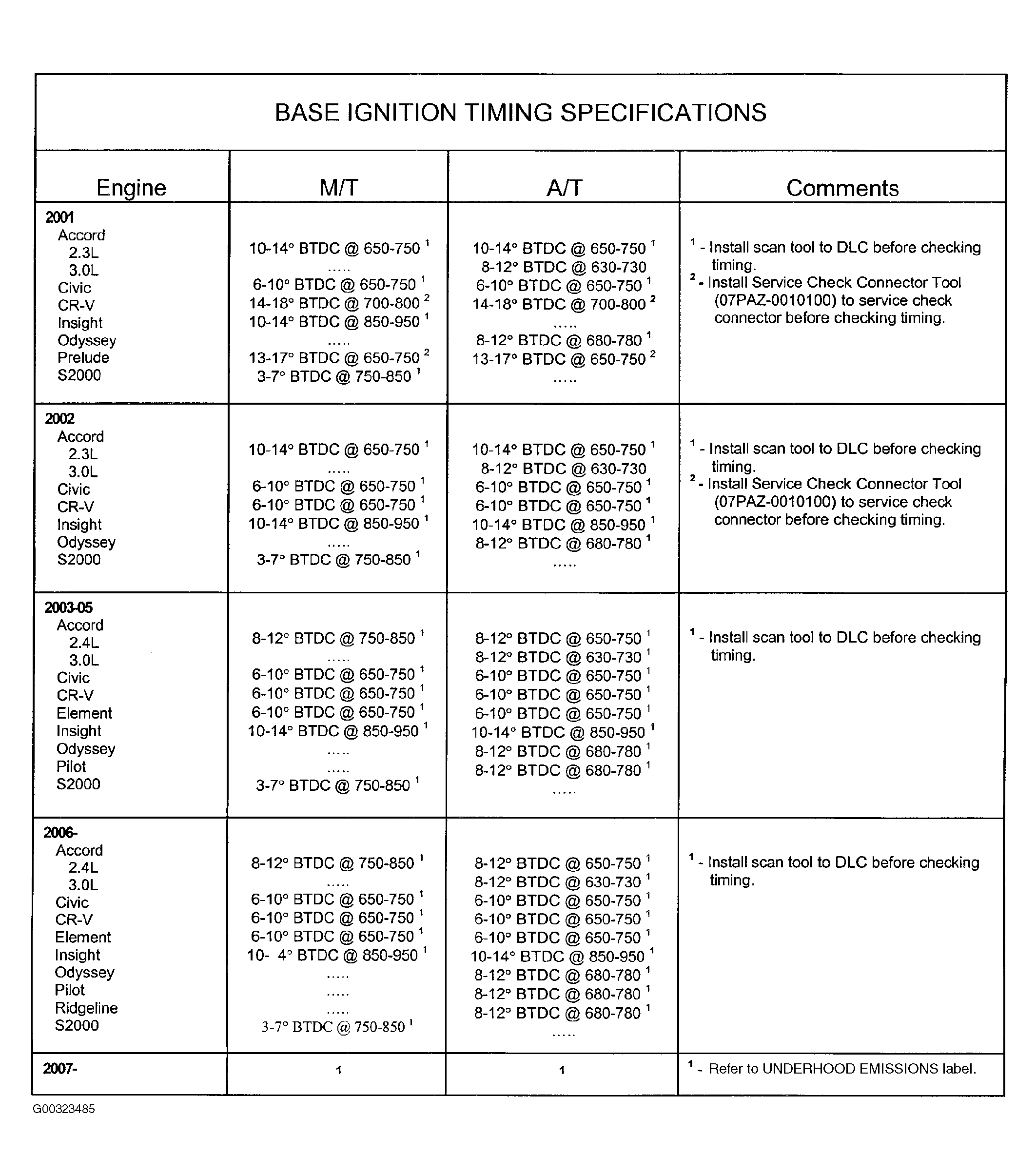

Fig 6:

G00323485
