Washer Pump Motor

Connect battery voltage and ground to the pump terminals. Washer pump should operate and spray on window. If not, repair fluid lines or replace pump.

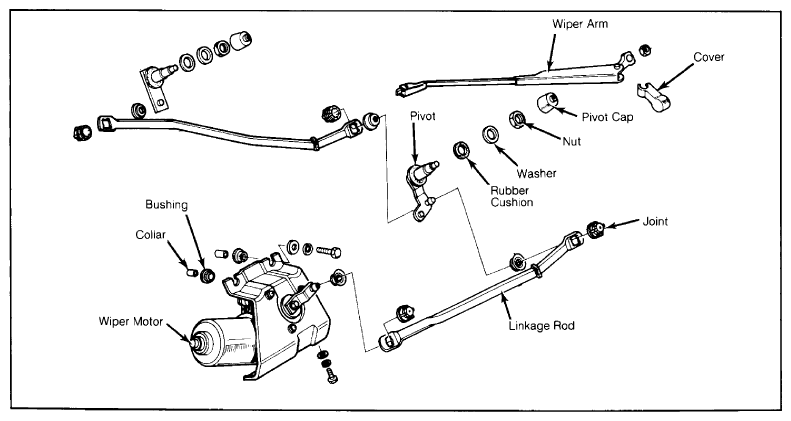

Fig 1: Exploded View of Honda Wiper Linkage (Accord Shown, Others Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
