Home >> Honda >> 1983 >> Prelude Automatic >> Repair and Diagnosis >> Engine Performance >> System >> PCV System >> Operation >> Prelude

PCV System: Operation: Prelude

During idle and low speed operation blow-by gases are returned to the intake manifold through the breather chamber and the PCV valve. When operating at wide open throttle the PCV valve opens to allow more flow to the manifold and the excess blow-by is returned to the air cleaner through the breather hose.

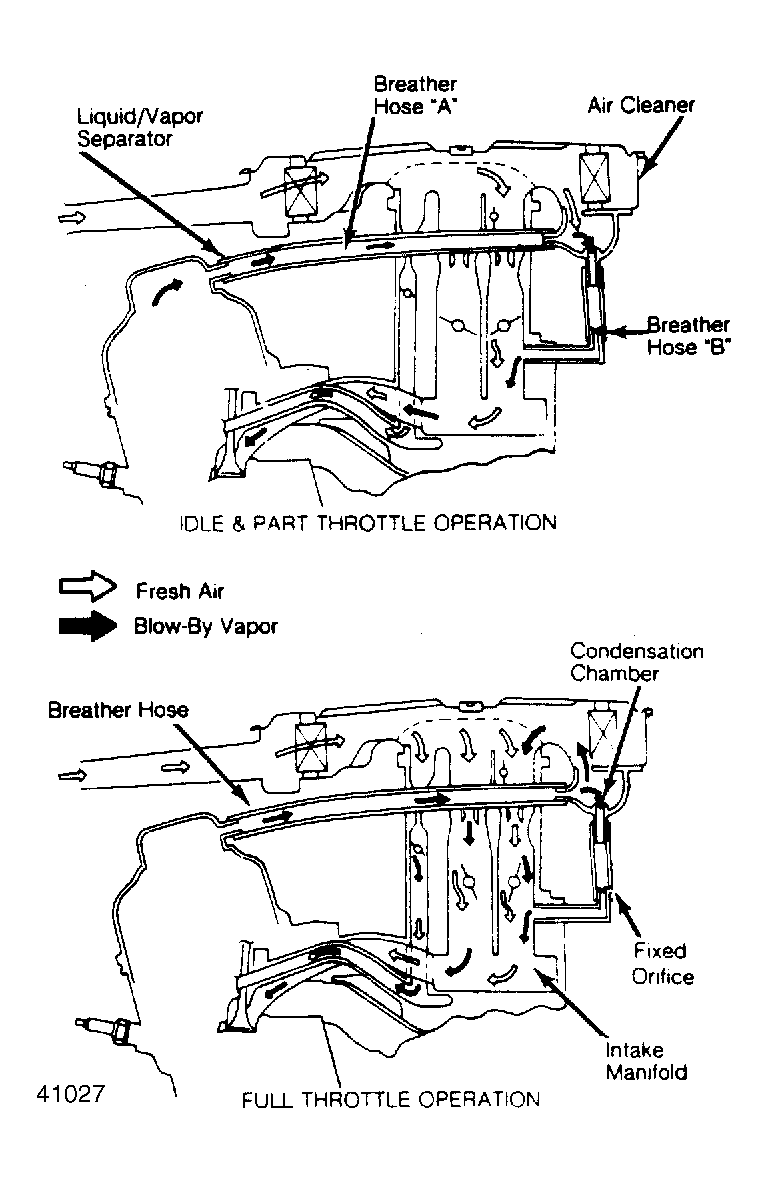

Fig 1: Crankcase Ventilation System (Accord & Civic) Note direction of flow.
G41027
