Home >> Honda >> 1985 >> Civic DX, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Electronic Control System >> Diagnosis >> Notes

Electronic Control System: Diagnosis: Notes

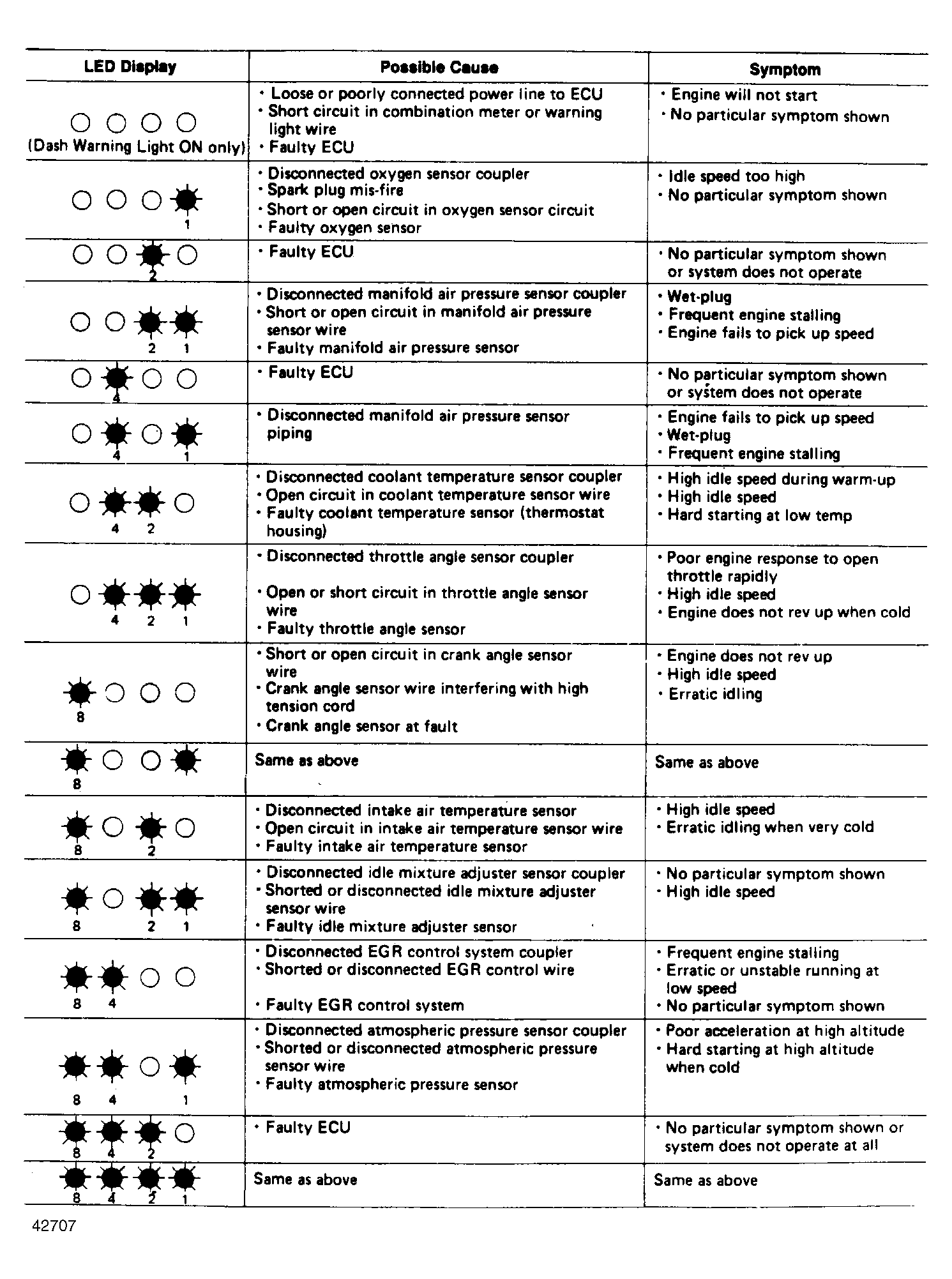

Fig 1: Honda EFI Trouble Shooting Chart

G42707

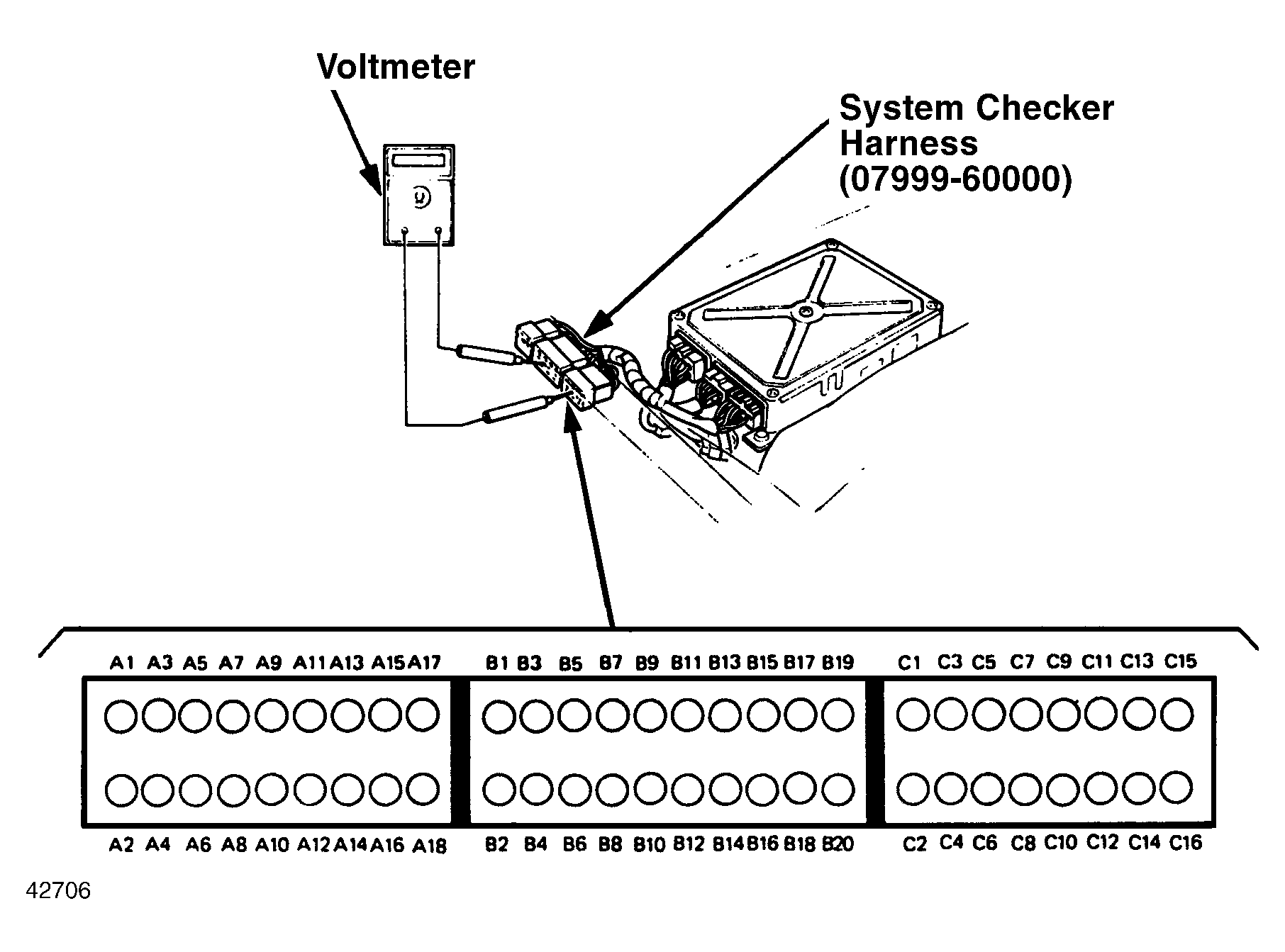

Fig 2: System Checker Harness (07999-PD60000)

G42706
