System Testing

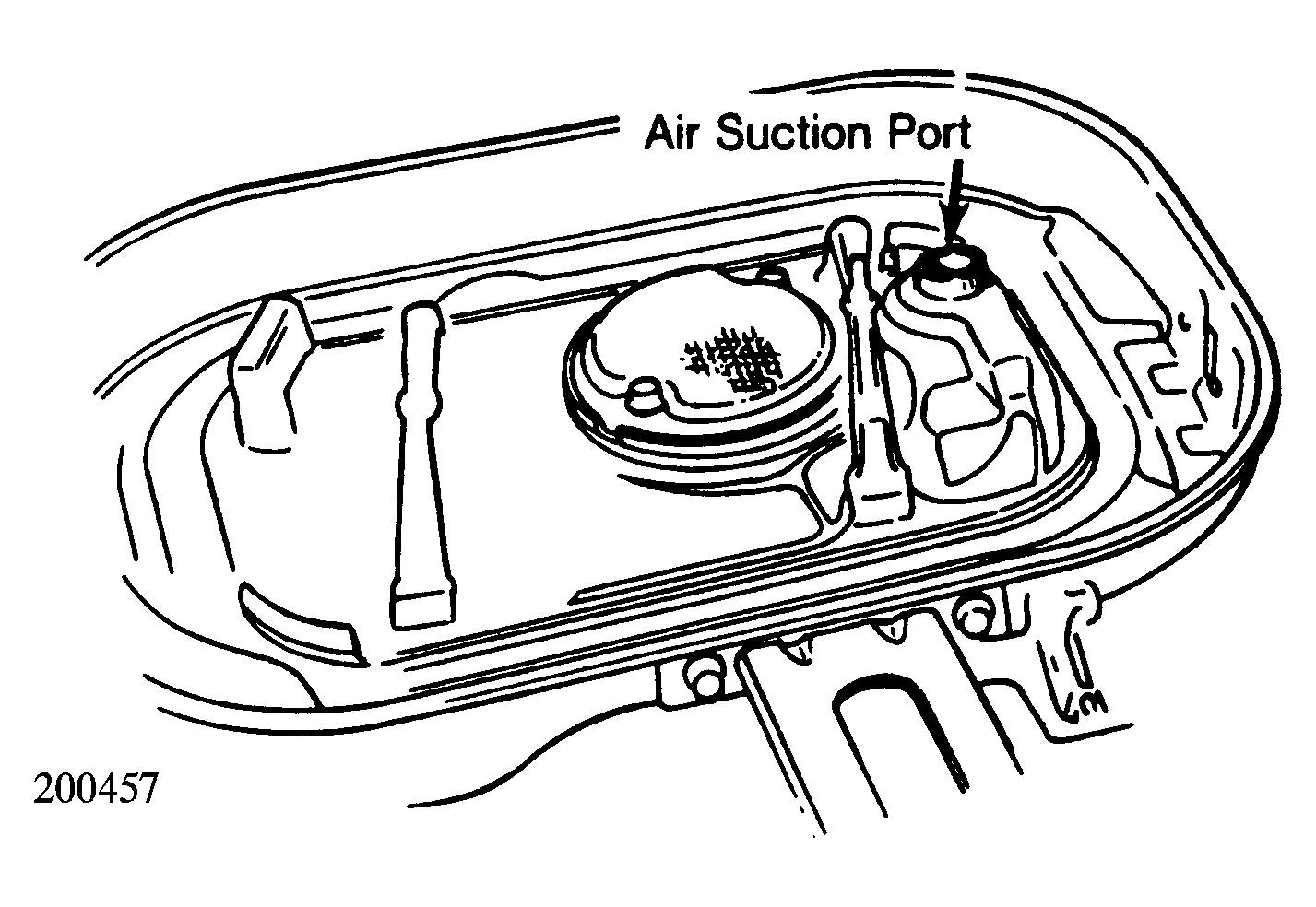

- Disconnect and plug air suction hose from air control valve B. Remove air cleaner cover and filter. Start engine and run at idle speed. Check for bubbling noise from air suction port. See Fig 2
.
- If bubbling noise is heard, proceed to step 6). If bubbling noise is not heard, disconnect hose No. 5 from air suction valve and check for vacuum. If vacuum is present, replace air suction valve and retest. If vacuum is not present, reconnect hose No. 5.
- Disconnect hose No. 15 from control box at vacuum hose manifold and check for vacuum at vacuum hose manifold. If there is no vacuum, check vacuum hose No. 24. If okay, replace air bleed valve A and retest.

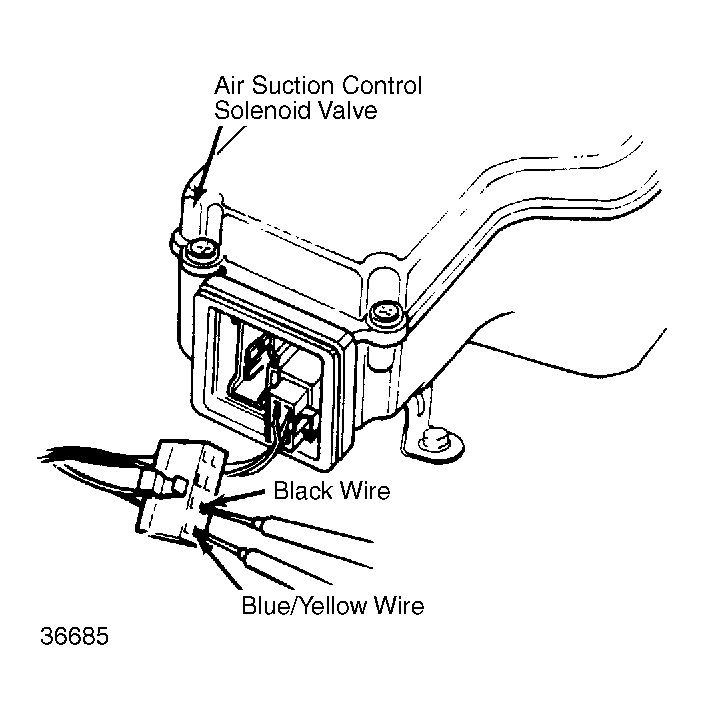

- If vacuum is present, check for voltage at air suction control solenoid valve Blue/Yellow wire. If voltage is not present, check speed sensor, thermosensor and vacuum switch B (man. trans.). Check vacuum switch C. Remove control box cover.

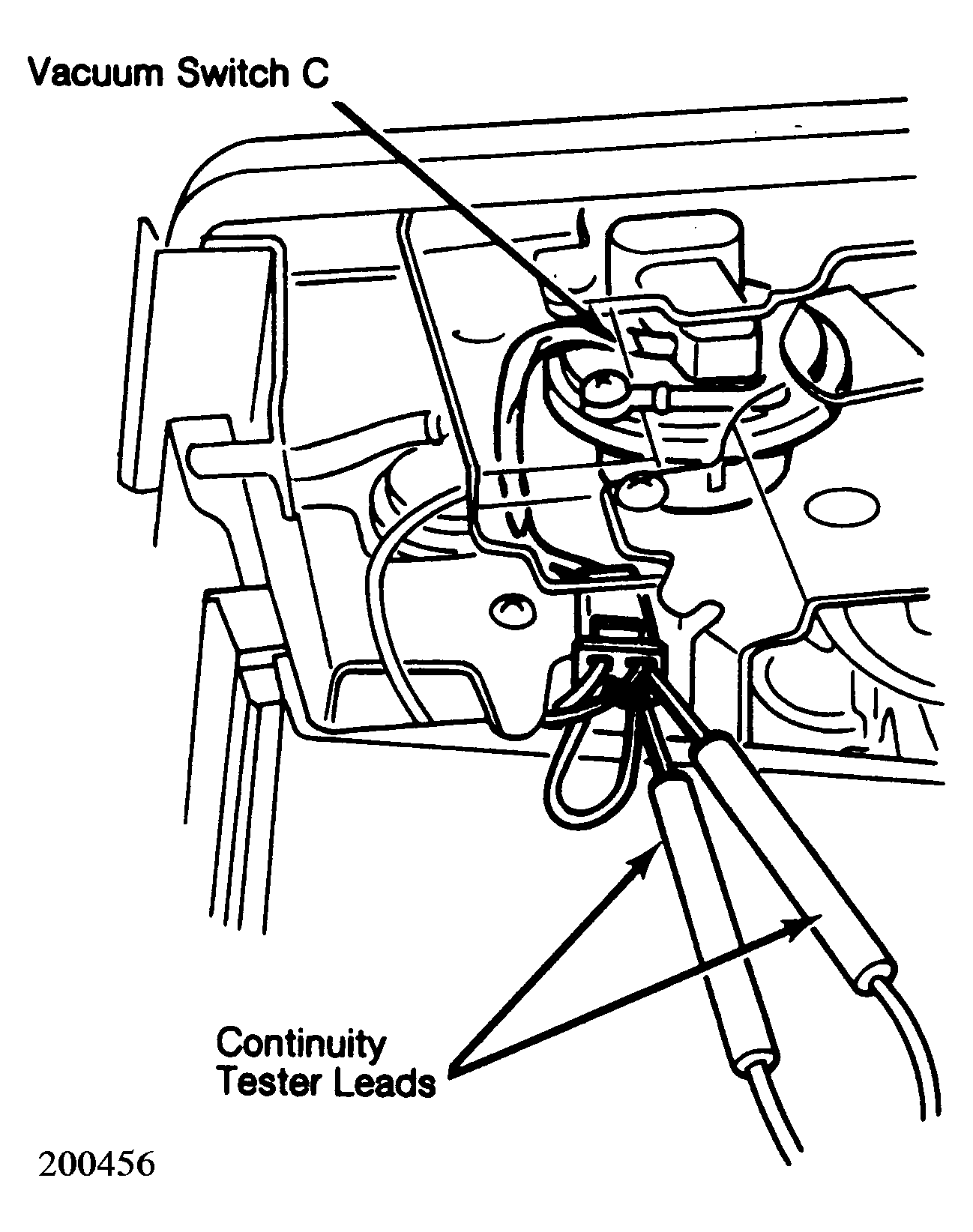

- Check for continuity at vacuum switch C terminals with engine at idle speed. See Fig 2
. If continuity is present, replace air suction control solenoid valve and retest. If there is no continuity, ensure No. 20 vacuum hose is clear. Replace vacuum switch C and retest.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Heat air bleed valve A to 140°F (60°C). Ensure bubbling noise stops. If bubbling noise continues, replace air bleed valve. Allow air bleed valve to cool before proceeding.
- Disconnect hose No. 20 from control box at vacuum hose manifold. If bubbling noise stops, system is okay. If bubbling noise continues, disconnect hose No. 5 from air suction cut-off diaphragm and check for vacuum. If there is no vacuum, replace air suction cut-off diaphragm and retest.
- If vacuum is present, disconnect vacuum hose from vacuum switch C. Check for continuity between terminals of vacuum switch C. If continuity is present, replace vacuum switch C and retest. Disconnect vacuum hose No. 7 at vacuum hose manifold. Attach vacuum pump to hose.
- With engine at 2000 RPM, apply at least 2.4 in. Hg to hose. Bubbling noise should discontinue. If bubbling noise stops, system is functional and test is complete. If bubbling noise continues, check speed sensor, thermosensor and vacuum switch B (man. trans.). Check vacuum switch C.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
