Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Delay Unit (EFI) | Behind dash, below blower motor. | |

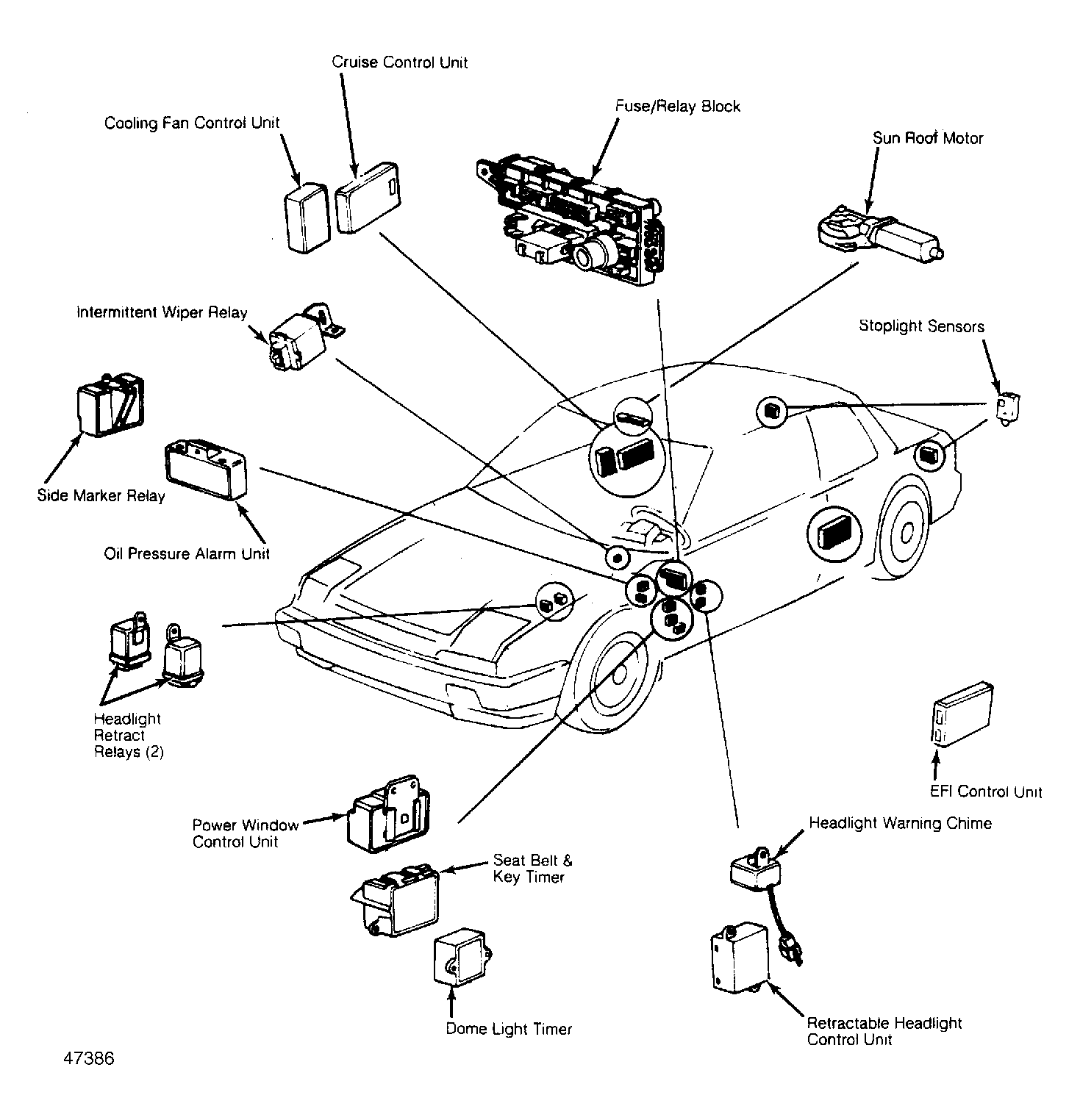

| Cooling Fan Control Unit | In passenger compartment, behind right quarter panel trim. See Figure . | |
| Cruise Control Unit | In passenger compartment, behind right quarter panel trim. See Figure . | |
| EFI Control Unit | In left rear quarter panel. See Figure . | |
| Emission Control Unit | ||
| Carbureted | Behind right kick panel. | |
| Electronic Fuel Injection (EFI) | Behind left rear quarter panel. | |
| Retractable Headlight Control Unit | In left kick panel. See Figure . | |
| Power Window Control Unit | Behind left side of dash, at kick panel. See Figure . | |
| Side Marker Control Unit | Behind and above dash fuse/relay block. | |
