Home >> Honda >> 1988 >> Prelude S, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Throttle Control System >> Adjustments >> Dashpot Rpm

Dashpot Rpm

DASHPOT RPM ADJUSTMENT

Application RPM
Accord 1400-2000
Prelude
Automatic 1400-2400
Manual 1700-2700
Fig 1: Dashpot RPM Adjustment Location (Prelude)
G93774Courtesy of AMERICAN HONDA MOTOR CO., INC.

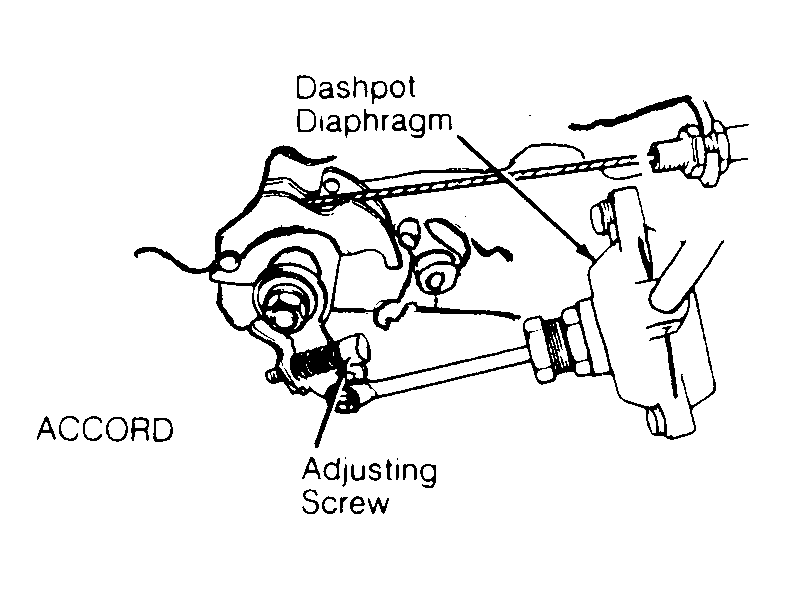

Fig 2: Dashpot RPM Adjustment Location (Accord)
G93782Courtesy of AMERICAN HONDA MOTOR CO., INC.
