Spark Plugs

SPARK PLUG TYPE

Application	NGK
Civic & CRX	BCPR6EY-N11

SPARK PLUG SPECIFICATIONS

Gap - In. (mm)	Torque - Ft. Lbs. (N.m)
.039-.043 (1.0-1.1)	13 (18)

IGNITION TIMING (Degrees BTDC @ RPM)

Application

Setting

Civic

16-20 @ 700-800

CRX

Std

18 @ 700-800

Si

18 @ 700-800

HF ⁽¹⁾

14 @ 600-700

⁽¹⁾	550-650 RPM on California vehicles.

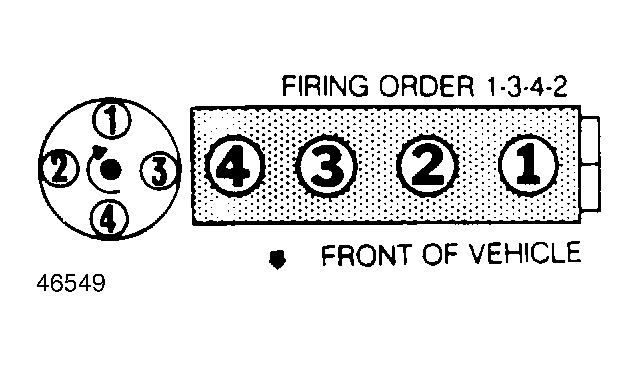

Fig 1: Firing Order & Distributor Rotation

G46549

Courtesy of AMERICAN HONDA MOTOR CO., INC.

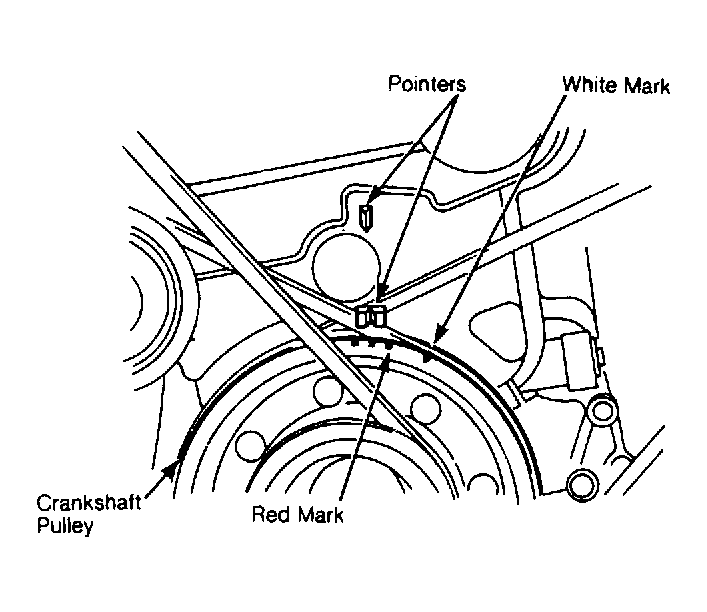

Fig 2: Ignition Timing Mark Location

G117889

Courtesy of AMERICAN HONDA MOTOR CO., INC.
