Spark Plugs

SPARK PLUG TYPE

Application	NGK
Carbureted	BCPR5EY-N11
Fuel Injected	BCPR6EY-N11

SPARK PLUG SPECIFICATIONS

Application	Gap In. (mm)	Torque Ft. Lbs. (N.m)
All Models	.039-.043 (1.0-1.1)	13 (18)

IGNITION TIMING (Degrees BTDC @ RPM)

Application

Setting

Carbureted

Automatic Transaxle ⁽²⁾

13-17 @ 700-750

Manual Transaxle ⁽³⁾

18-22 @ 750-850

Fuel Injected

Automatic Transaxle ⁽¹⁾

13-17 @ 700-800

⁽¹⁾	Auto. trans. in Drive.

⁽²⁾	8-12 degrees BTDC on California vehicles.

⁽³⁾	13-17 degrees BTDC on California vehicles.

Fig 1: Firing Order & Distributor Rotation (Carbureted)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

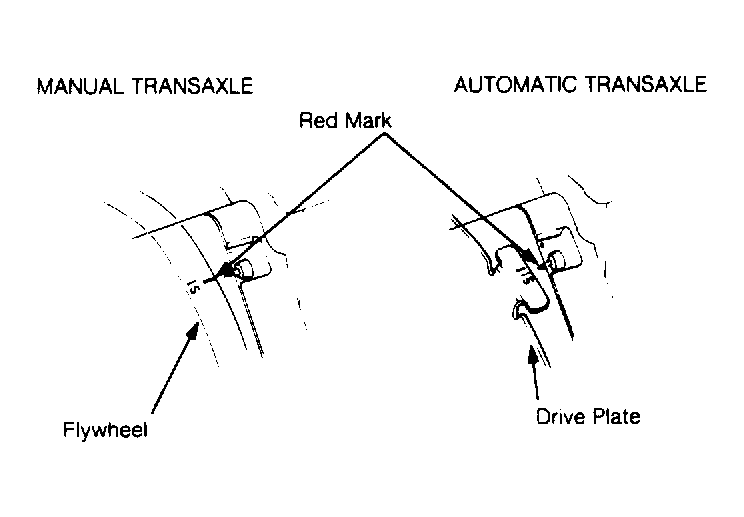

Fig 2: Ignition Timing Mark Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
