Code 3 - Map Sensor Circuit

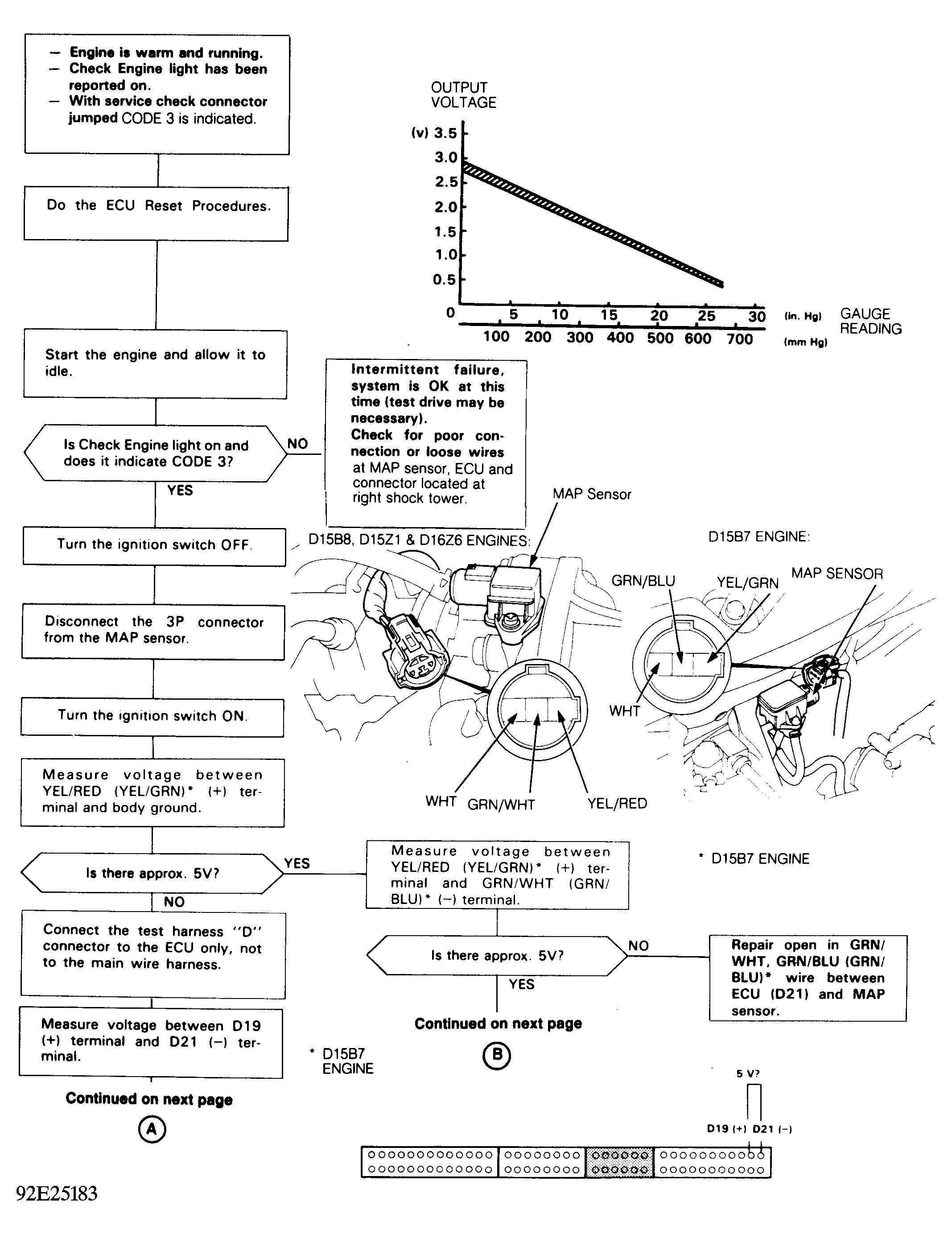

Fig 1: Code 3 Chart (1 Of 2) - MAP Sensor CKT.

G92E25183

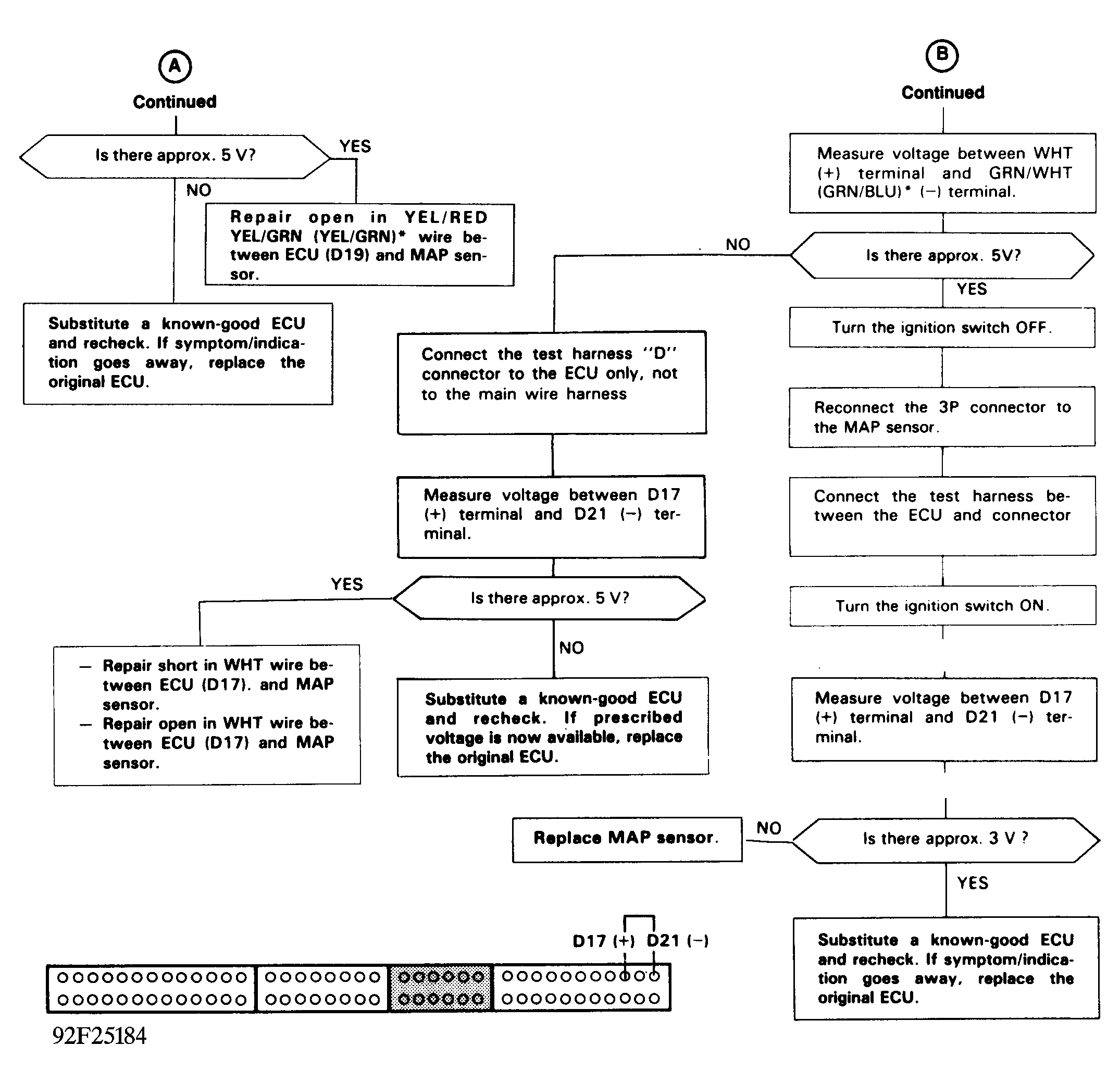

Fig 2: Code 3 Chart (2 Of 2) - MAP Sensor CKT.

G92F25184
