Code 3 - Map Sensor Circuit
Code 3 - Map Sensor Circuit

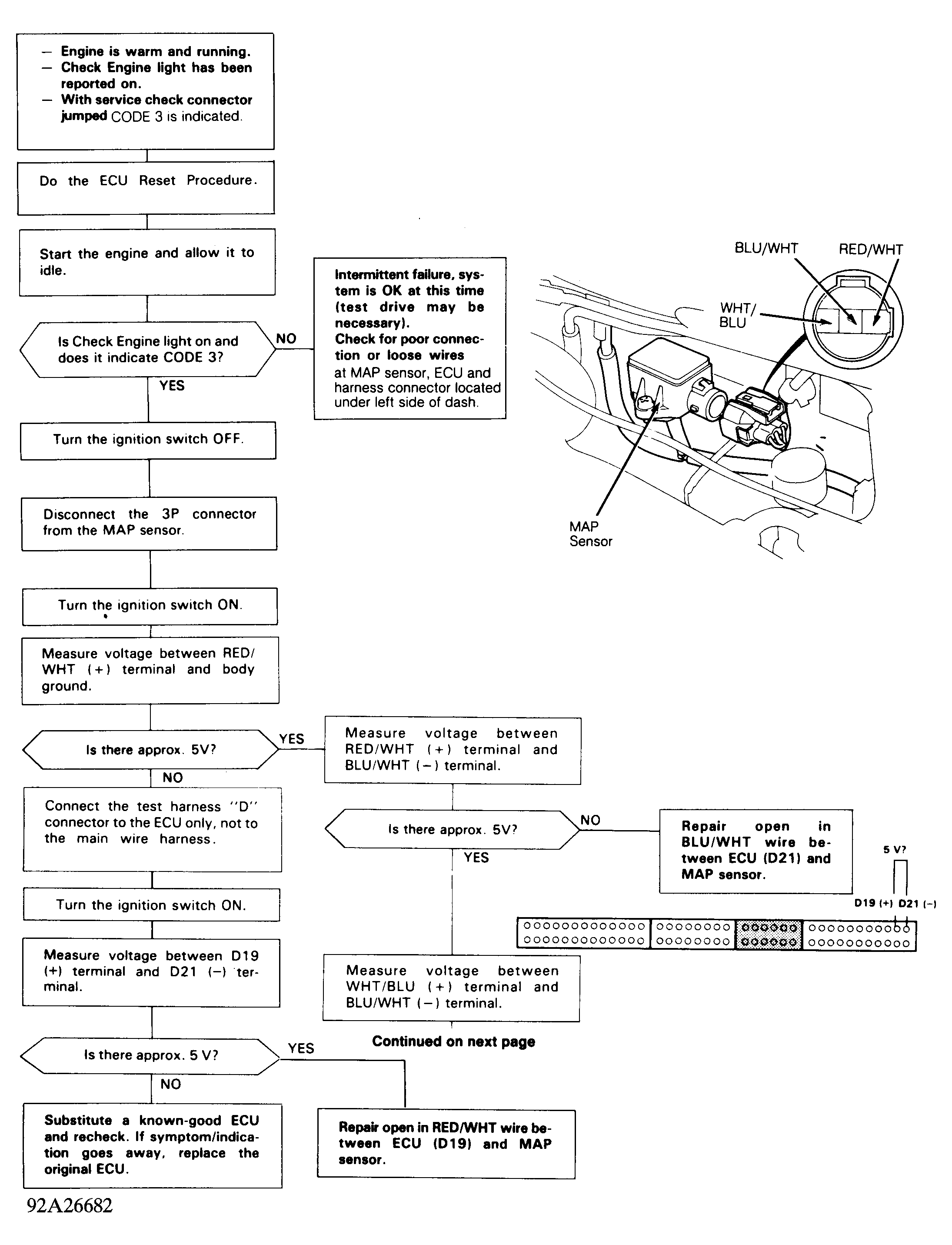

Fig 1: Code 3 Chart (1 Of 2) - Map Sensor Circuit

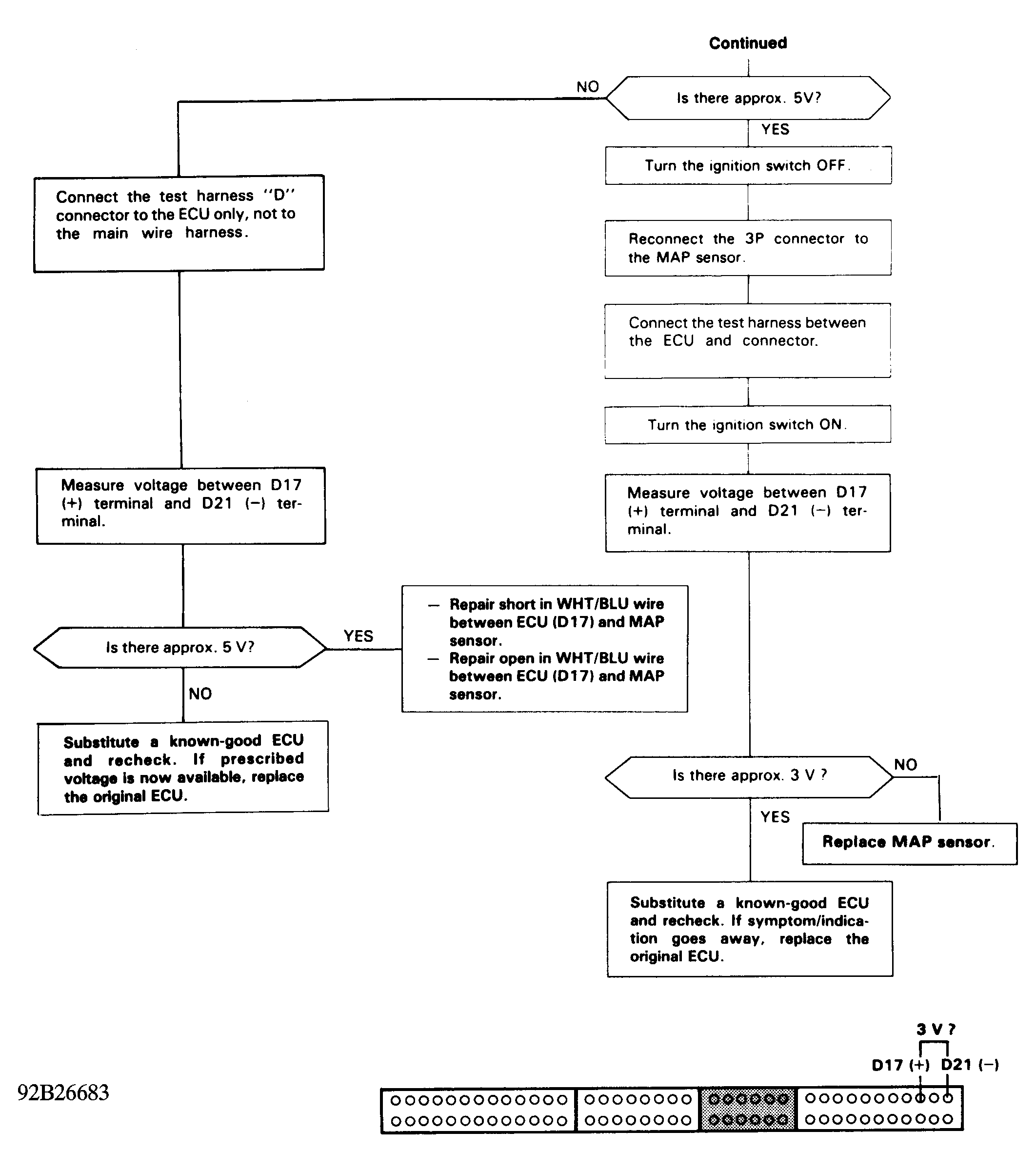

Fig 2: Code 3 Chart (2 Of 2) - Map Sensor Circuit
