Code 7 - Throttle Angle Sensor Circuit

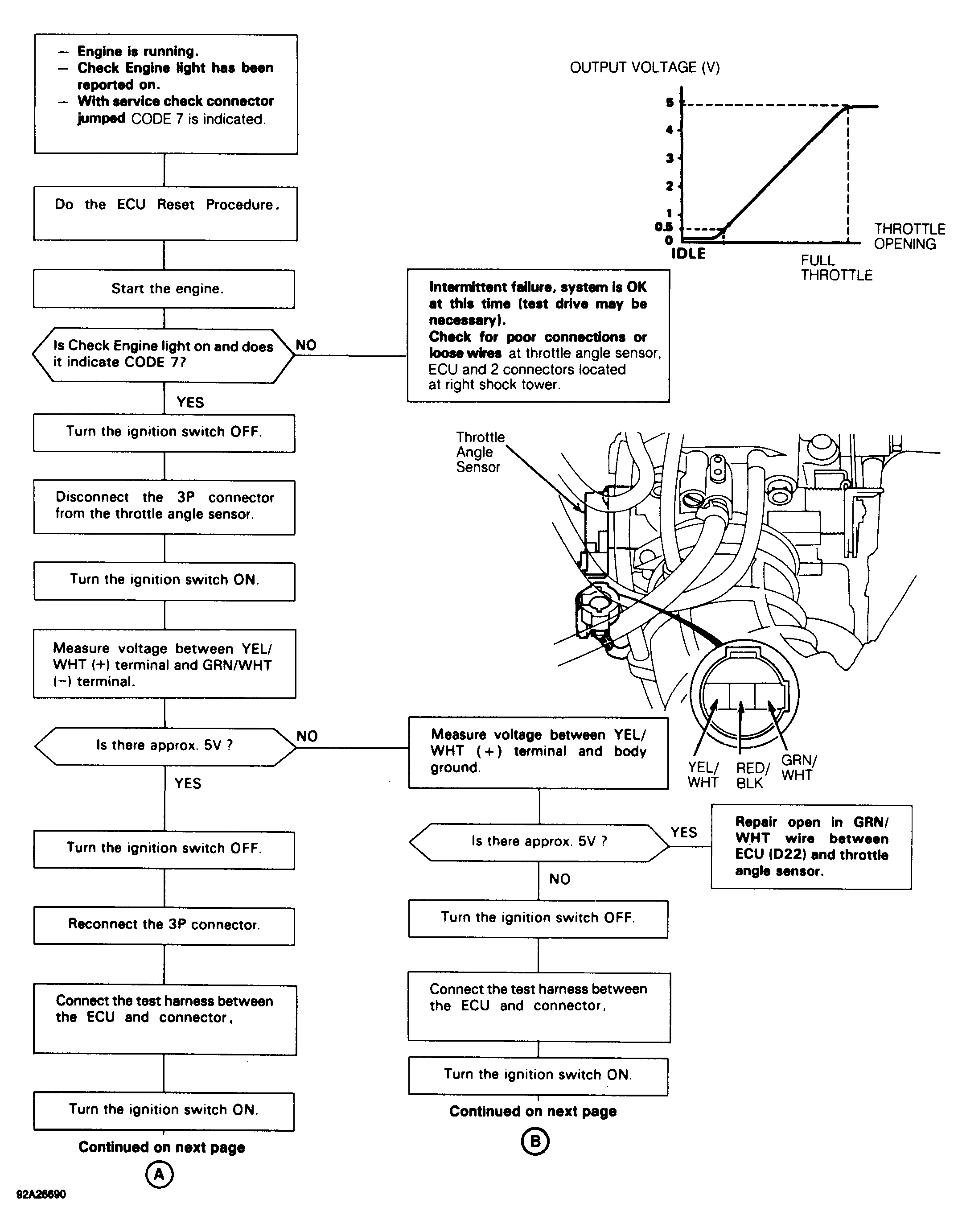

Fig 1: Code 7 Chart (1 Of 2) - Throttle Angle Sensor CKT.

G92A26690

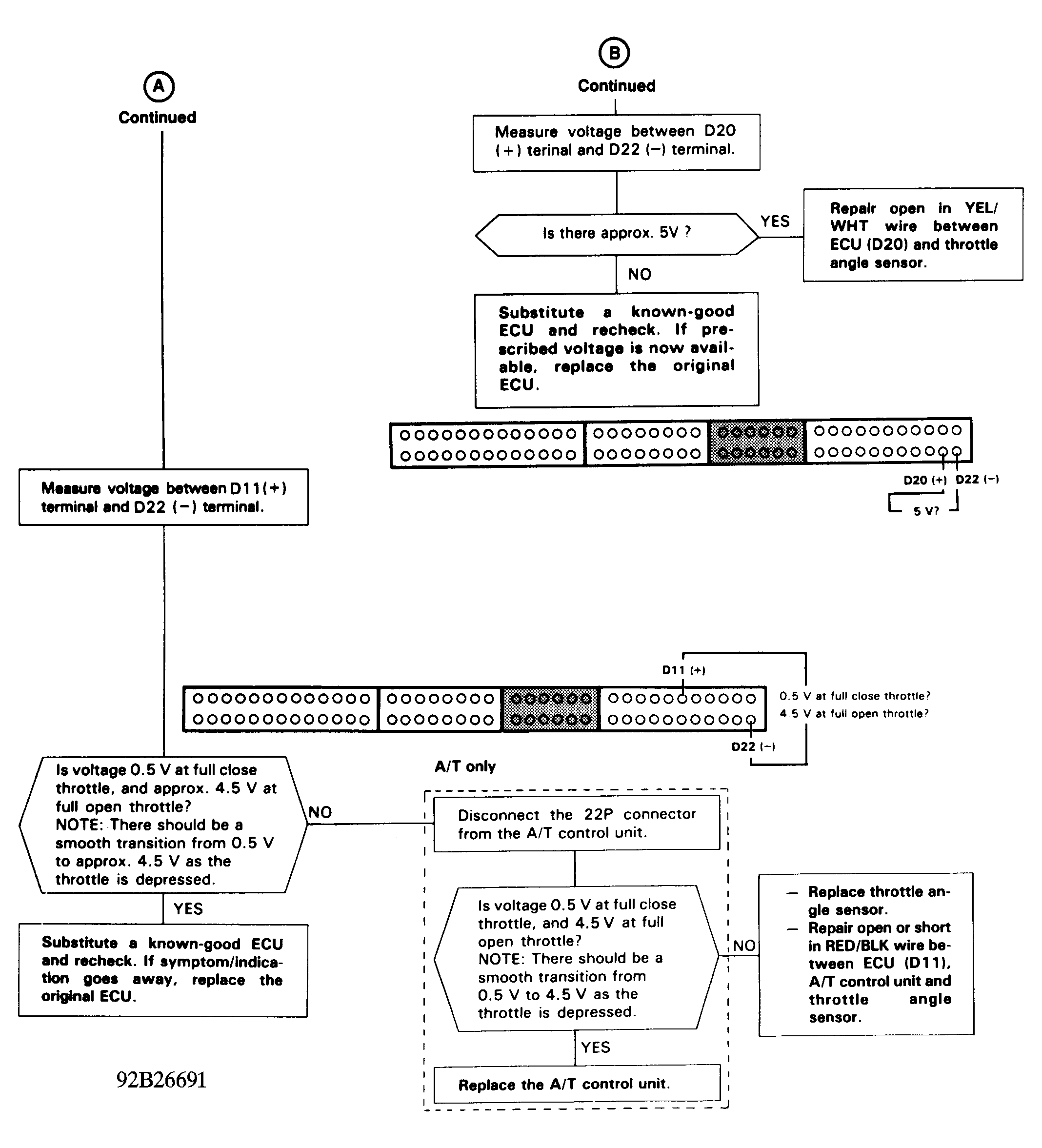

Fig 2: Code 7 Chart (2 Of 2) - Throttle Angle Sensor CKT.

G92B26691
