Overrunning Clutch Test

  1. Rotate overrunning clutch on shaft. See Fig 1. If clutch does not lock when rotated in one direction and rotate smoothly in the other direction, replace overrunning clutch assembly.
  2. Inspect starter drive gear for wear or damage. If gear is damaged, replace overrunning clutch assembly. Drive gear is not available separately.
NOTE: If starter drive gear teeth are damaged, check condition of flywheel or torque converter ring gear.

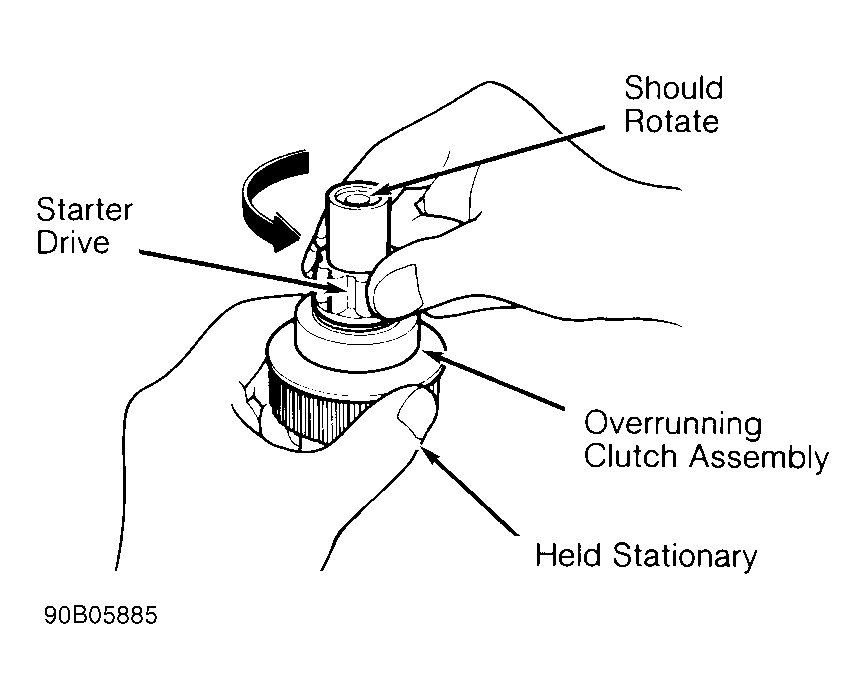

Fig 1: Testing Overrunning Clutch
G90B05885Courtesy of AMERICAN HONDA MOTOR CO., INC.
