Code 3 - Map Sensor Circuit

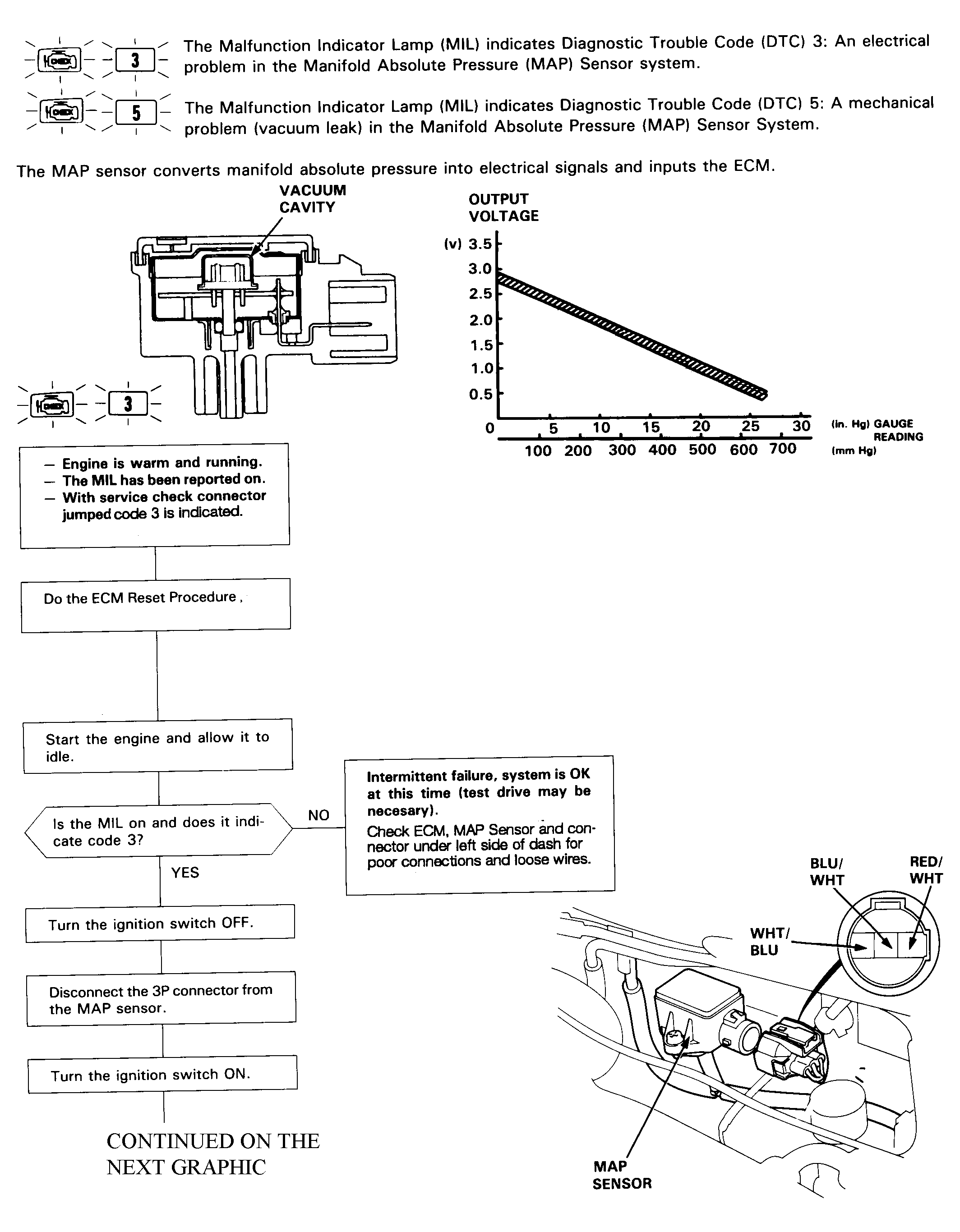

Fig 1: Code 3 Flow Chart (1 Of 3) MAP Sensor Circuit

G93G79000

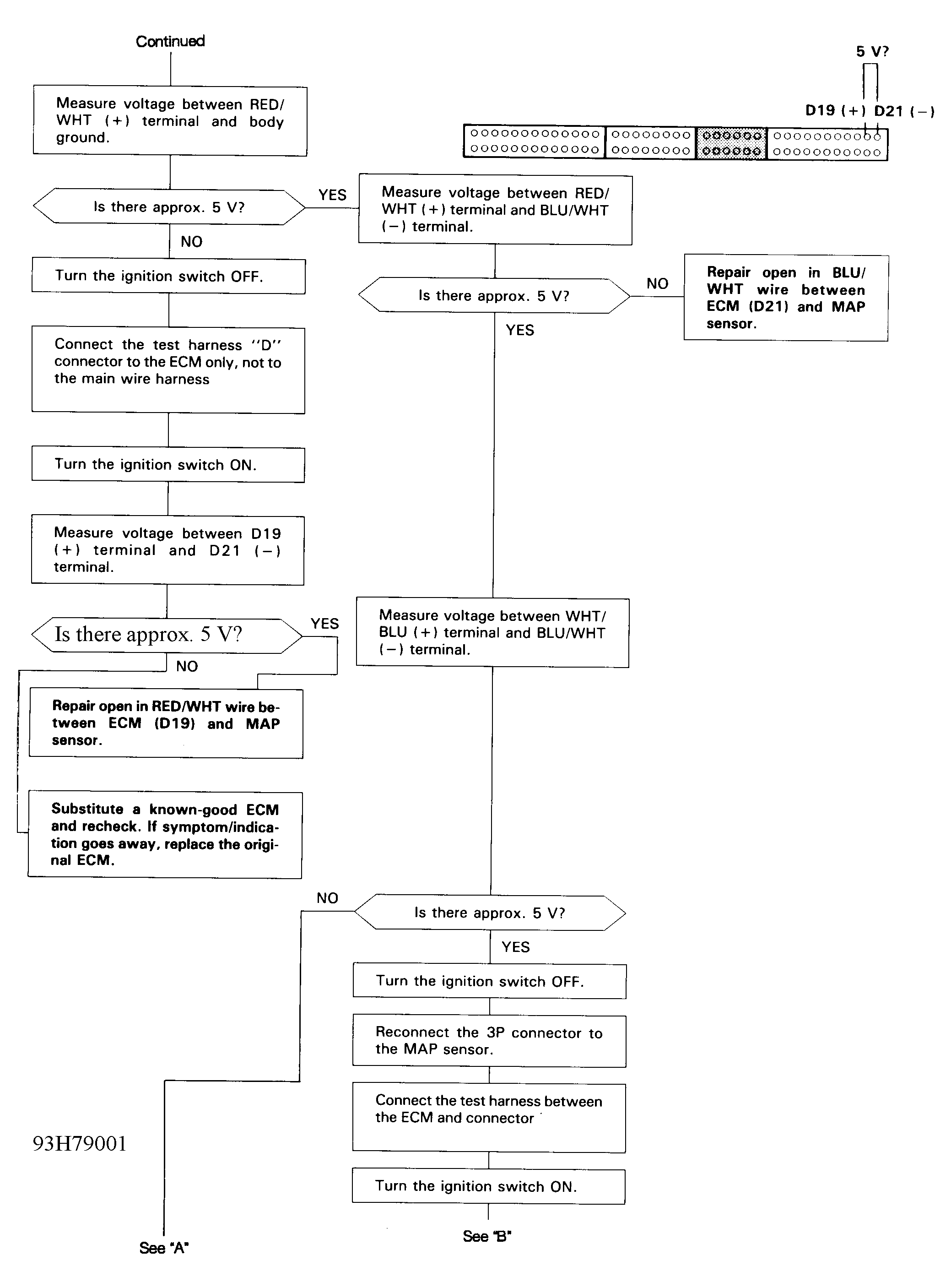

Fig 2: Code 3 Flow Chart (2 Of 3) MAP Sensor Circuit

G93H79001

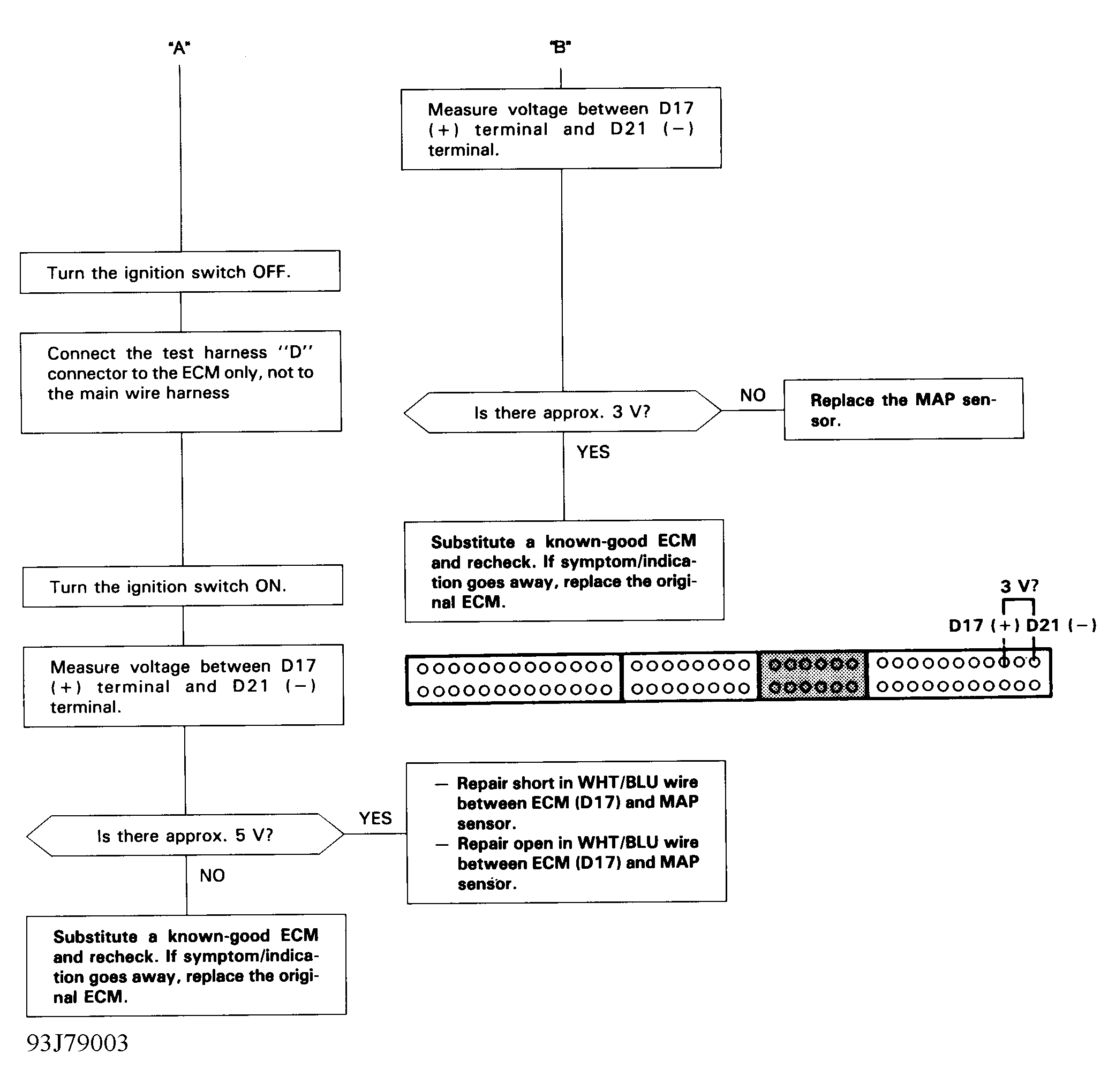

Fig 3: Code 3 Flow Chart (3 Of 3) MAP Sensor Circuit

G93J79003
