Switch Input Tests

NOTE: Some wires have been assigned a superscript to distinguish them from other wires of the same color. For example, Yellow/Green(1) wire is not the same as Yellow/Green(2) wire.

Turn ignition off. Remove driver's door panel. Unplug connectors from master switch. Using a DVOM, perform appropriate switch input tests. See Fig 1 or Fig 2 . If all input test results are okay, inspect connector and terminals for damage and proper fit. If connector is okay and power windows still malfunction, replace master switch.

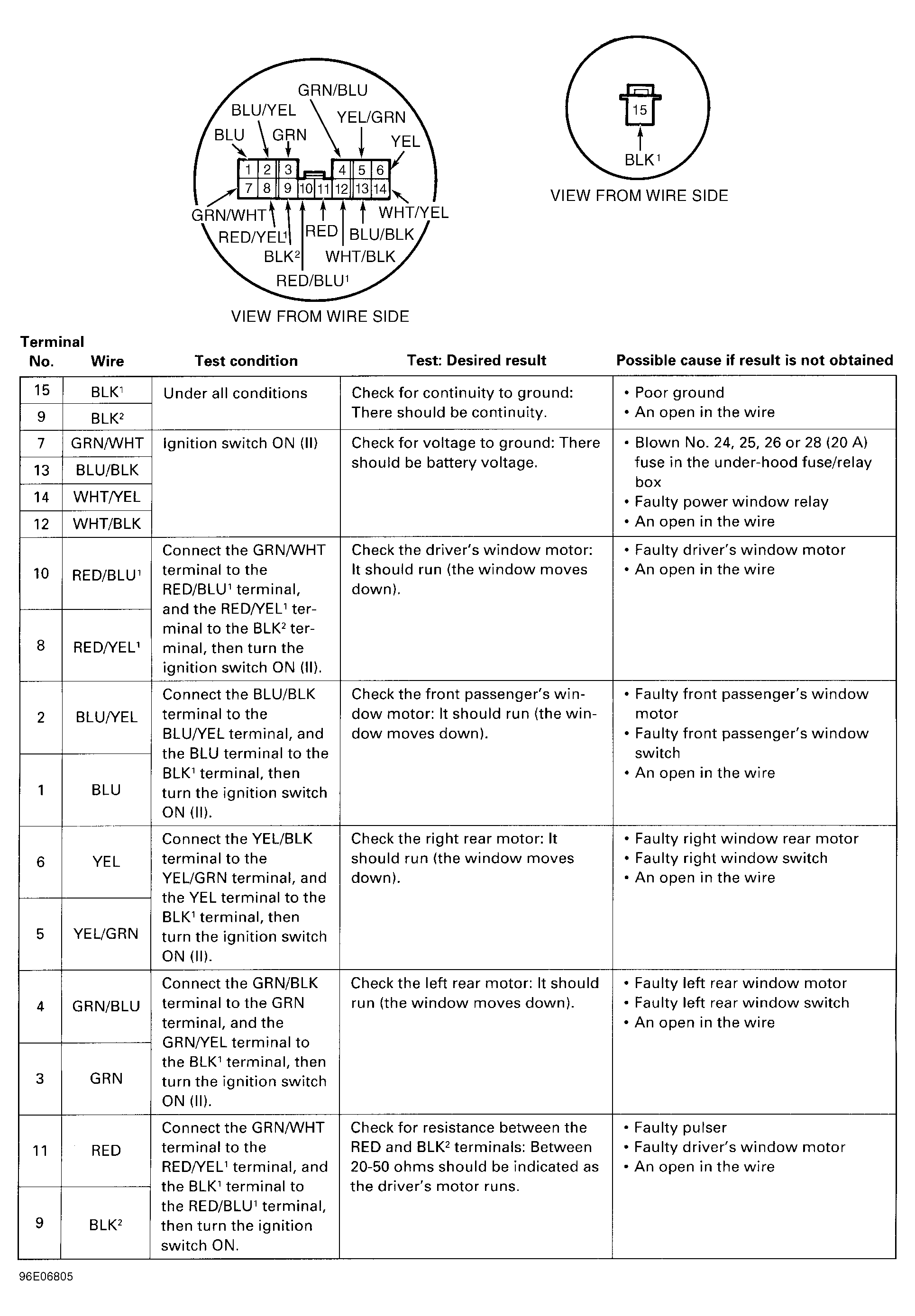

Fig 1: Switch Input Test (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

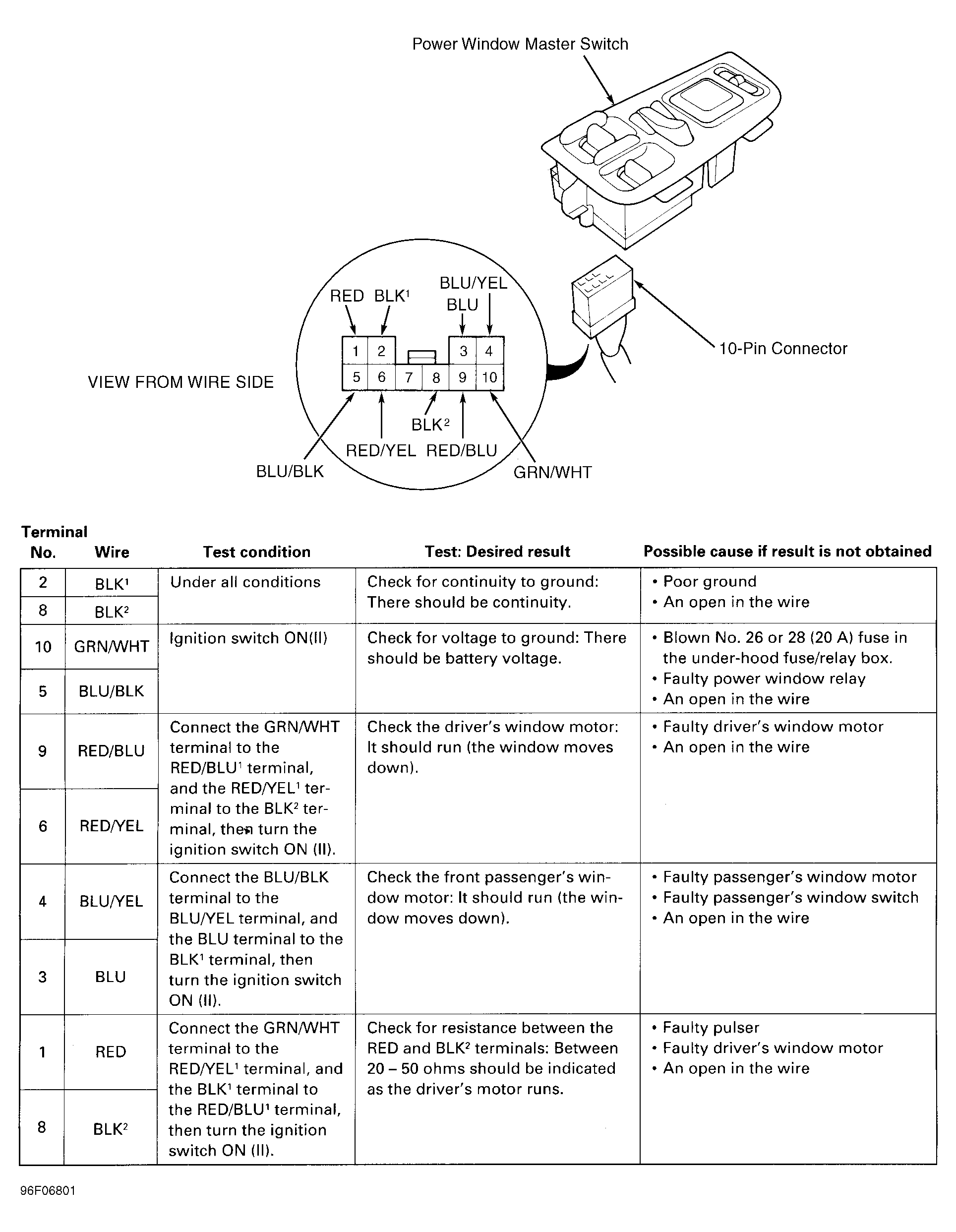

Fig 2: Switch Input Test (Sedan/Wagon)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
