Anti-Lock Brake System: Description

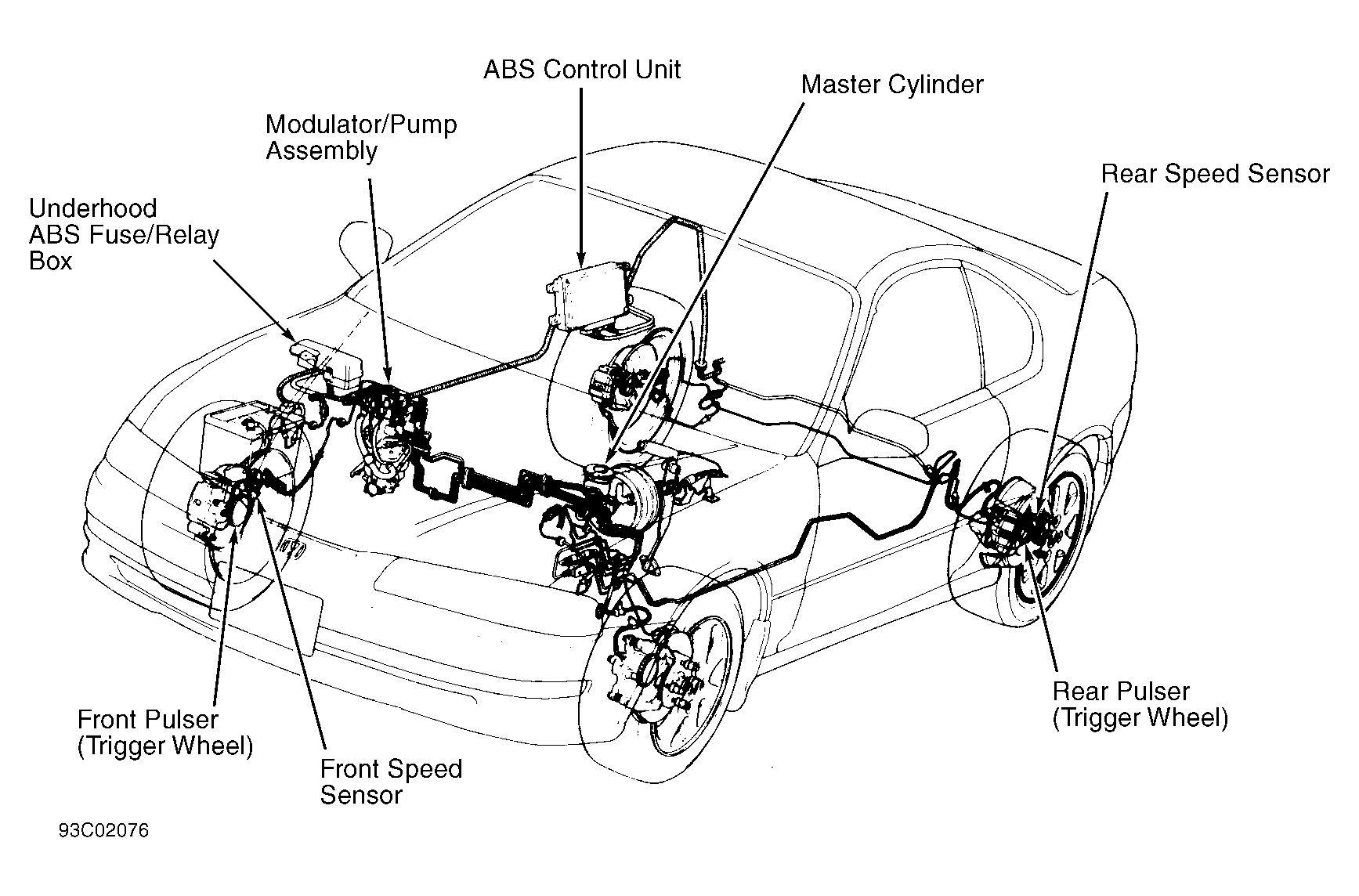

The Anti-Lock Brake System (ABS) is designed to prevent wheel lock-up during hard braking, allowing driver to maintain vehicle control. System consists of control unit, accumulator, ABS pump (power unit), 4 speed sensors, modulator, warning light, master cylinder, power booster assembly and connecting wiring. See Fig 1 .
NOTE:
For more information on brake system, see BRAKE SYSTEM
article.
