Ignition Switch Test

  1. Remove lower instrument panel cover and driver's side knee bolster.
  2. Disconnect 6-pin connector from dash fuse box and 3-pin connector from main wire harness. See Fig 1 . Use an ohmmeter to check continuity at connector terminals with switch in indicated position. If continuity is not as specified, replace ignition switch.

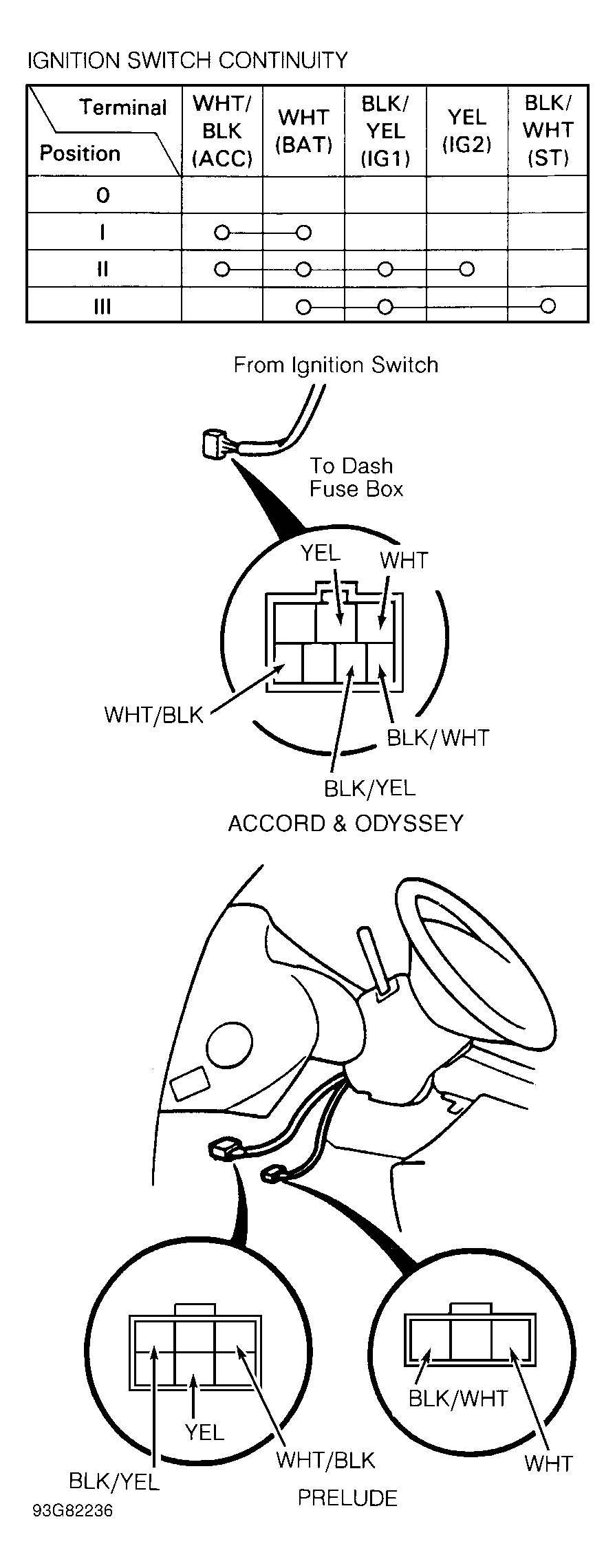

Fig 1: Testing Ignition Switch Continuity
G93G82236Courtesy of AMERICAN HONDA MOTOR CO., INC.
