Repair and Diagnosis: Electrical: Starter: Overhaul

NOTE: For starter overhaul, refer to exploded view of starter. See Fig 1 or Fig 2 .

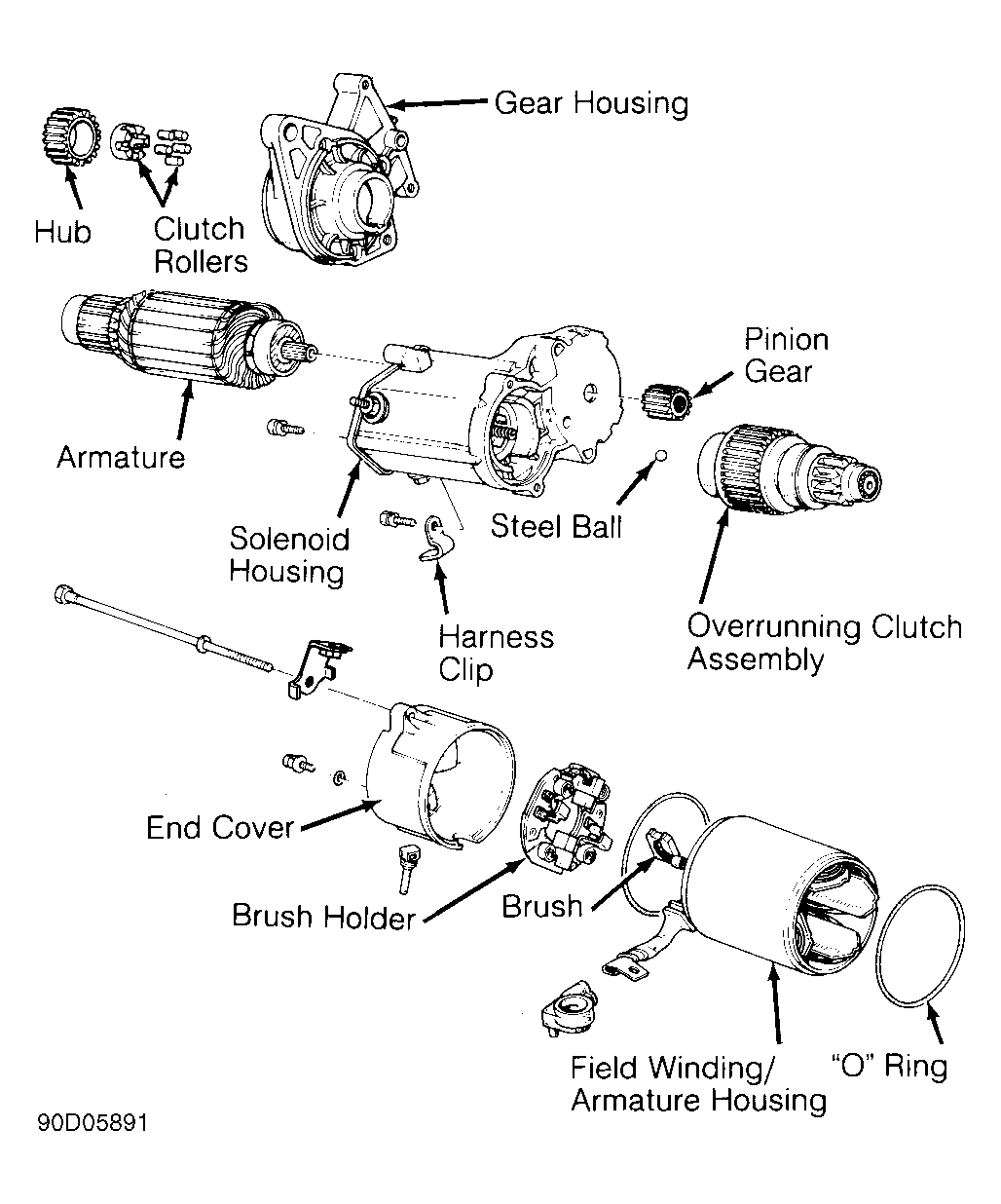

Fig 1: Exploded View Of Starter (Mitsuba)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

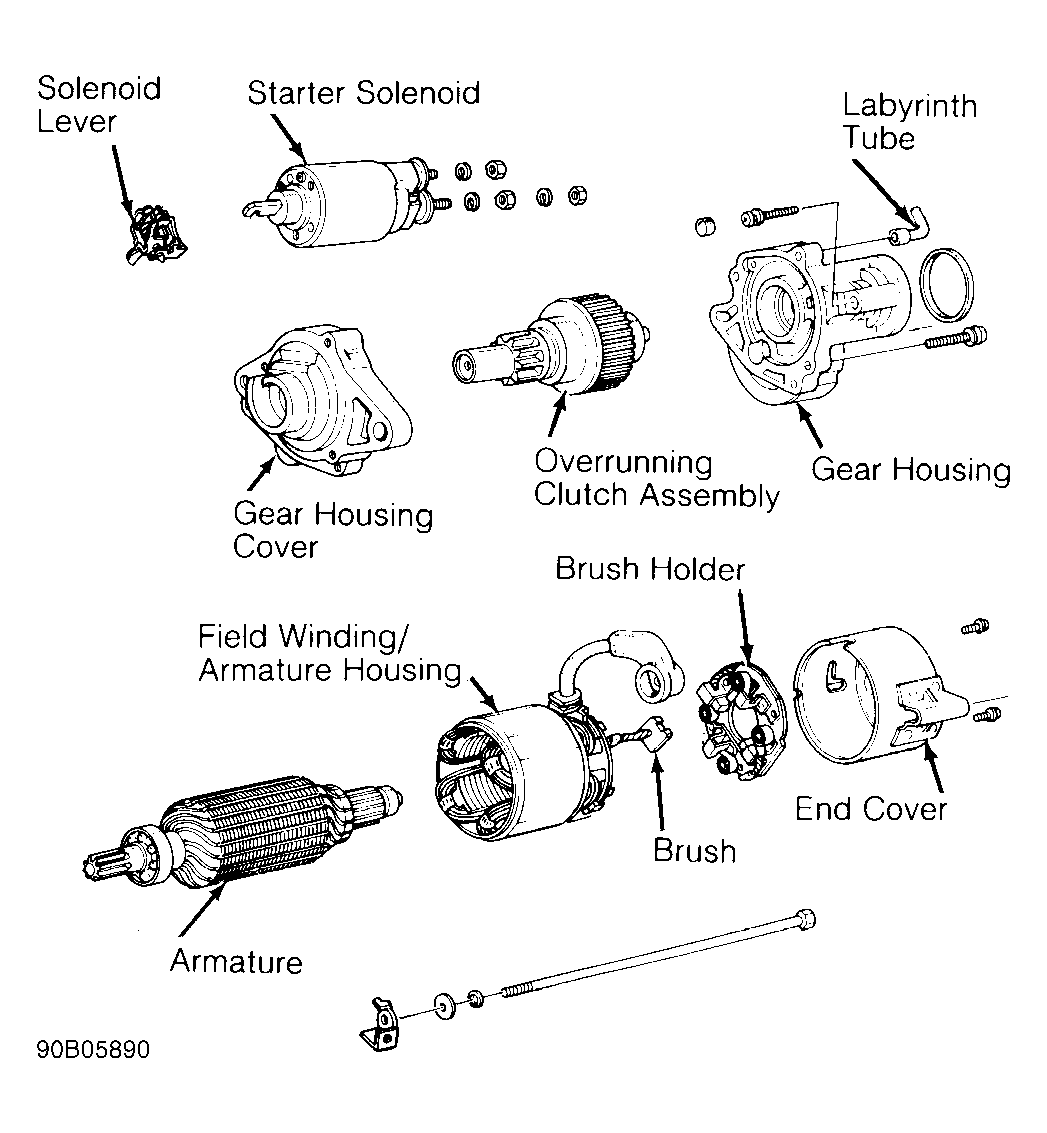

Fig 2: Exploded View Of Starter (Nippondenso)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
