Service Point Locations

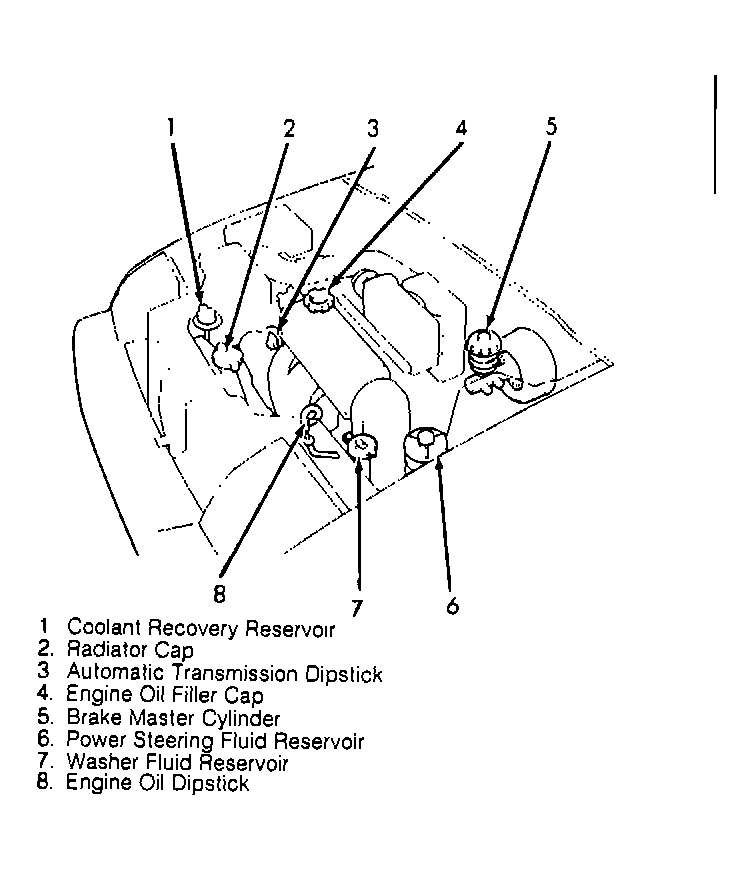

Fig 1: Service Point Locations (Typical)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

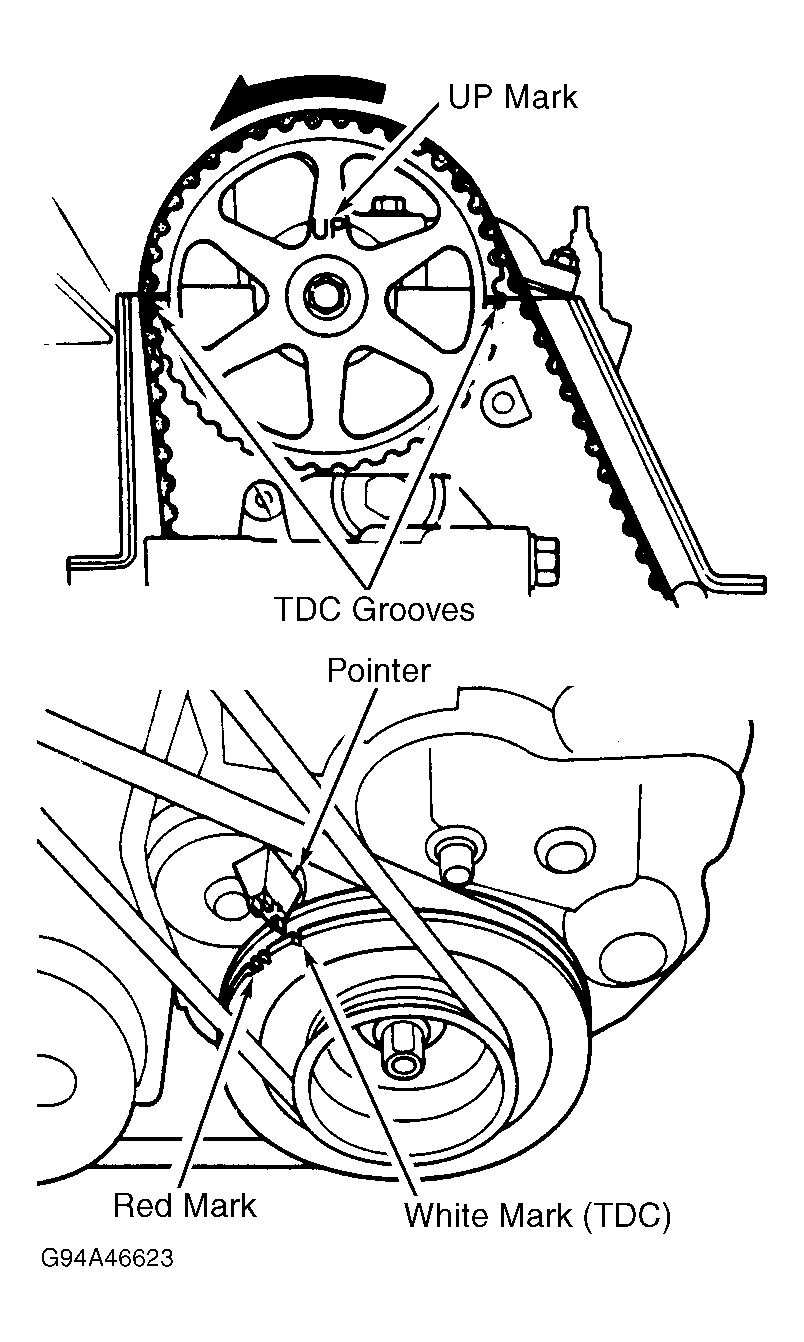

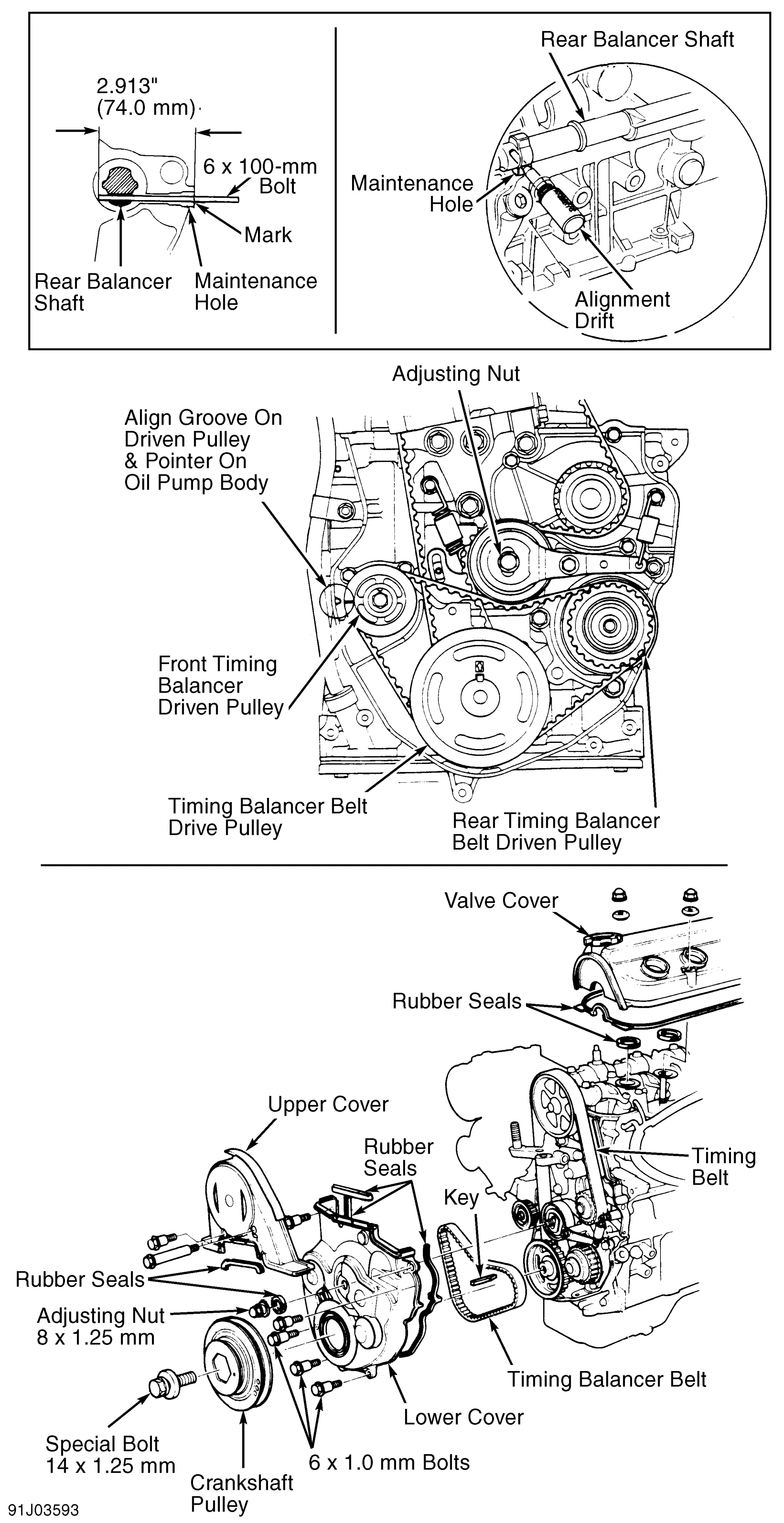

Fig 2: Camshaft Timing Belt Alignment Marks

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For more information regarding camshaft timing belt service refer to the 2.2L 4-CYL article in the ENGINE MECHANICAL section.

Fig 3: Positioning Camshaft Sprocket for Valve Adjustment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

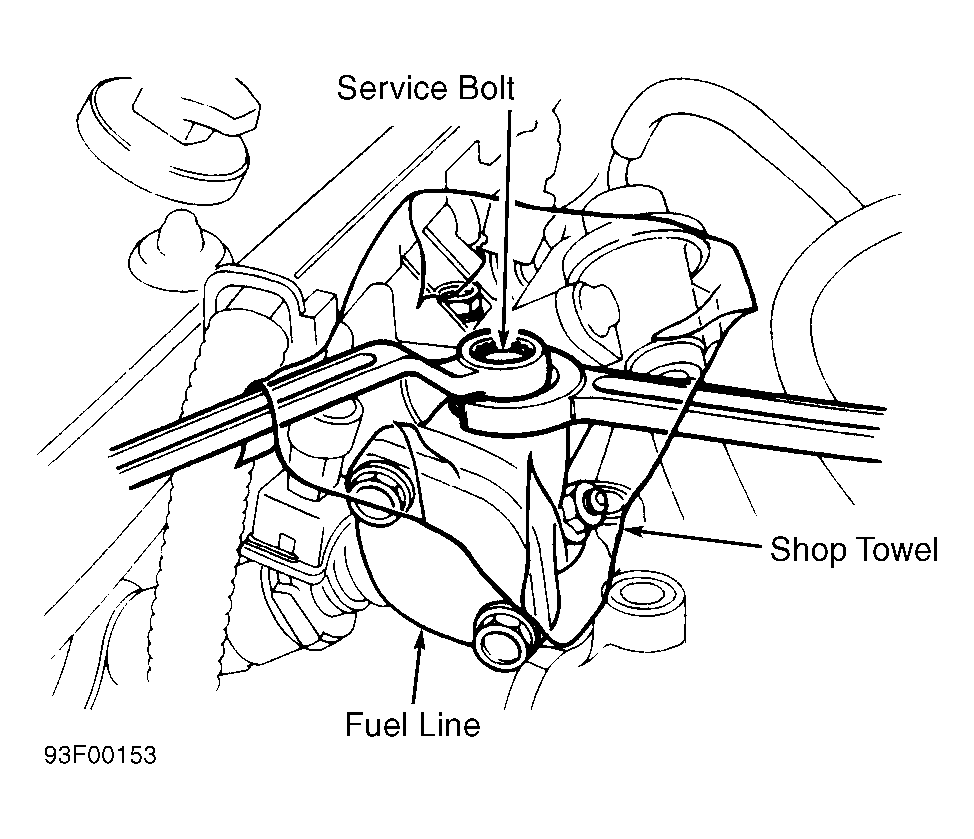

Fig 4: Releasing Fuel System Pressure

Courtesy of AMERICAN HONDA MOTOR CO., INC.
