Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Diode, A/C | Above left side of front passenger's footrest, taped to harness. |
| Diode 1, 2 & 3 | Behind dash, left of steering column, taped to harness. |
| Diode, Security (2) | Behind driver's left air vent. |
| Diode, Shift Lock | Above front passenger's footrest, taped to ECM breakout. |
| Diode, Turn Signal Lamp | Next to underdash fuse/relay box, taped to harness. |
| In-Line Fuse, ATTS (Type SH) | Behind underdash fuse/relay box, taped to harness. |
| In-Line Fuse, Fog Lamp | In front of underdash fuse/relay box, taped to harness. |
| In-Line Fuse, Security (3) | Behind dash, left of steering column, taped to harness. |
| SRS Fuse Block | On front of underdash fuse/relay box. See Figure . |
| Underdash Fuse/Relay Box | Behind left kick panel. See Figure . |

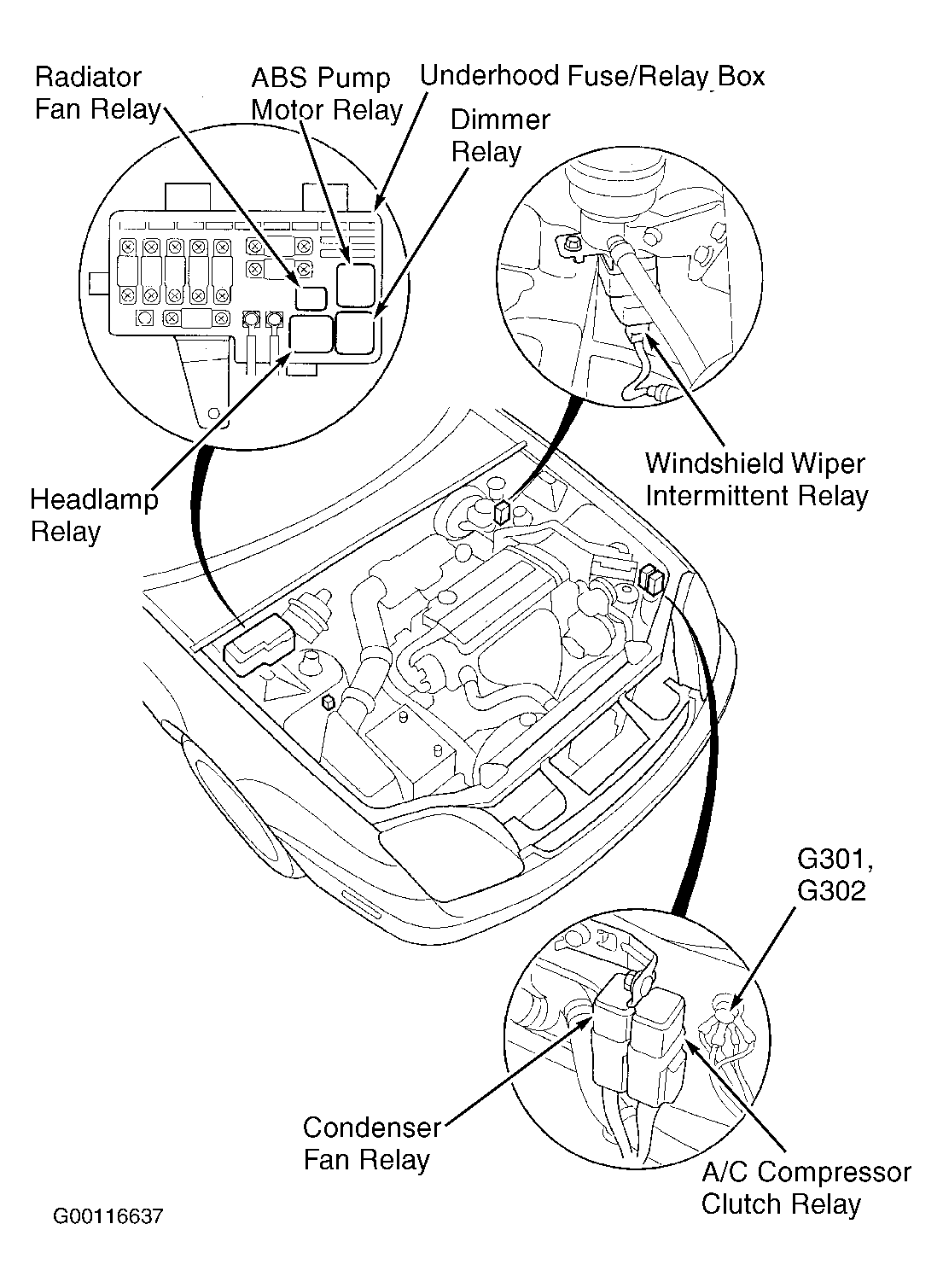

| Underhood Fuse/Relay Box | On right rear corner of engine compartment. See Figure . |
