Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Behind right kick panel. See Figure . |
| ABS Modulator Unit | On left side of engine compartment. |
| ATTS Control Unit (Type SH) | On underside of front passenger's footrest. See Figure . |

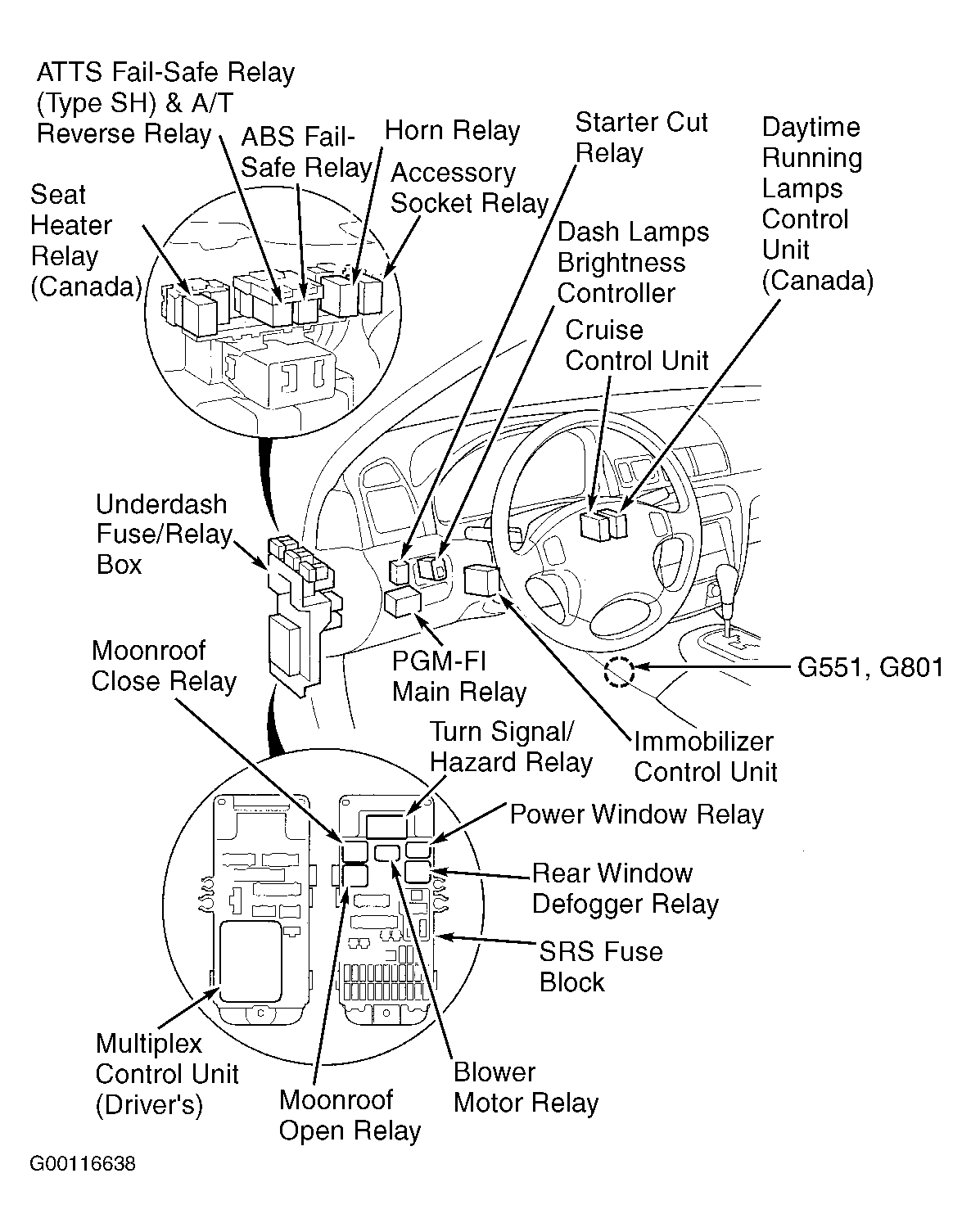

| Cruise Control Unit | Behind dash, right of steering column. See Figure . |
| Daytime Running Lamps Control Unit (Canada) | Behind dash, right of steering column. See Figure . |
| Engine Control Module (ECM) | On underside of front passenger's footrest. See Figure . |
| Immobilizer Control Unit | Behind dash, on left side of steering column. See Figure . |

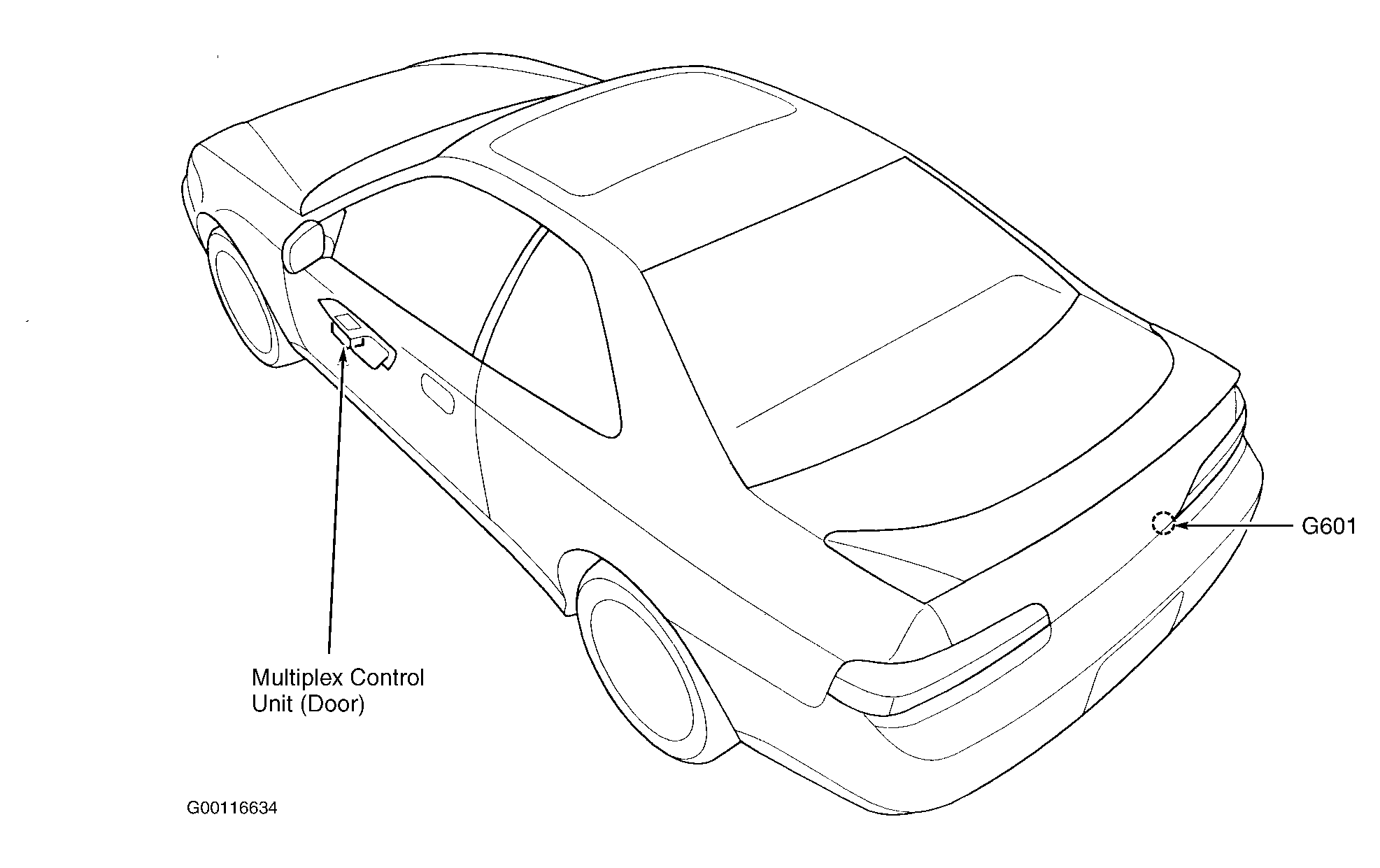

| Multiplex Control Unit (Door) | In driver's door. See Figure . |
| Multiplex Control Unit (Driver's) | On rear of underdash fuse/relay box. See Figure . |
| Multiplex Control Unit (Passenger's) | Behind right kick panel. See Figure . |
| Security Control Unit | Behind dash, right of steering column. |
| SRS Unit | Below center of dash. See Figure . |
| Transmission Control Module (TCM) | On underside of front passenger's footrest. See Figure . |
