Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

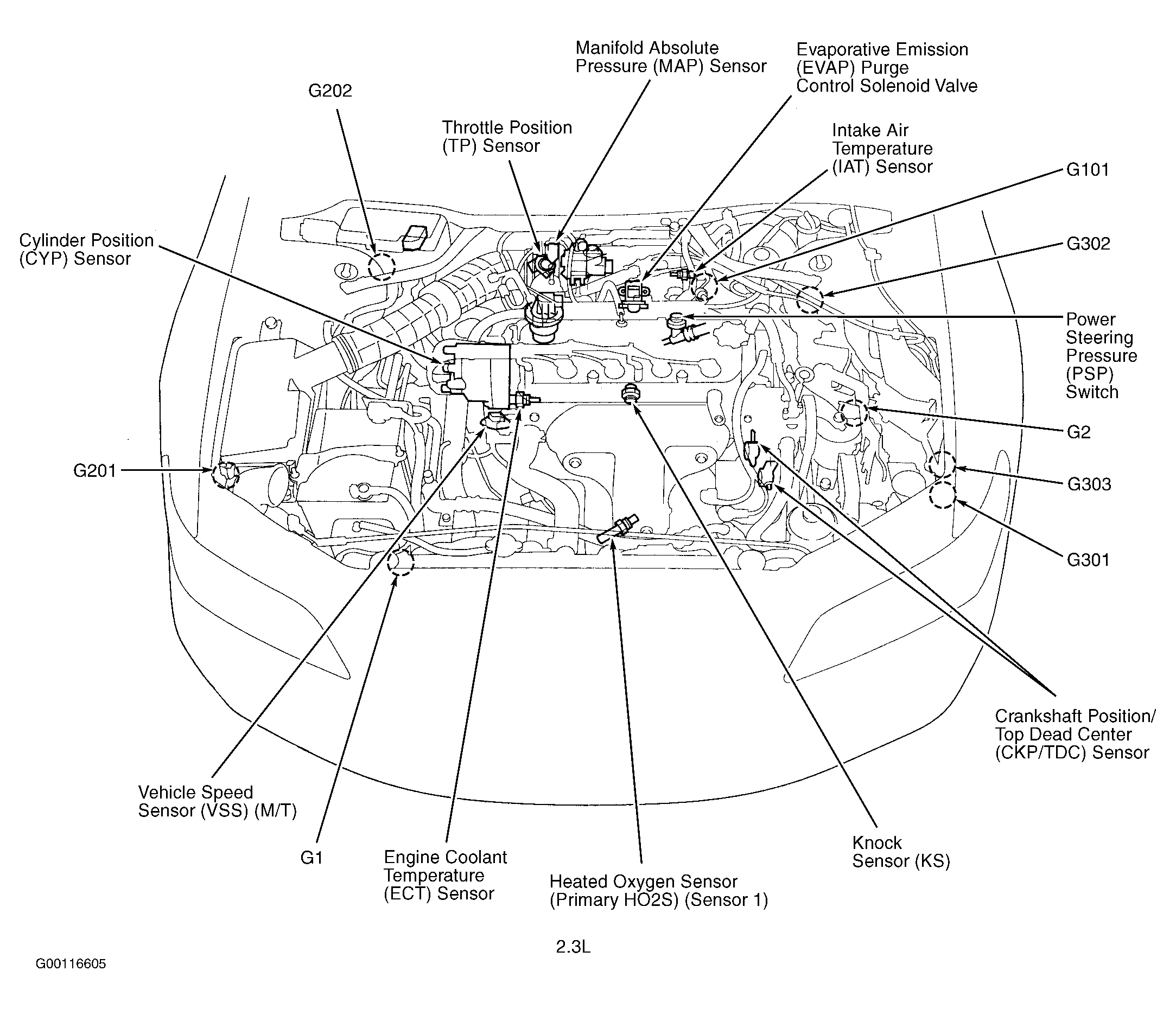

Fig 1: Engine Compartment (2.3L)

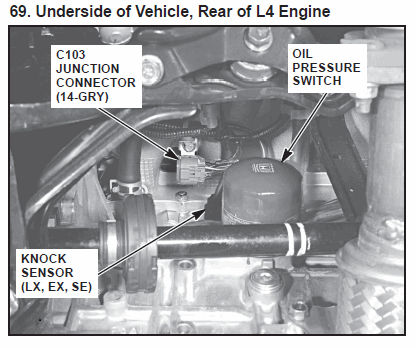

Fig 2: Engine Knock Sensor (2.3L)

Fig 3: Engine Compartment (2.3L)

Fig 4: Engine Compartment (3.0L)

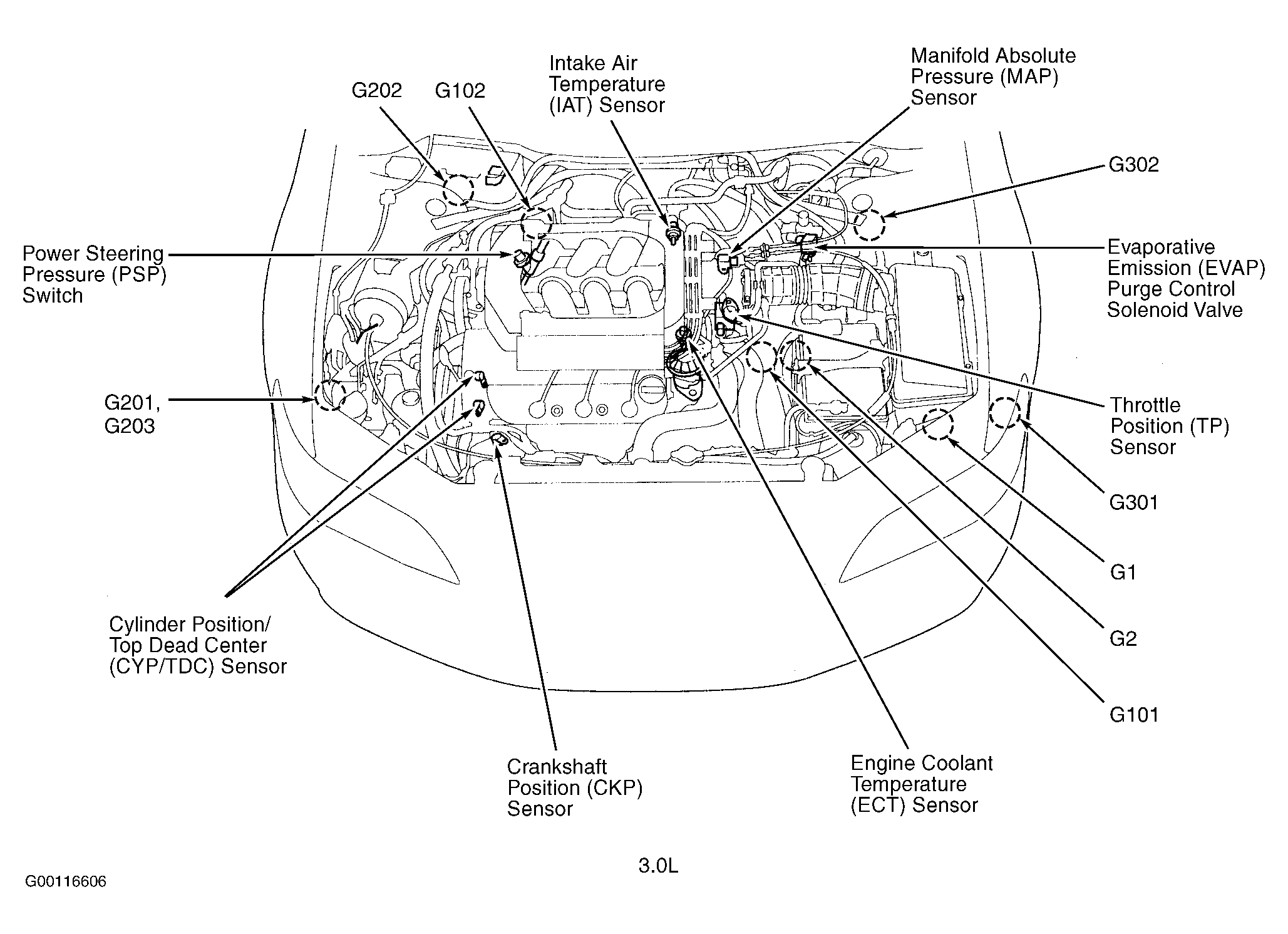

Fig 5: Engine Compartment (3.0L)

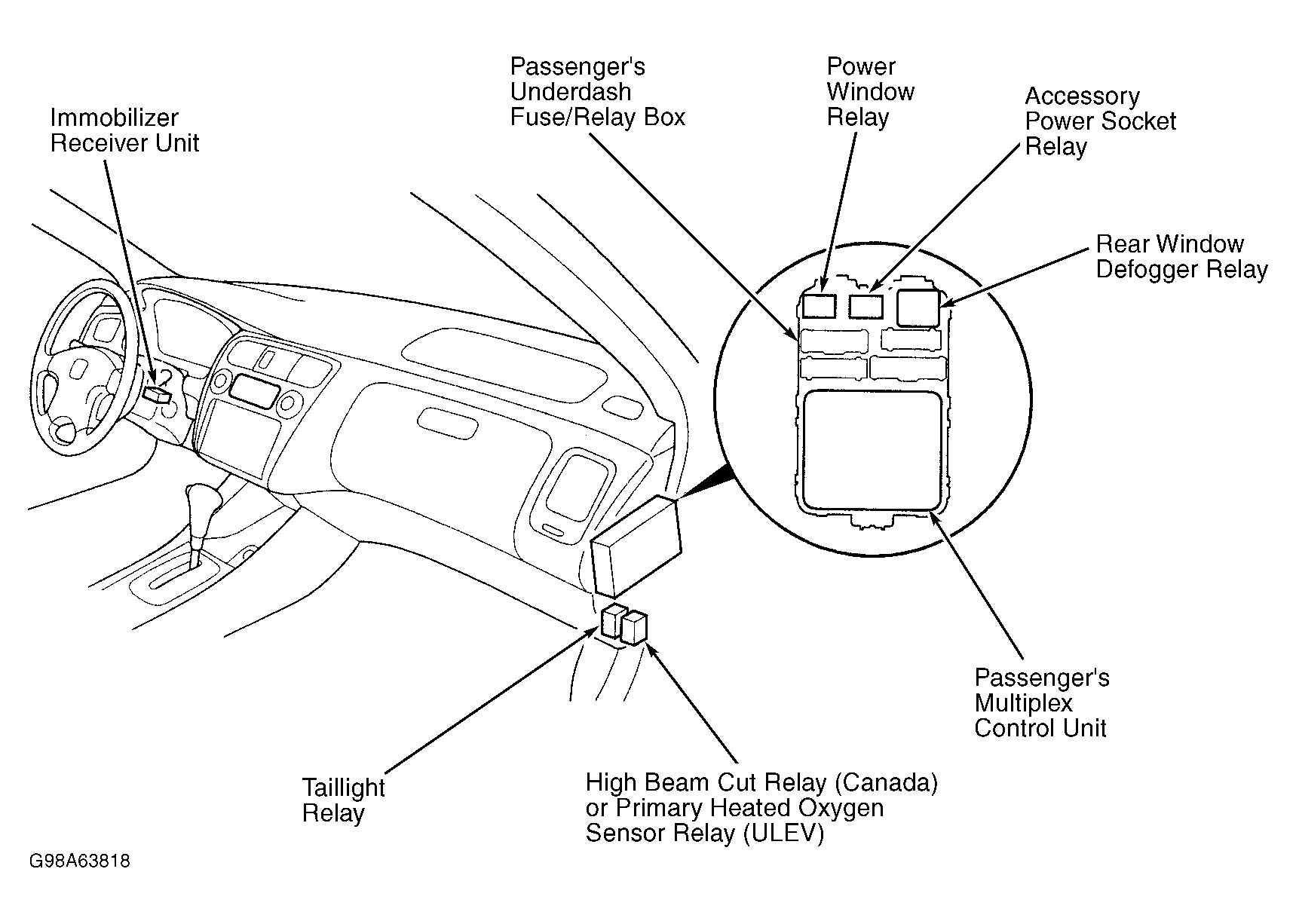

Fig 6: Right Side Of Dash

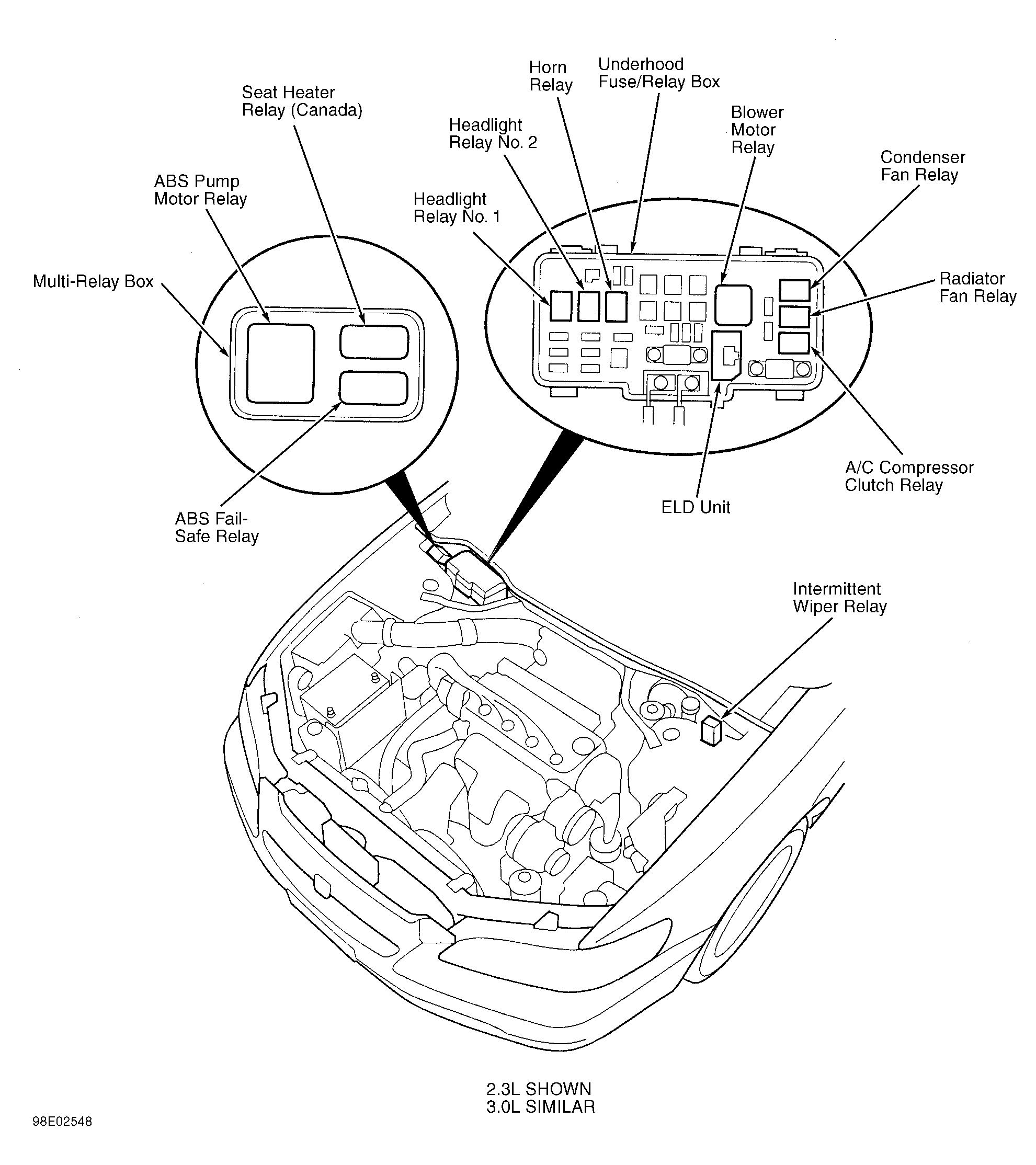

Fig 7: Engine Compartment (2.3L Shown, 3.0L Similar)

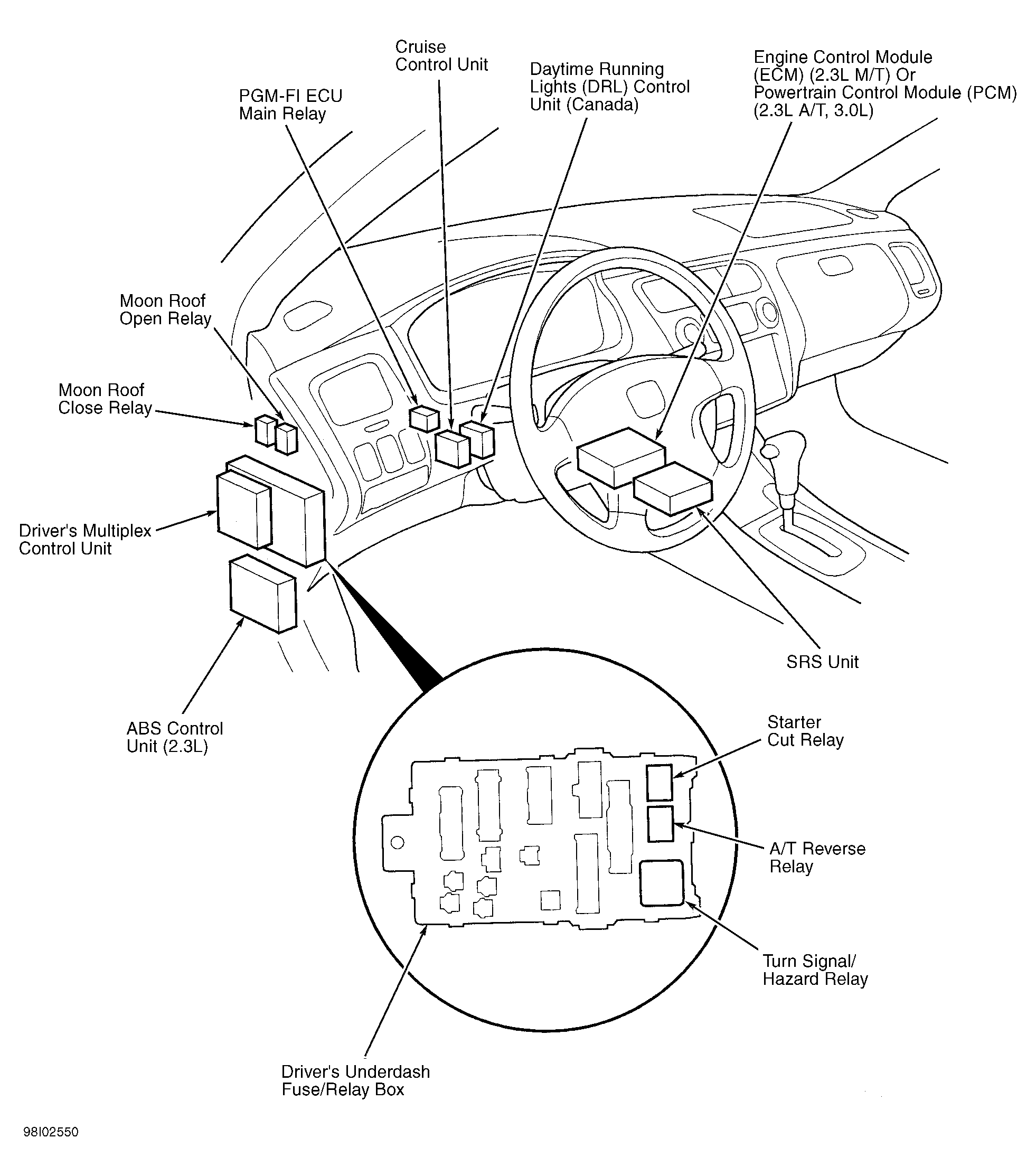

Fig 8: Left Side Of Dash

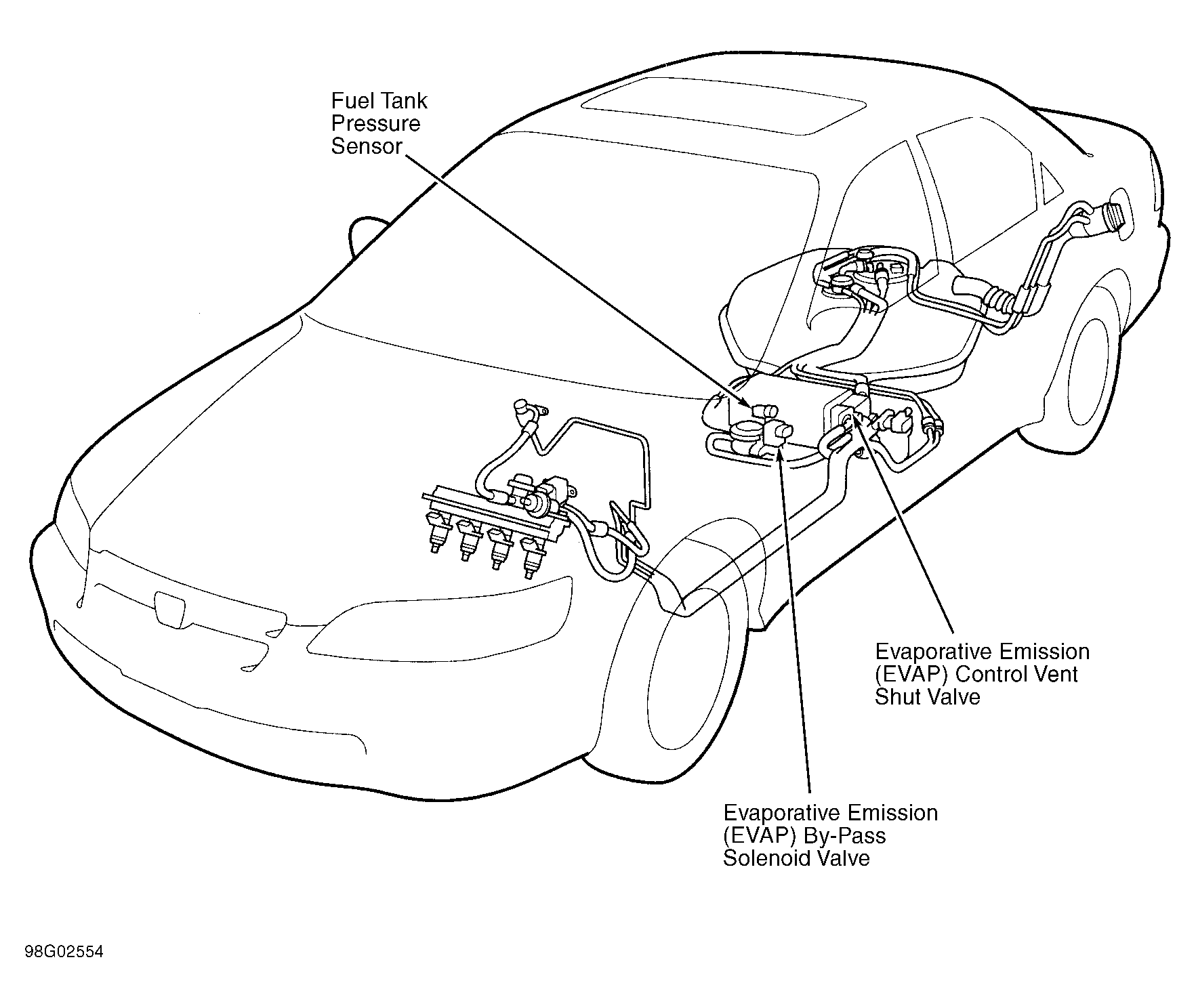

Fig 9: Vehicle Overview
