Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

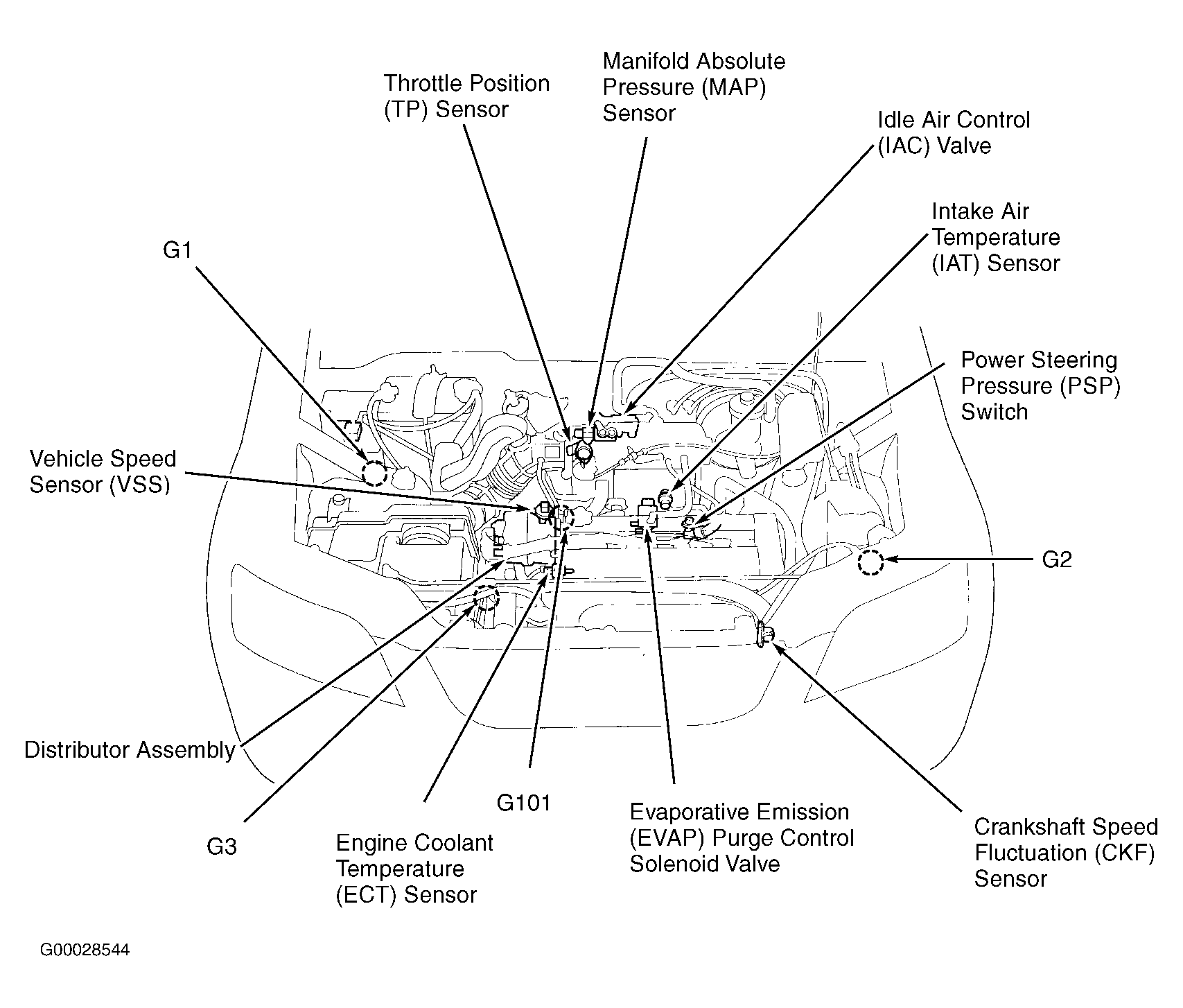

Fig 1: Top Of Engine

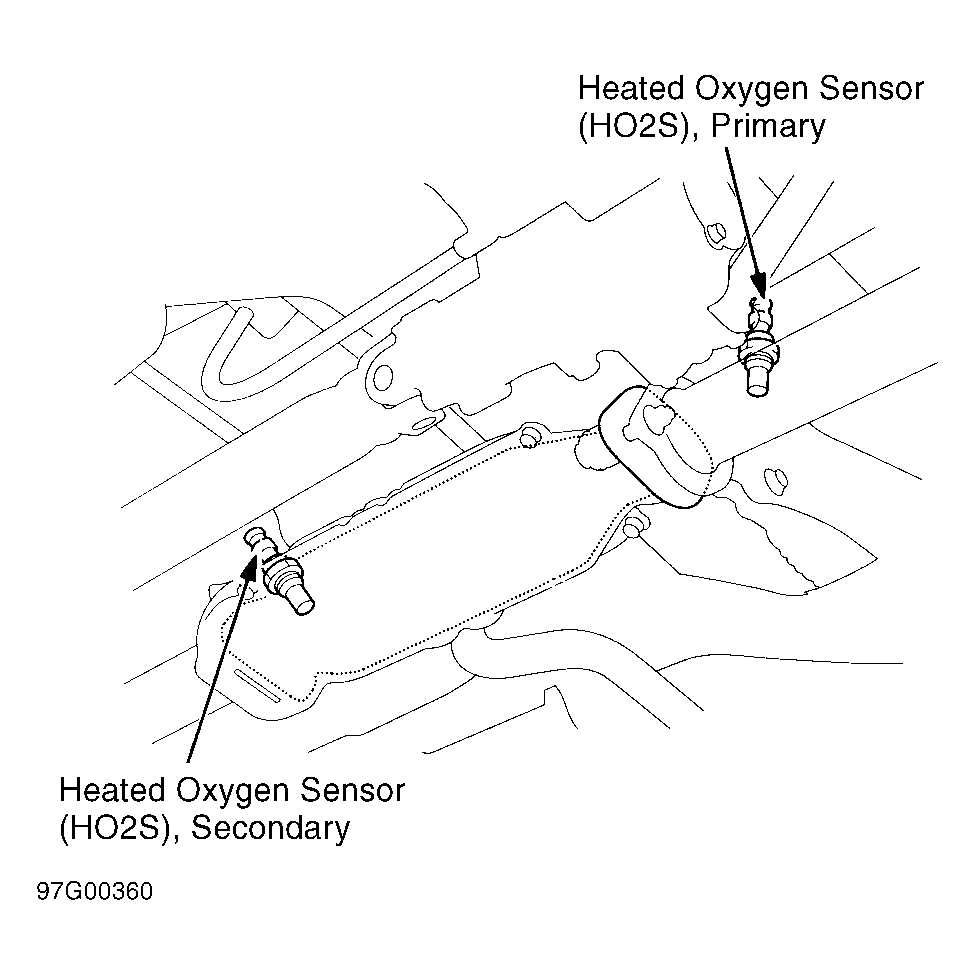

Fig 2: Underside Of Vehicle

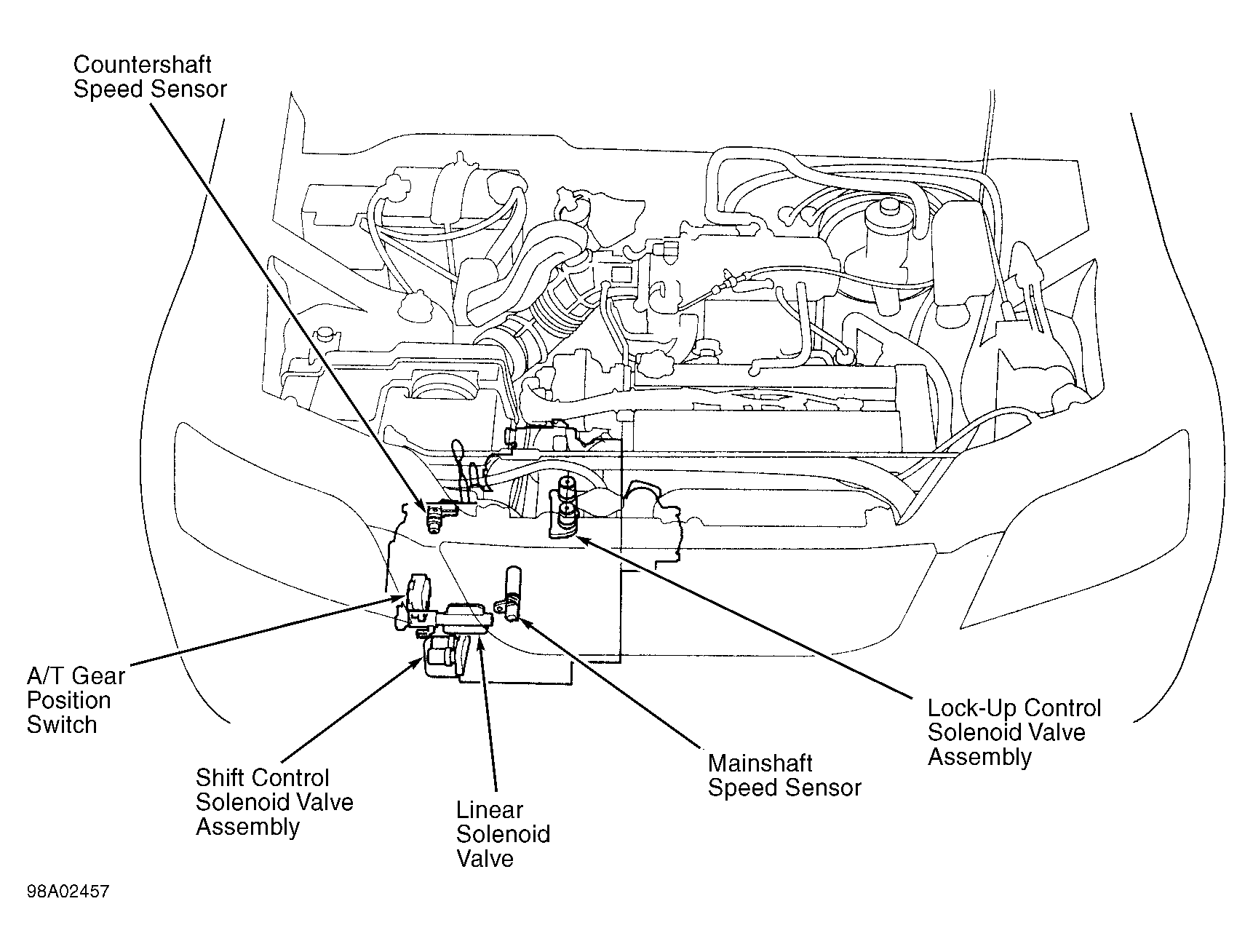

Fig 3: Transaxle

Fig 4: Engine Compartment

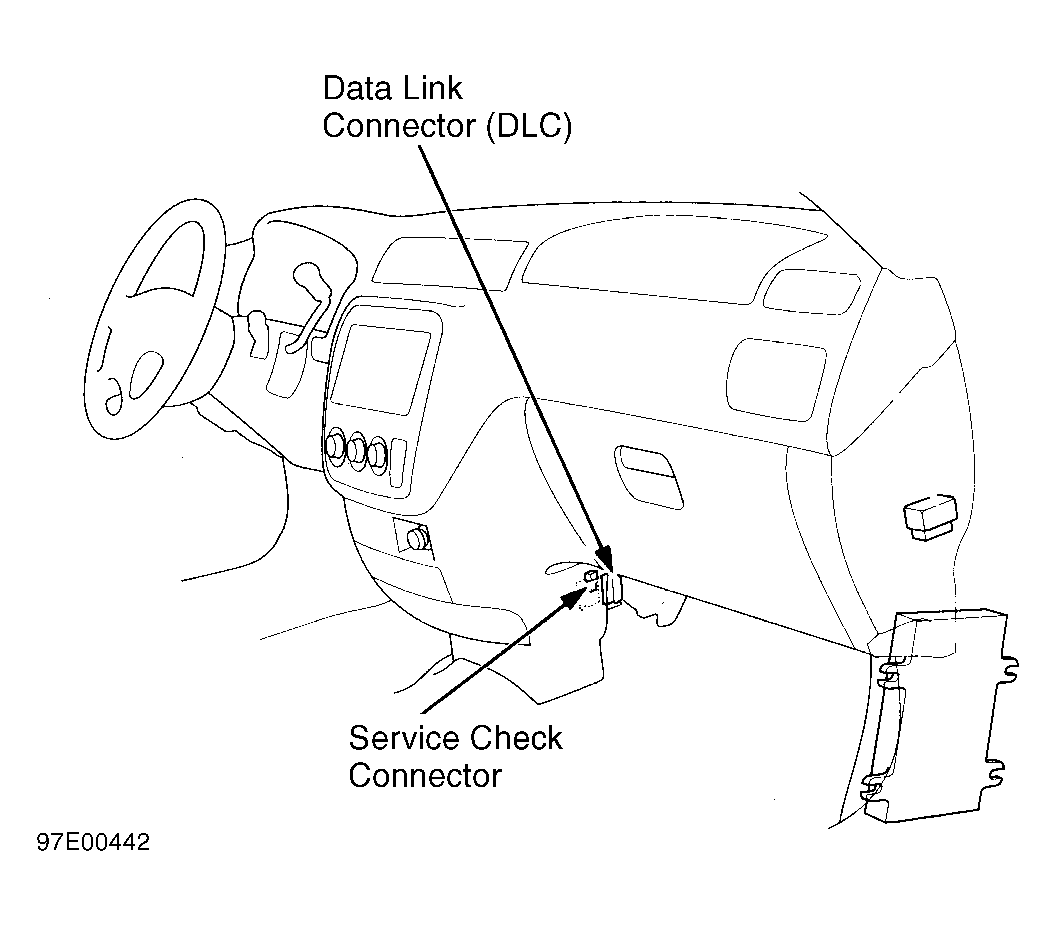

Fig 5: Right Side Of Dash

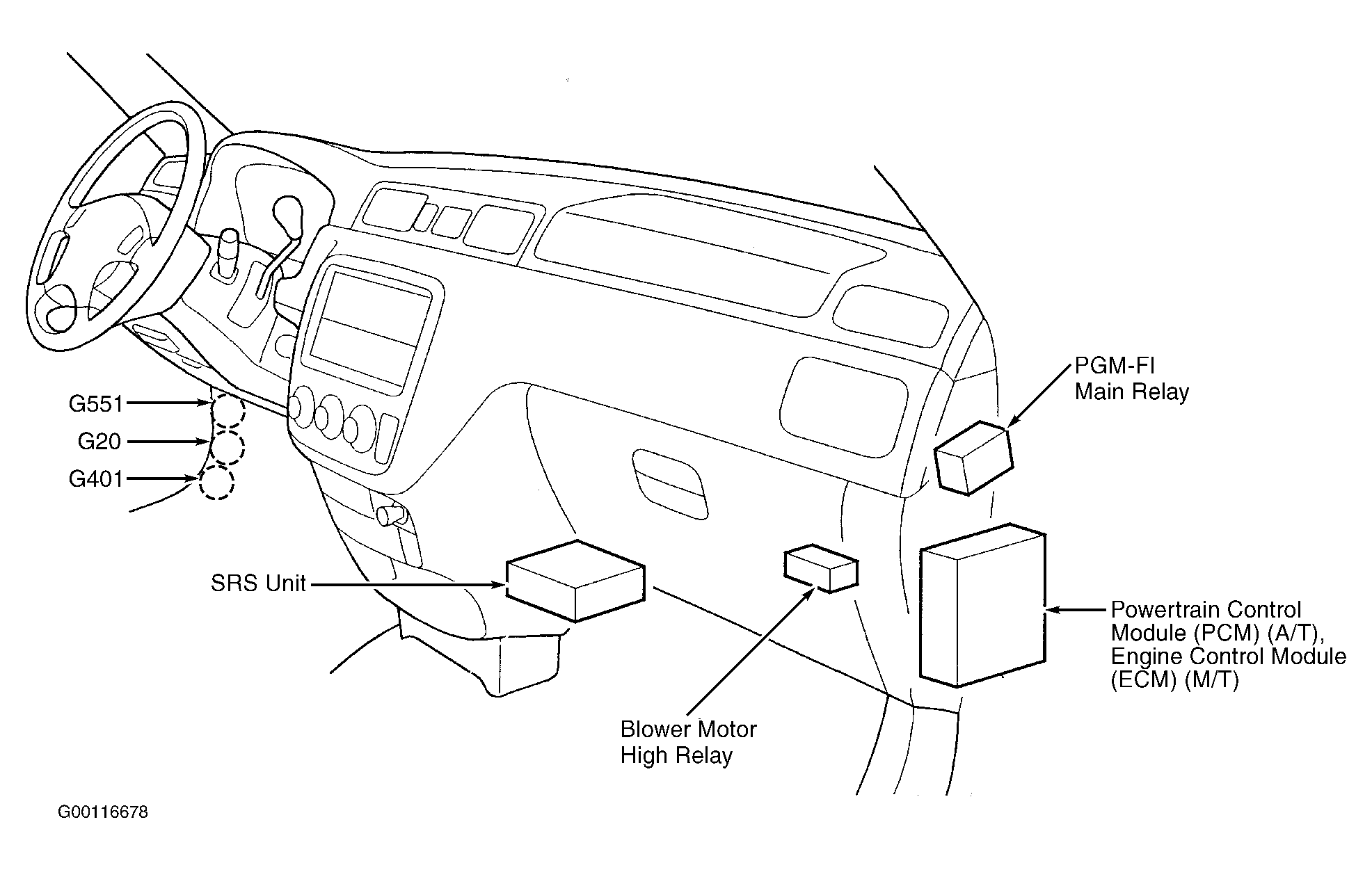

Fig 6: Dash

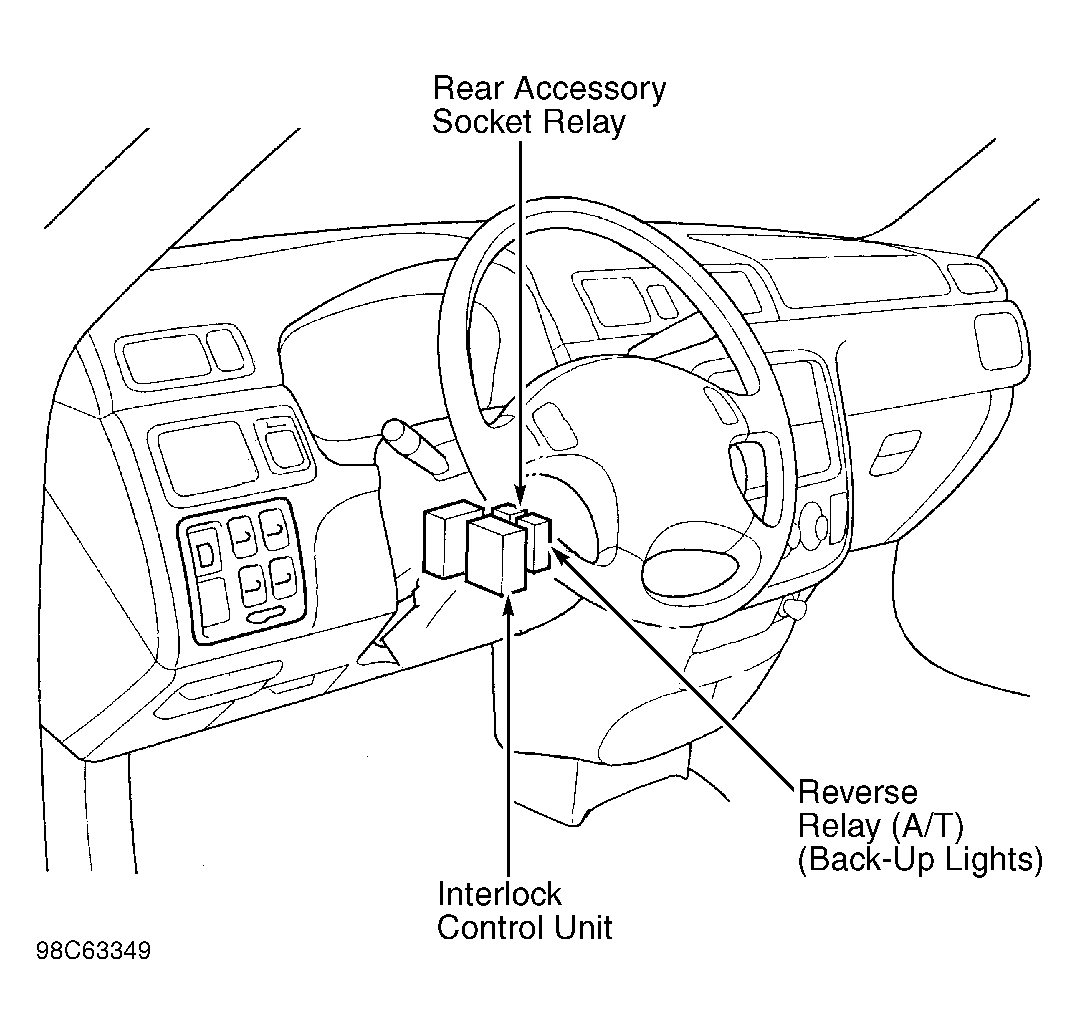

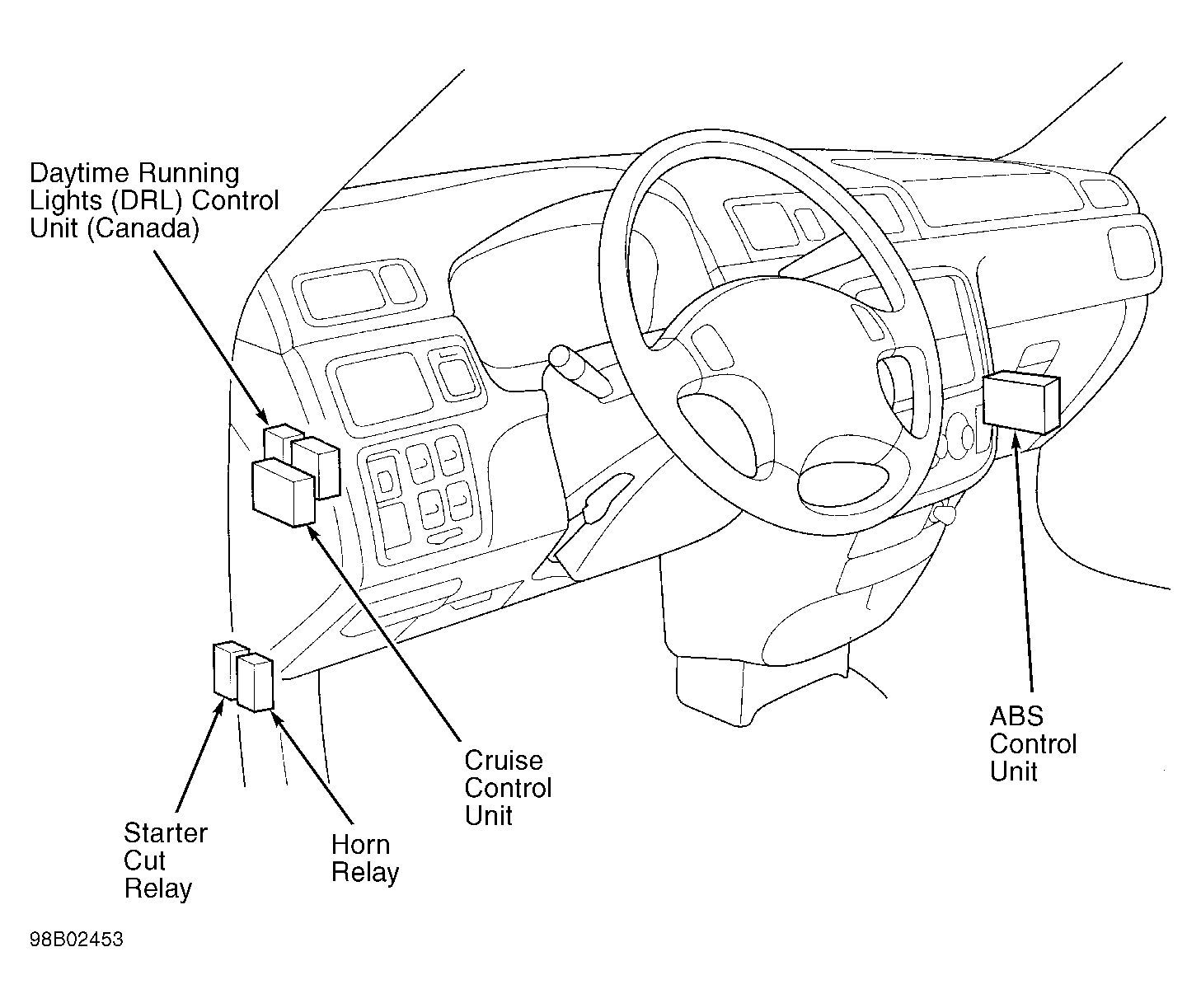

Fig 7: Left Side Of Dash

Fig 8: Right Side Of Dash

Fig 9: Driver's Door

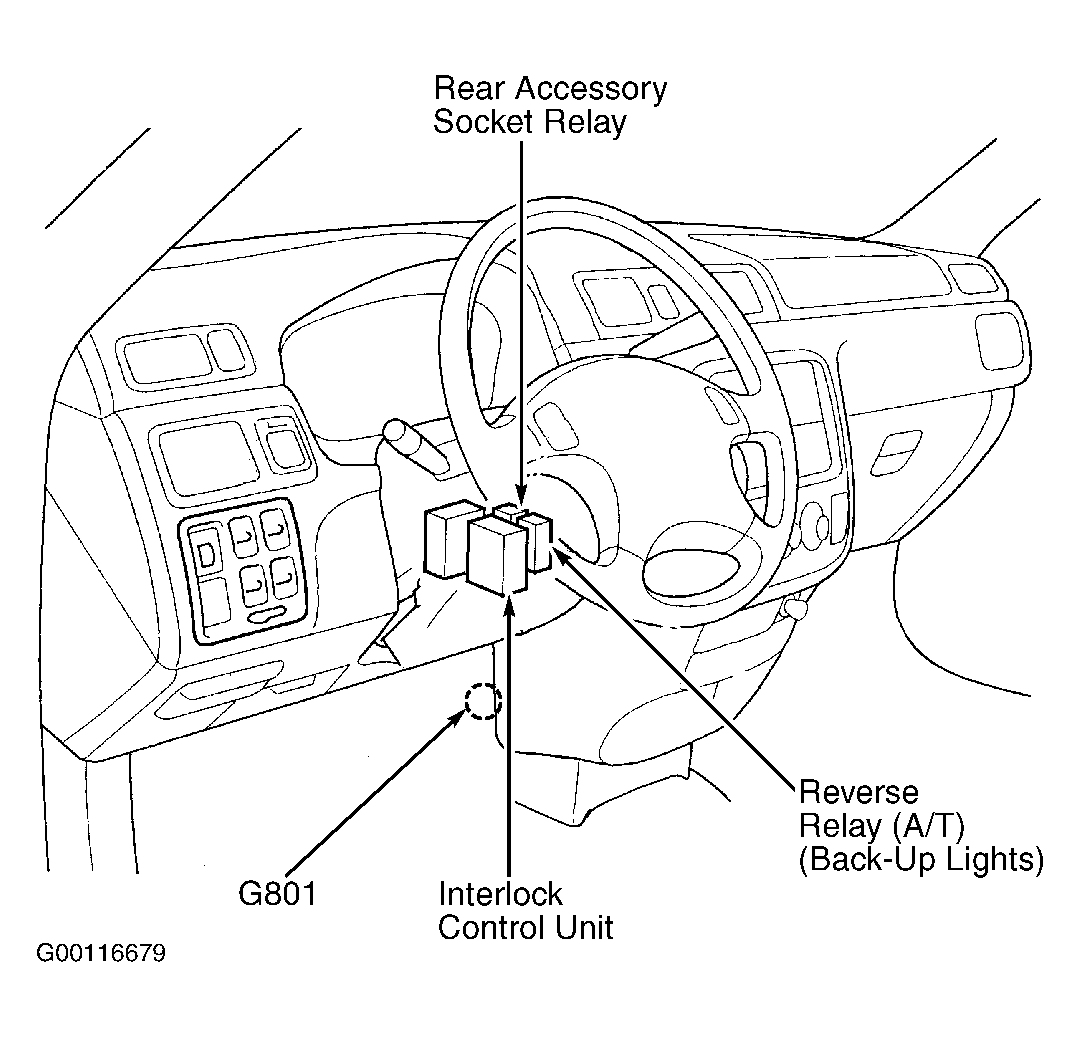

Fig 10: Left Side Of Dash
