Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

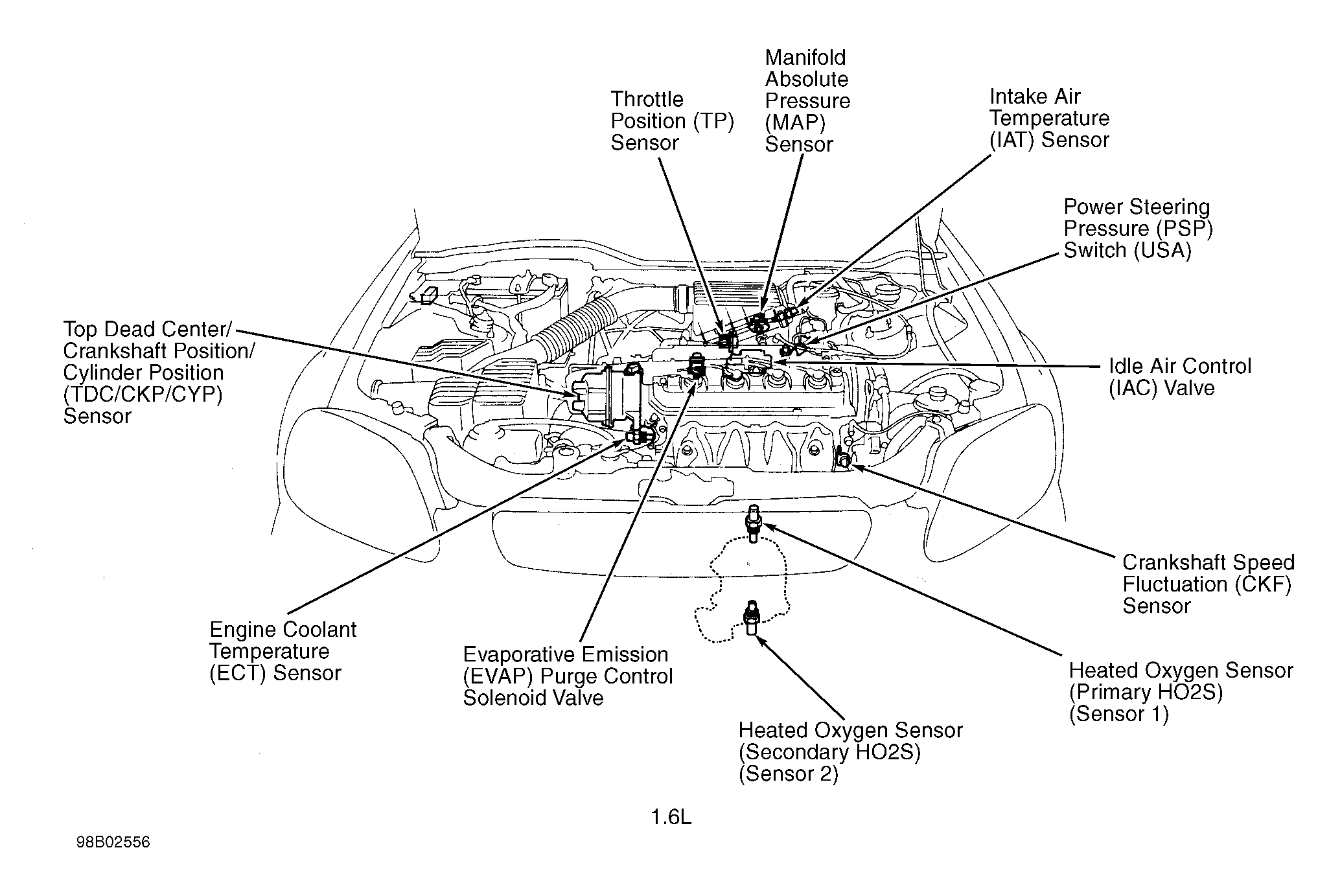

Fig 1: Engine Compartment (1.6L)

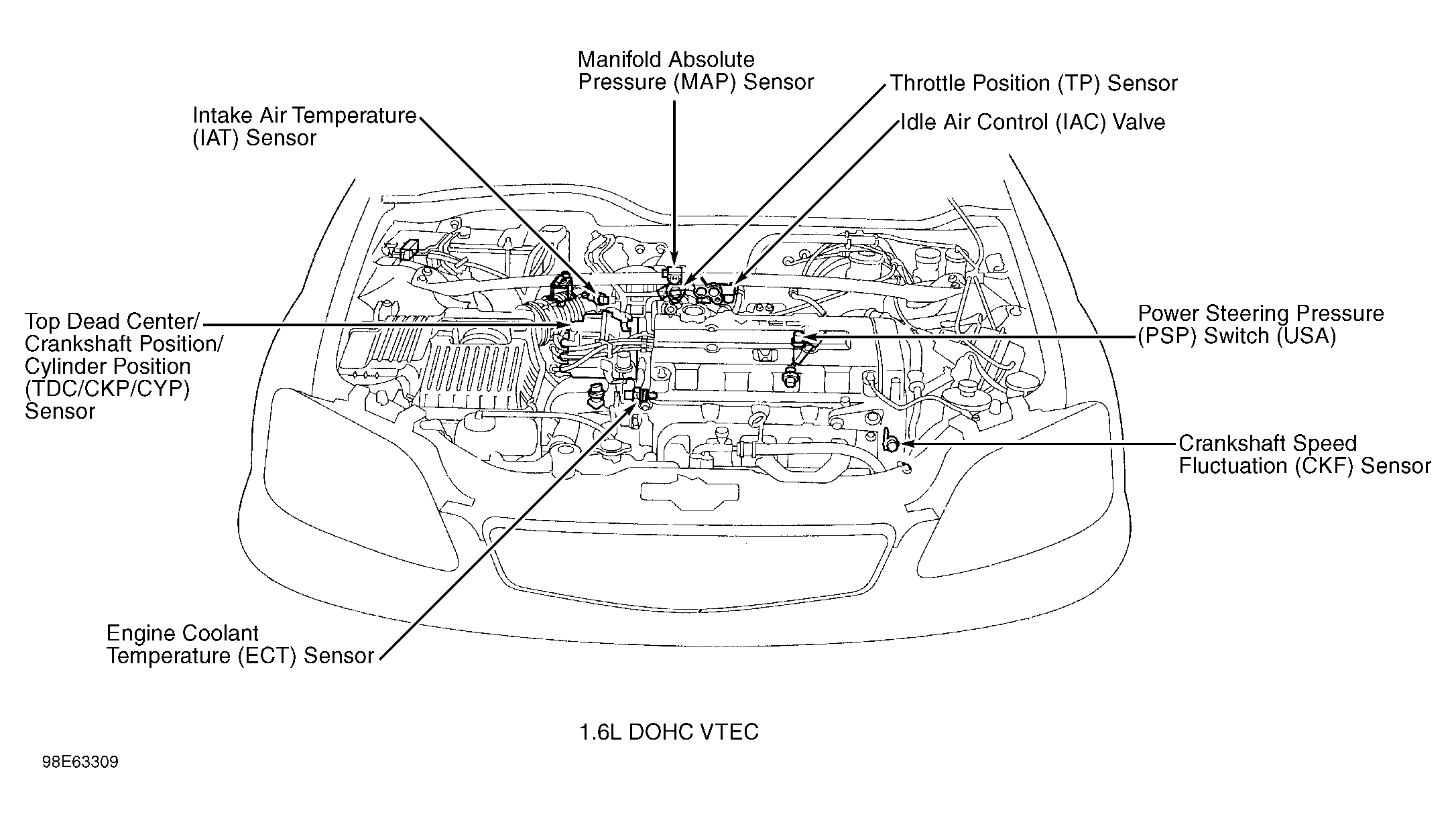

Fig 2: Engine Compartment (1.6L DOHC VTEC)

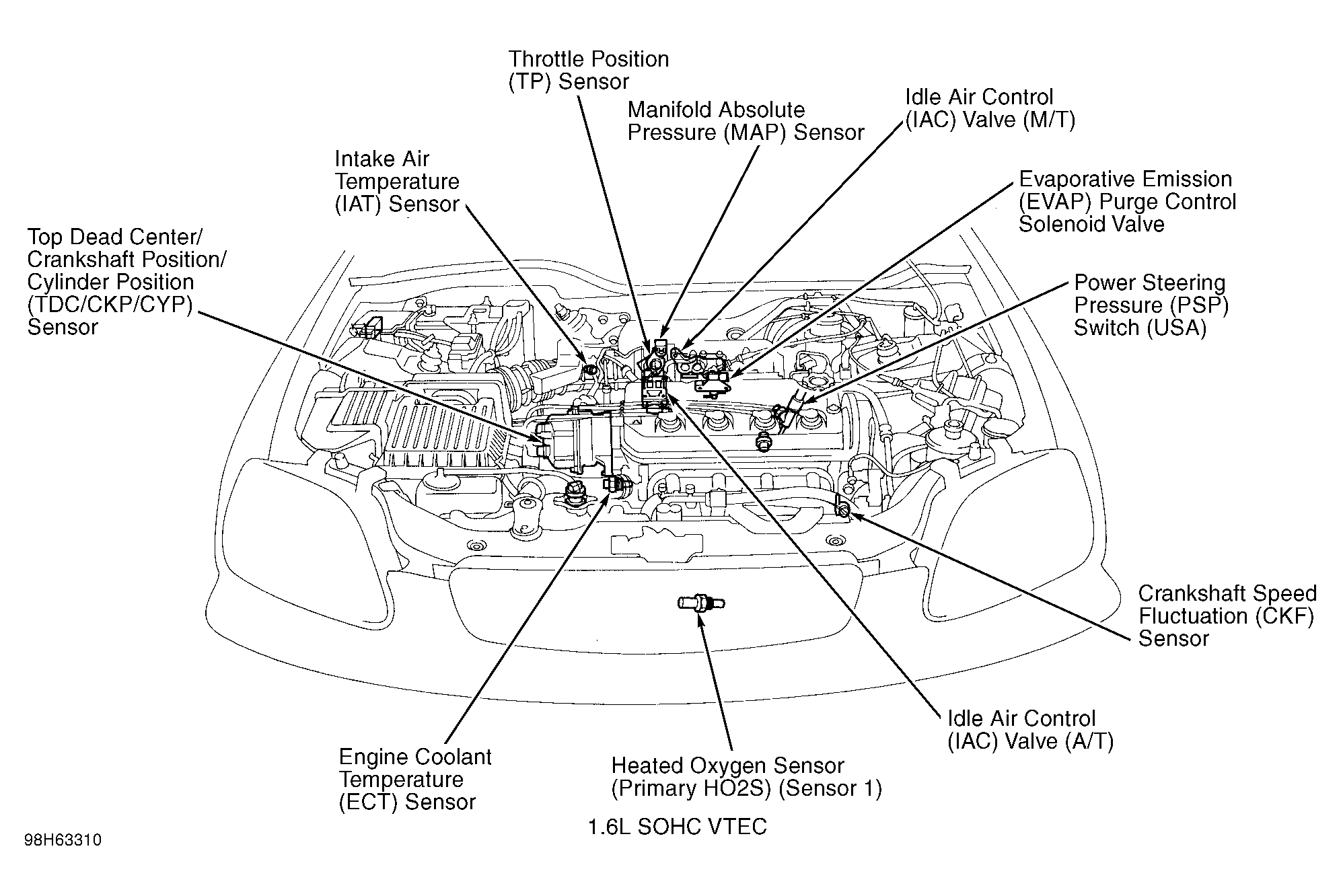

Fig 3: Engine Compartment (1.6L SOHC VTEC)

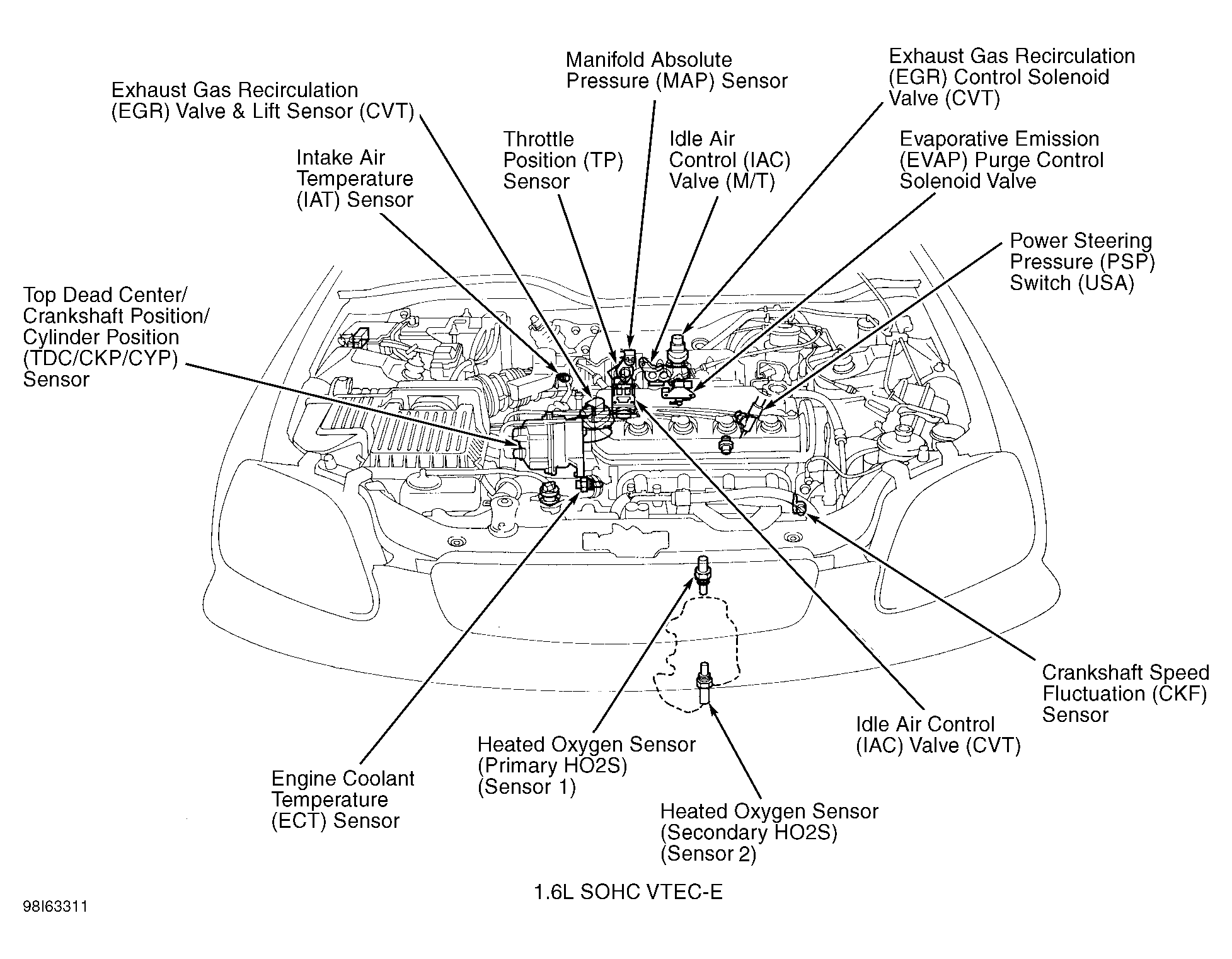

Fig 4: Engine Compartment (1.6L SOHC VTEC-E)

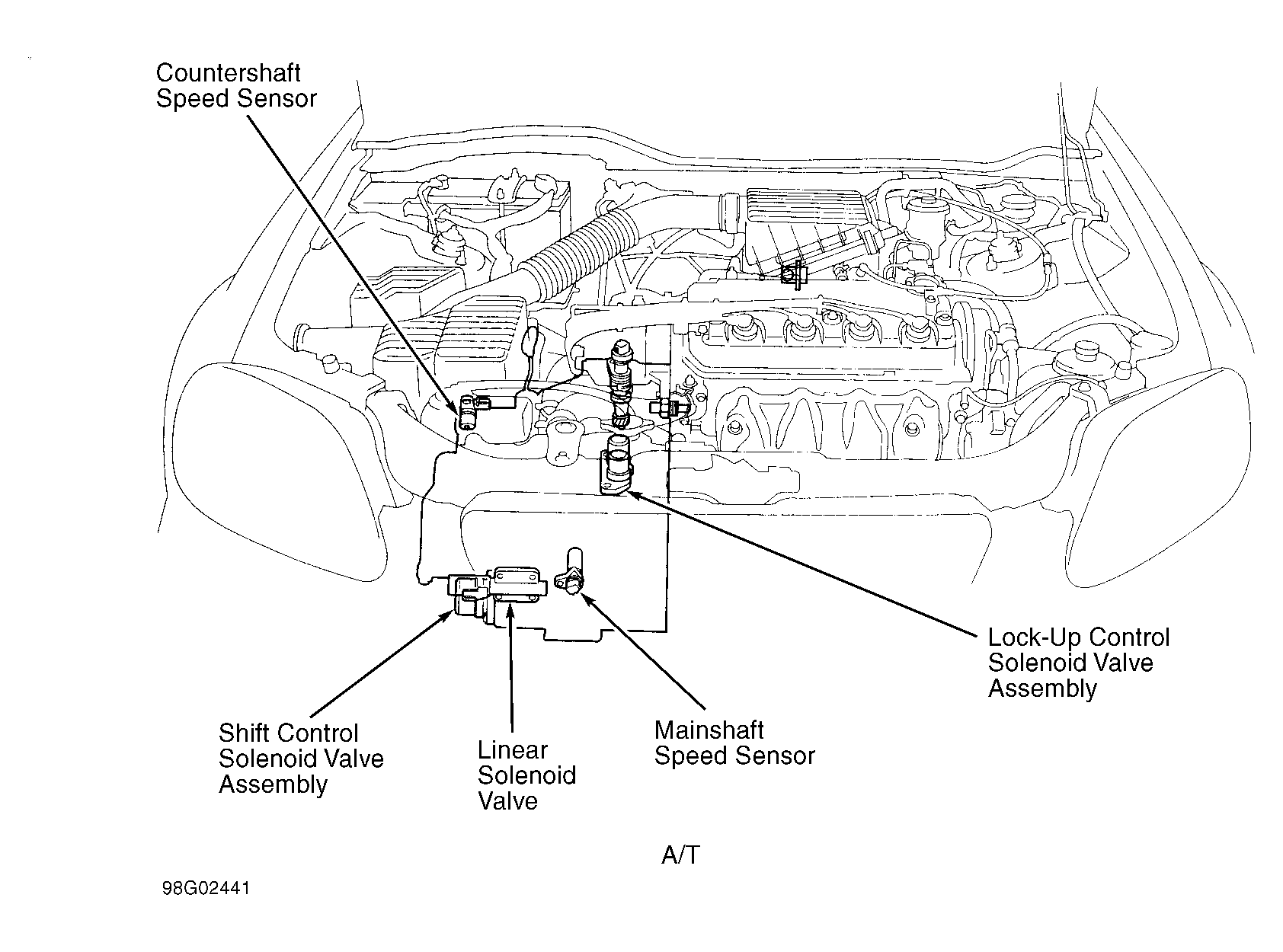

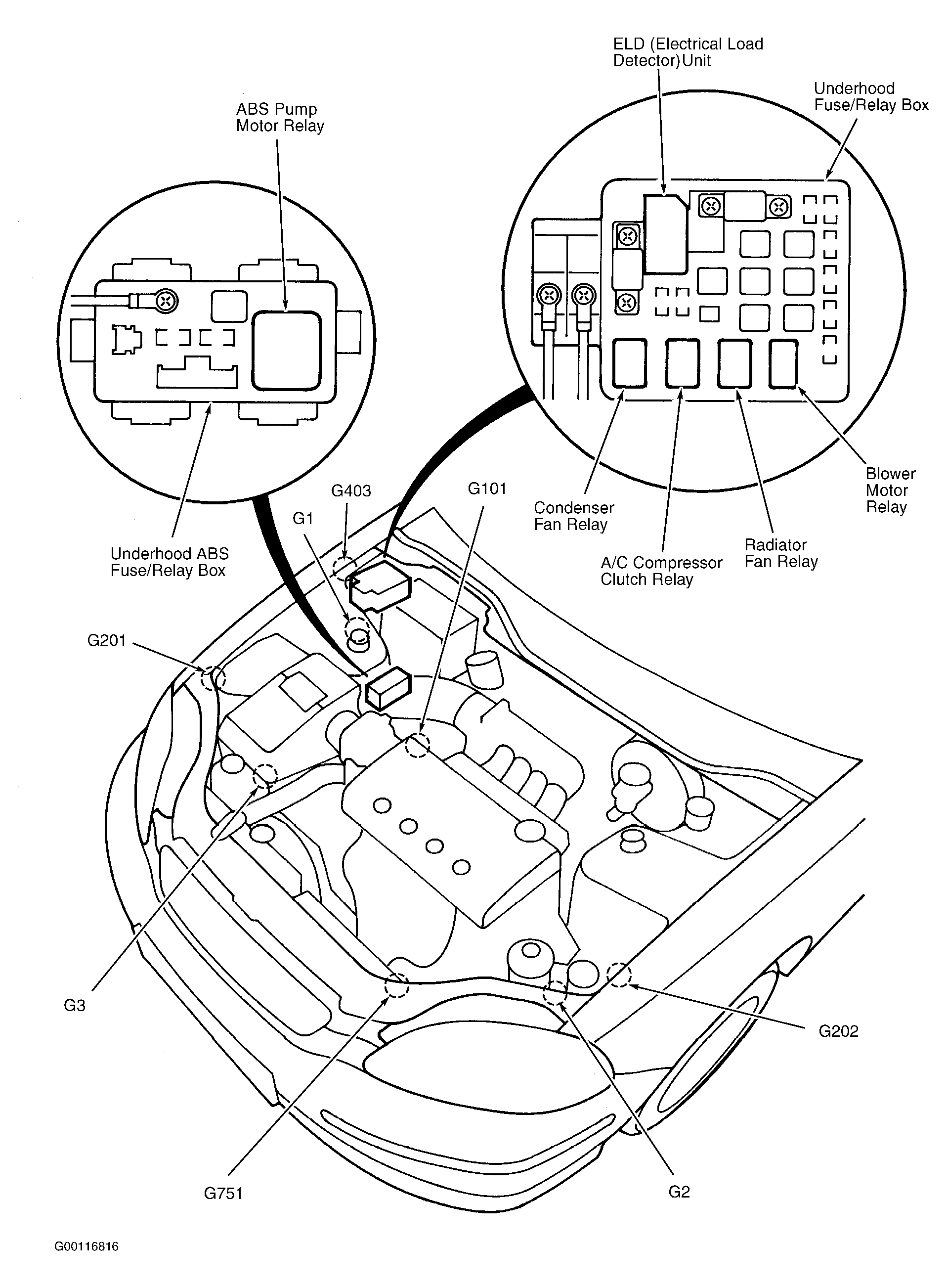

Fig 5: Engine Compartment (A/T)

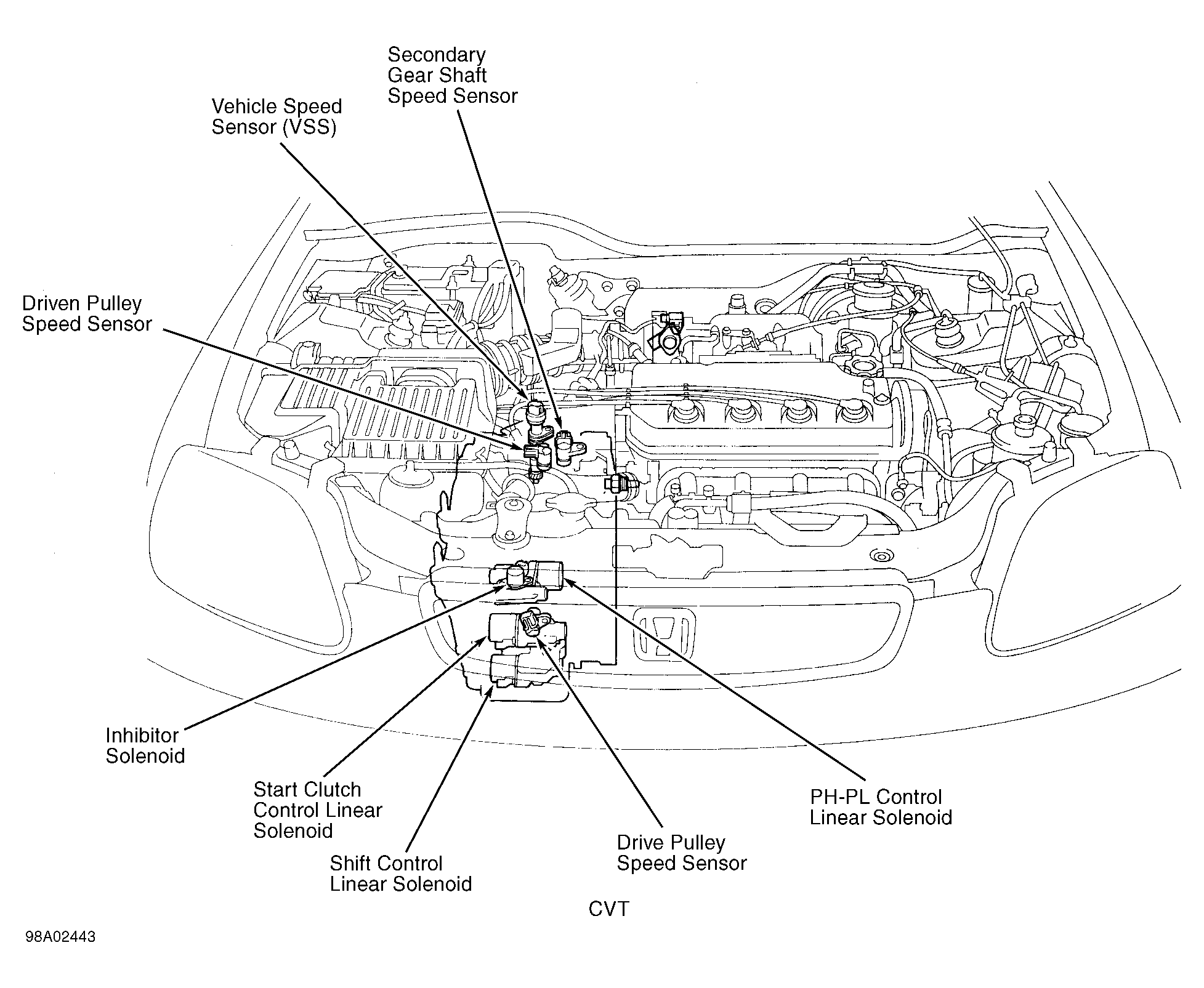

Fig 6: Engine Compartment (CVT)

Fig 7: Engine Compartment

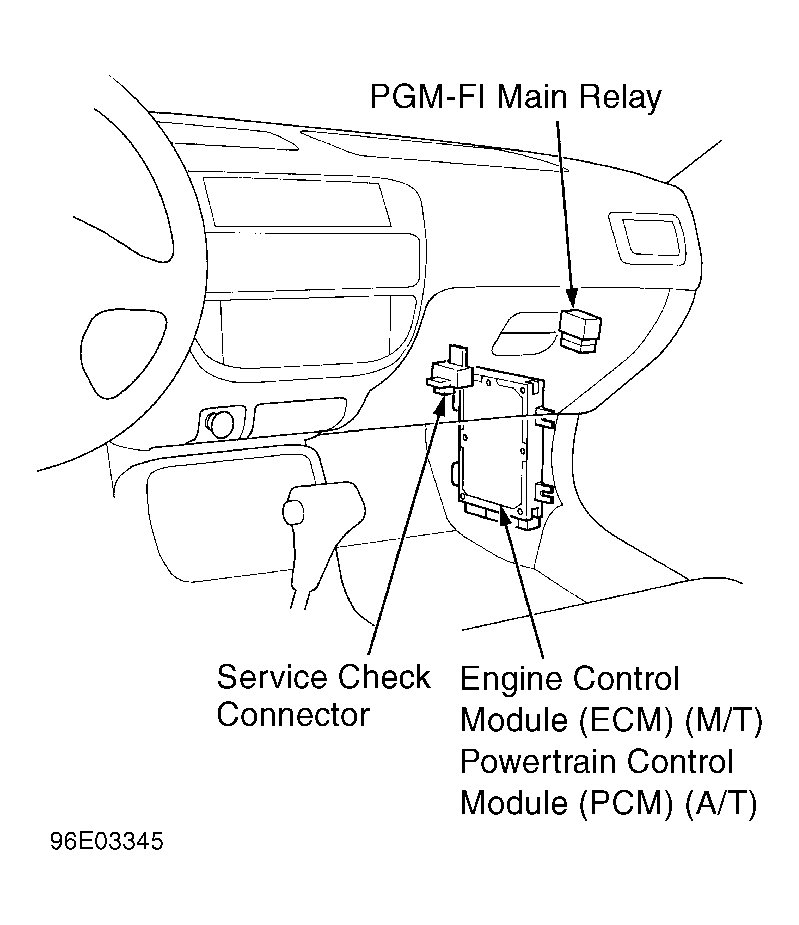

Fig 8: Front Of Dash

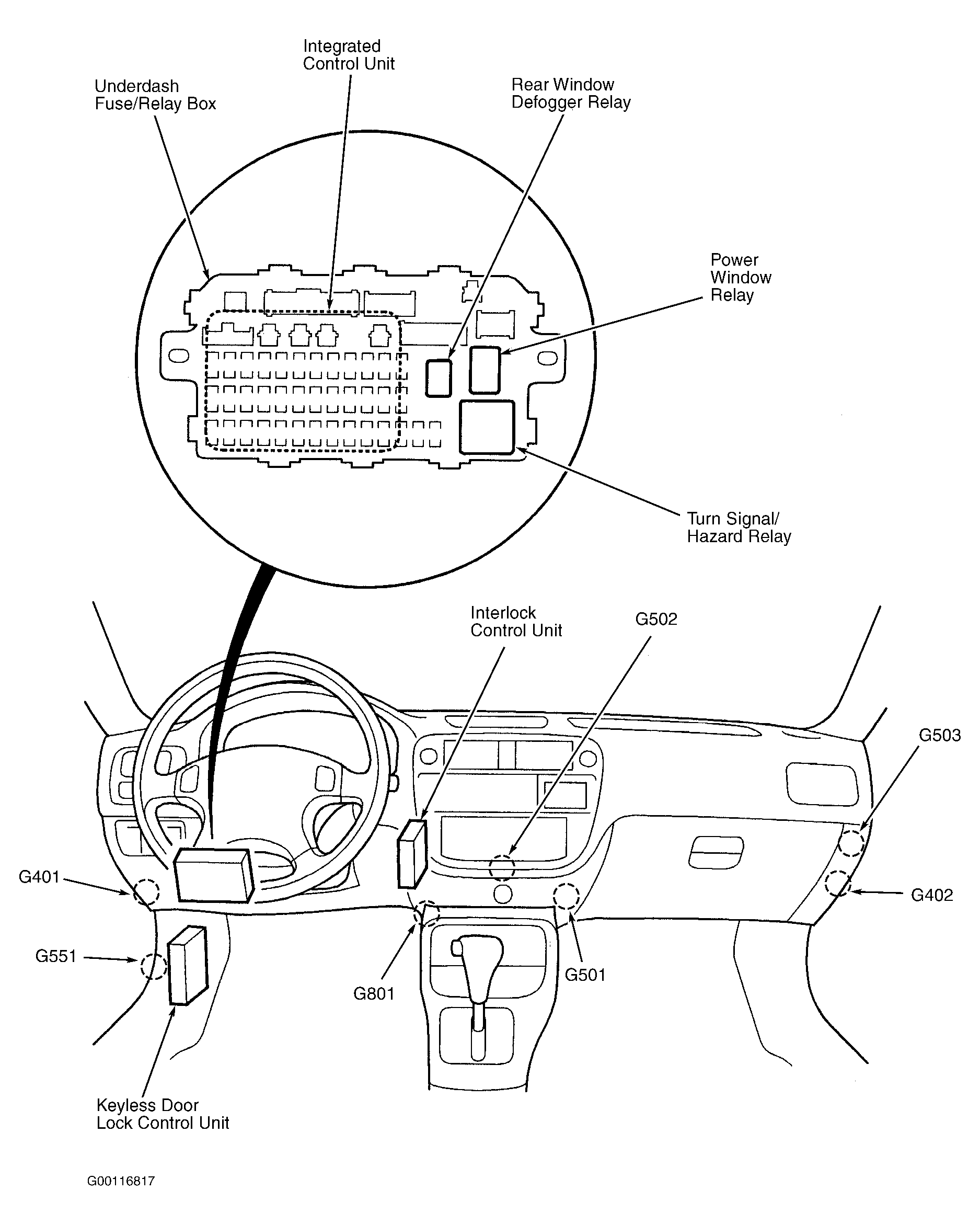

Fig 9: Left Side Of Dash

Fig 10: Right Kick Panel

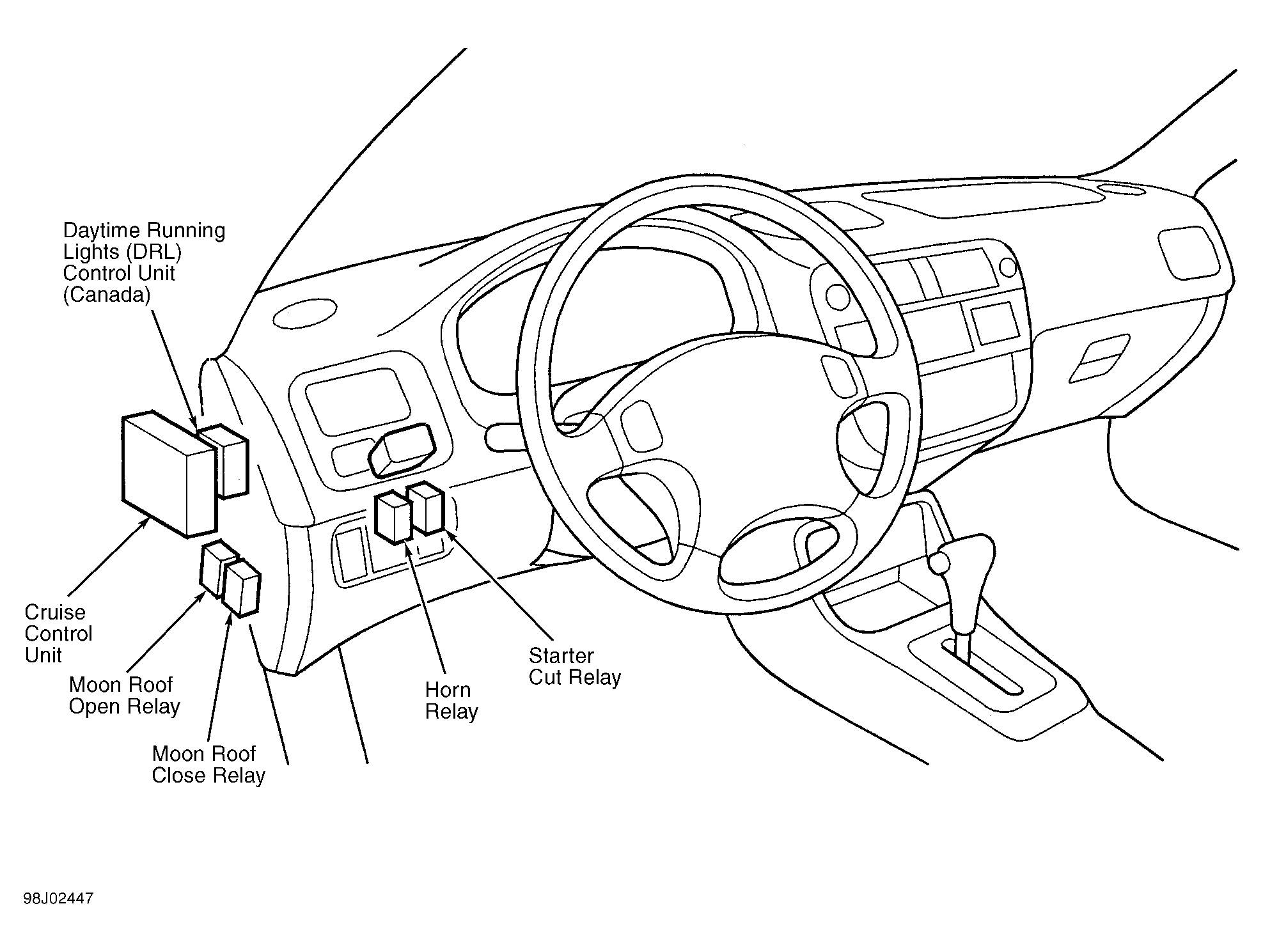

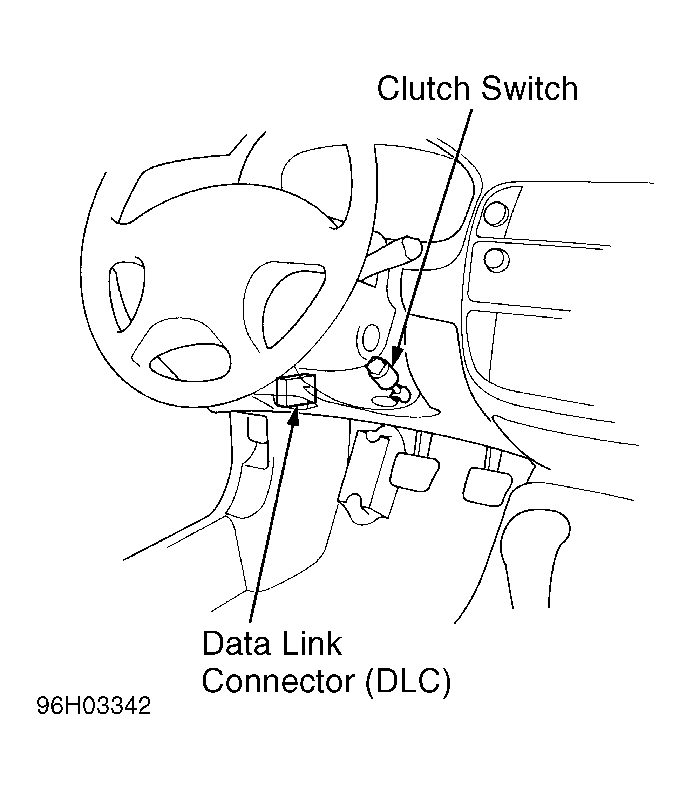

Fig 11: Left Side Of Dash

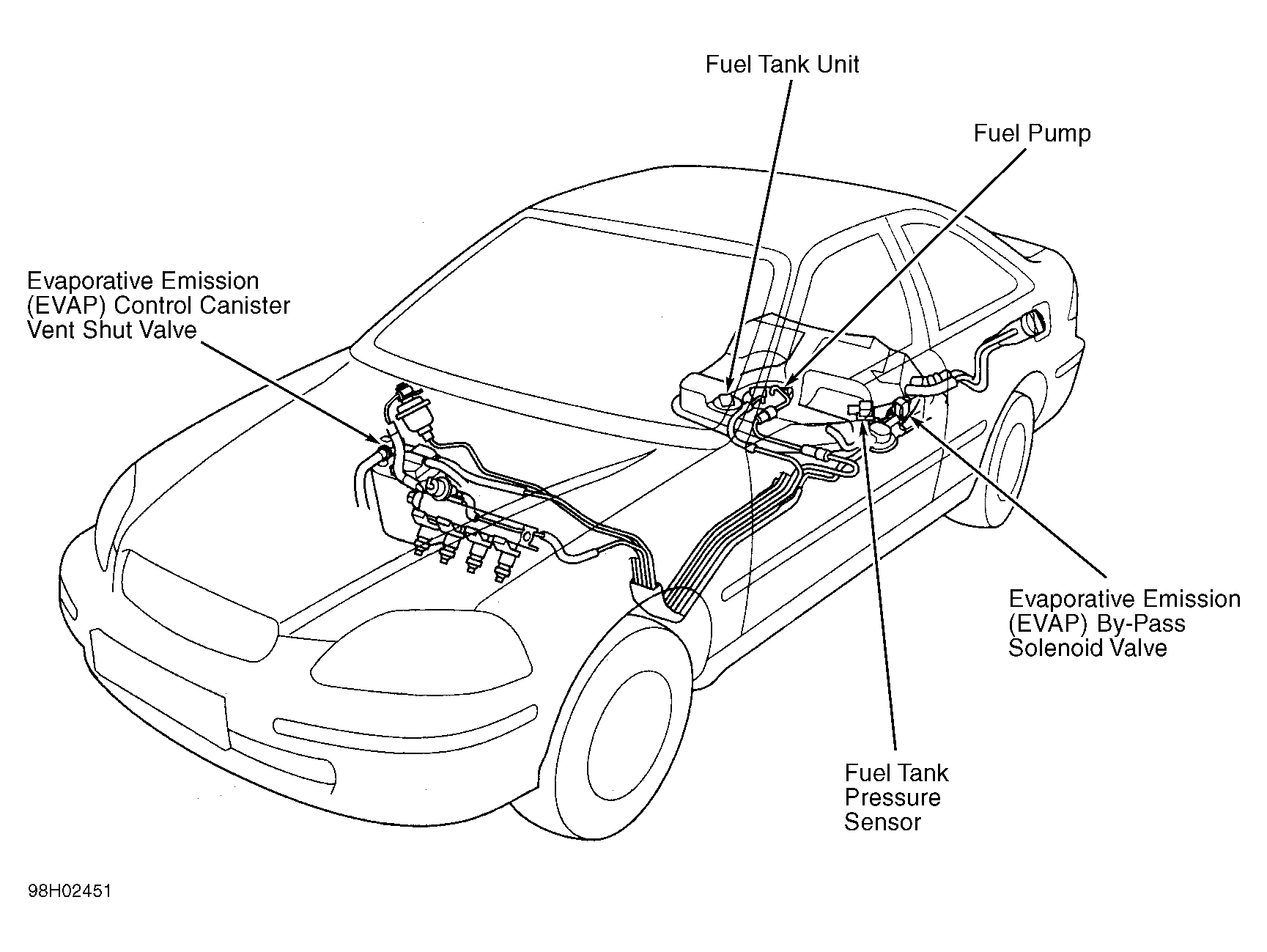

Fig 12: Left Side Of Vehicle
