Seat Removal/Installation
NOTE:
Take care not to scratch the body or tear the seat covers.

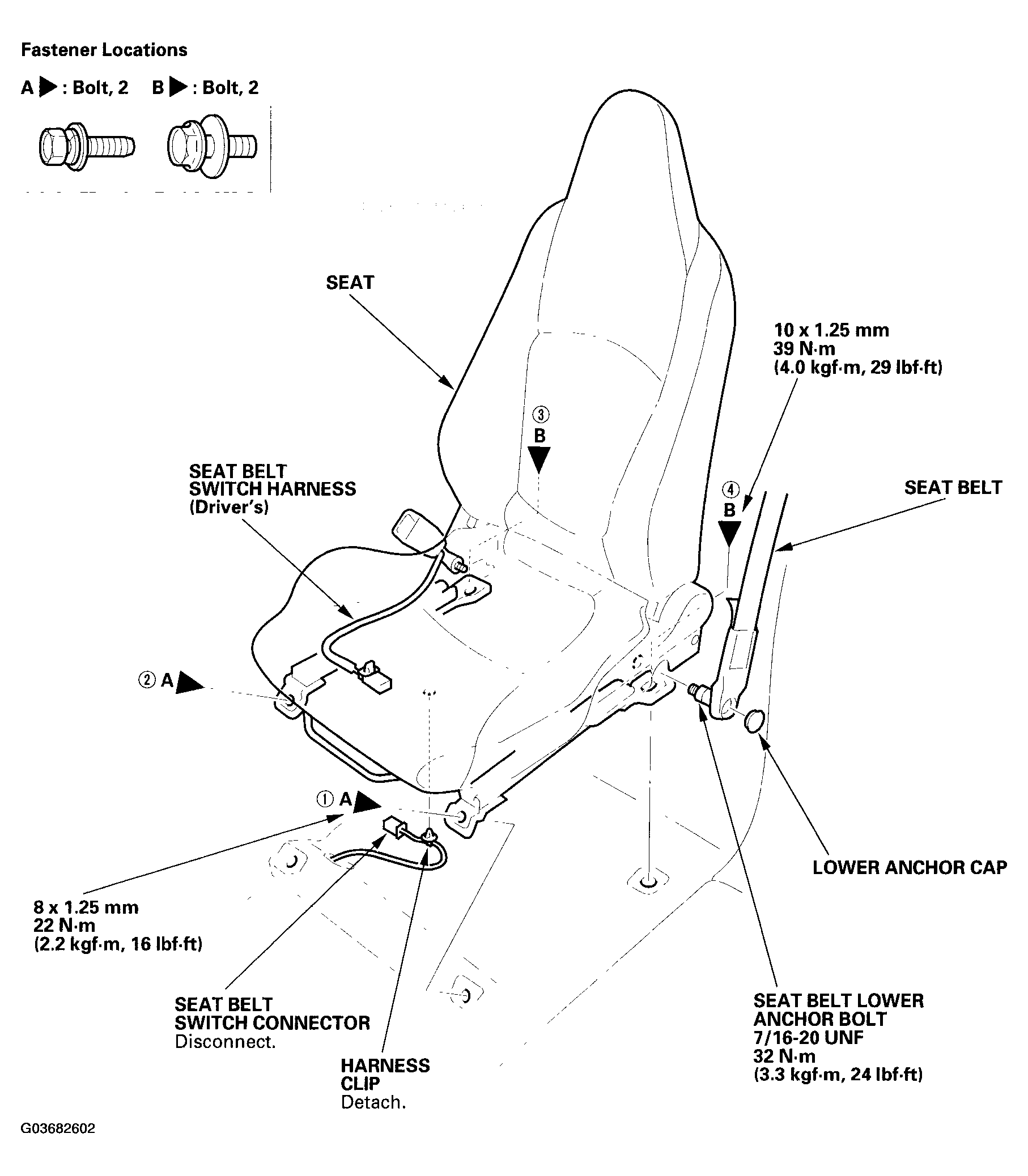

- Remove the seat as shown.
- Install the seat in the reverse order of removal, and note these items:
- Make sure the seat belt switch connector on the driver's seat is plugged in properly.
- Apply liquid thread lock to the seat mounting bolts and the anchor bolt before reinstallation.
- Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten 1 and 2, then slide it forward and tighten 3 and 4.
- Before installing the seat belt lower anchor bolt, make sure there are no twists or kinks in the seat belt.
