Motor Test

  1. Remove the door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 4P connector (A) from the driver's window motor.

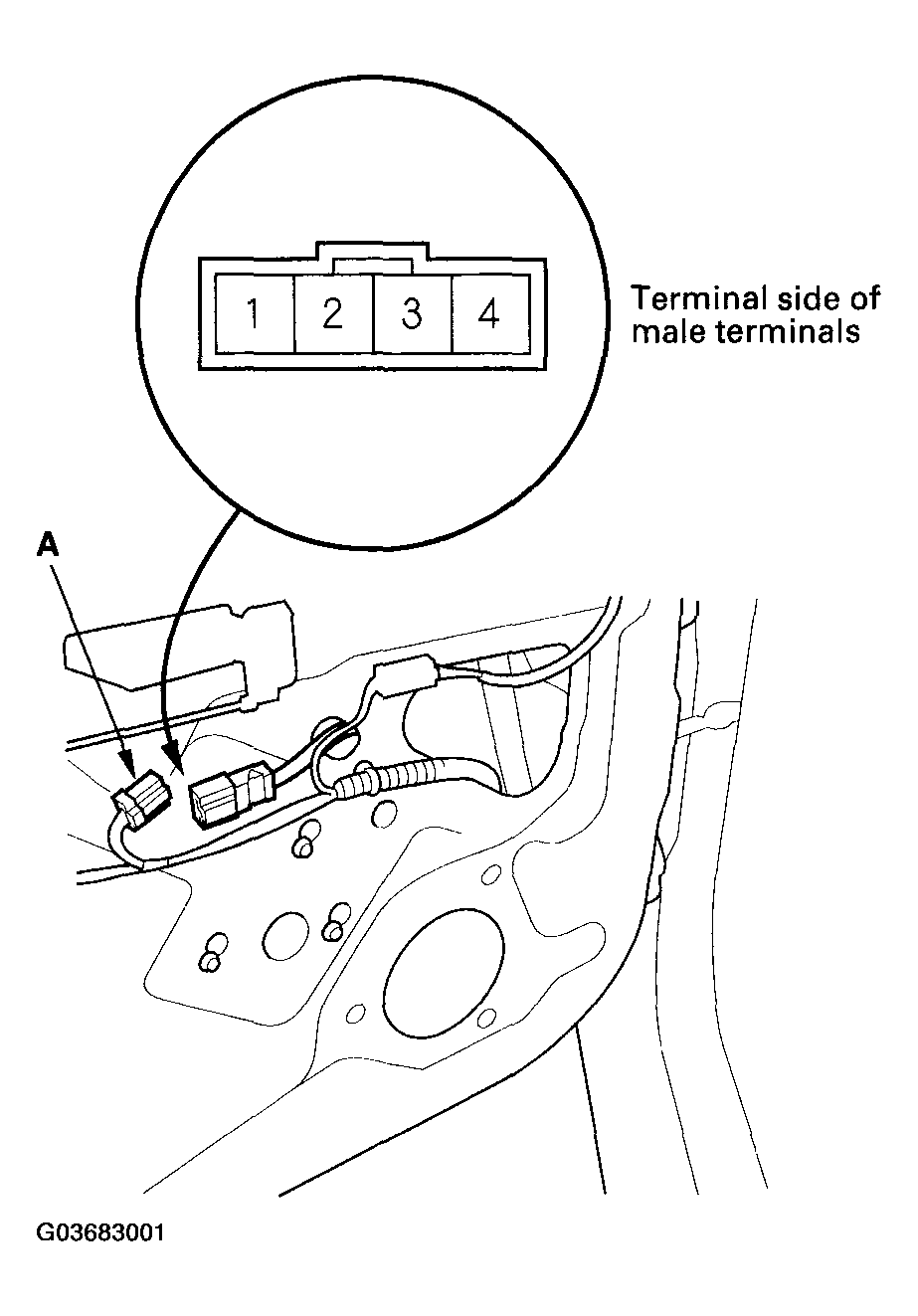

    Fig 1: Disconnecting 4P Connector From Driver's Window Motor
    G03683001Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

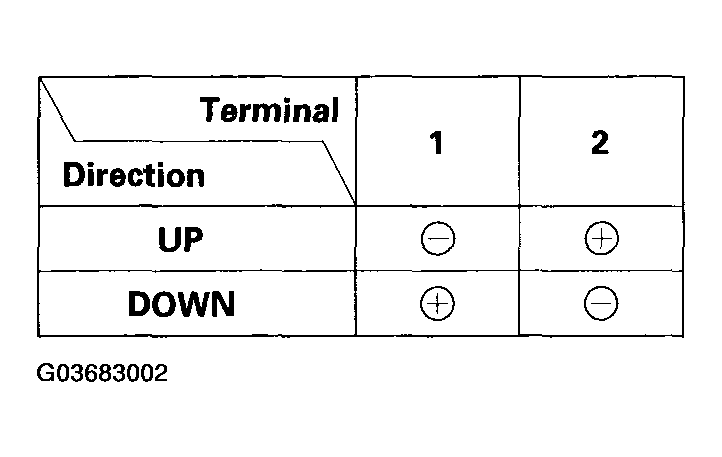

    Fig 2: Battery Connection Reference Table
    G03683002Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the motor does not run or fails to run smoothly, replace it.
