Wheel Sensor Replacement

NOTE: Install the sensors carefully to avoid twisting the wires.

Front

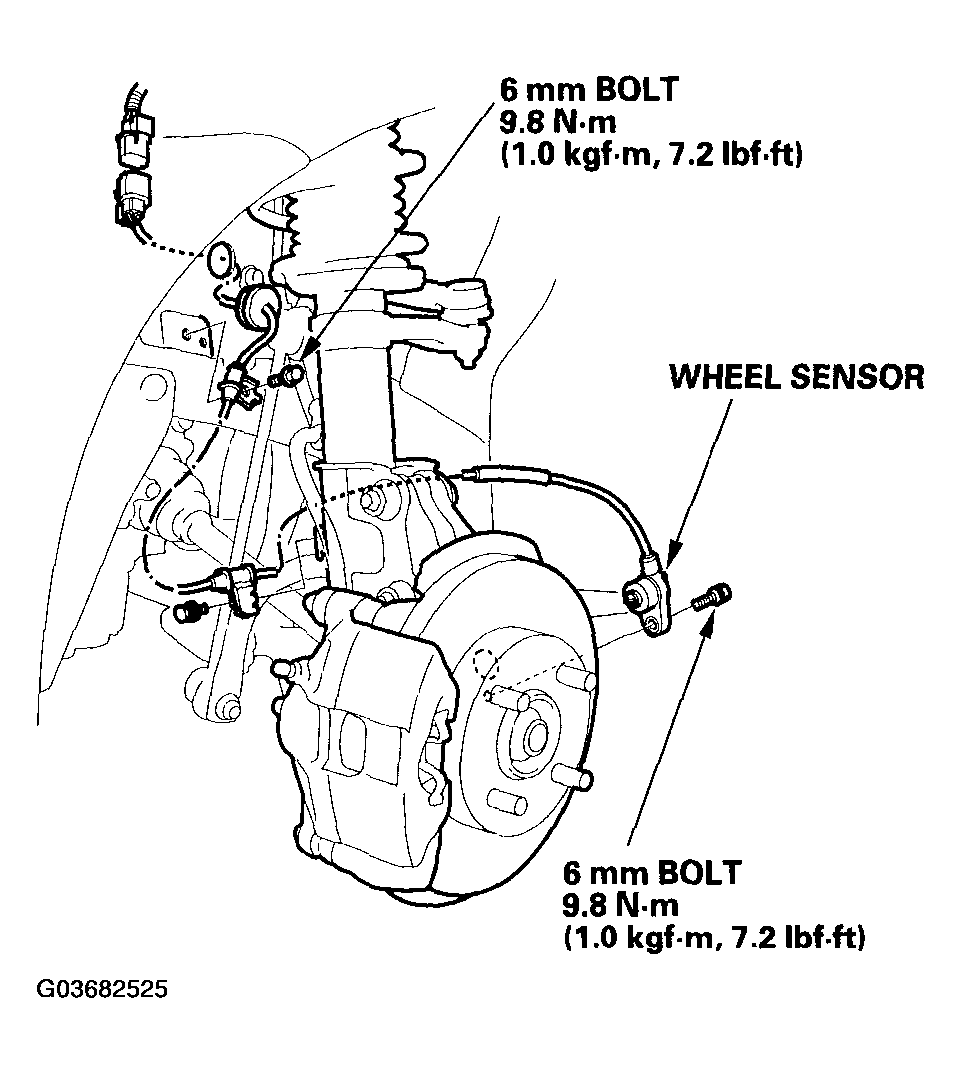

Fig 1: Wheel Sensor Front And Torque Specifications
G03682525Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

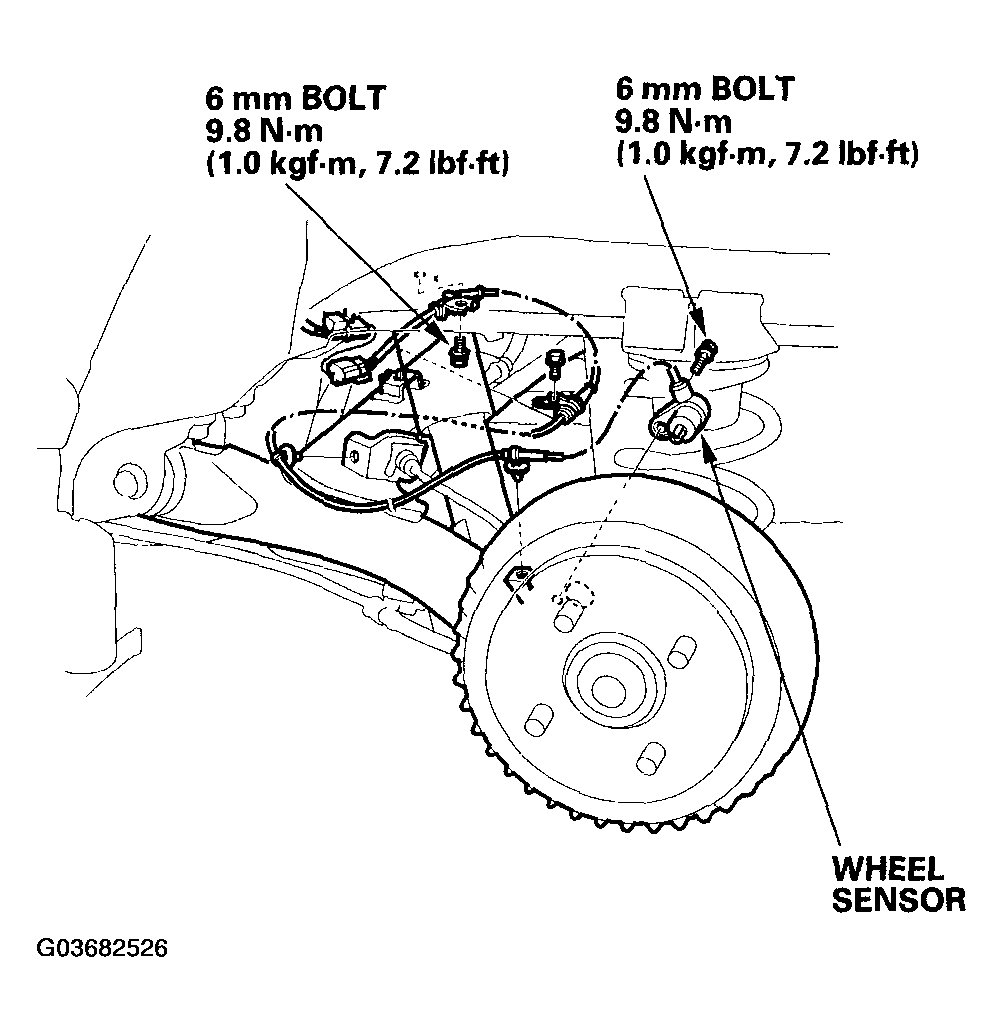

Fig 2: Identifying Wheel Sensor Rear
G03682526Courtesy of AMERICAN HONDA MOTOR CO., INC.
