Relays And Control Unit Locations: Dashboard

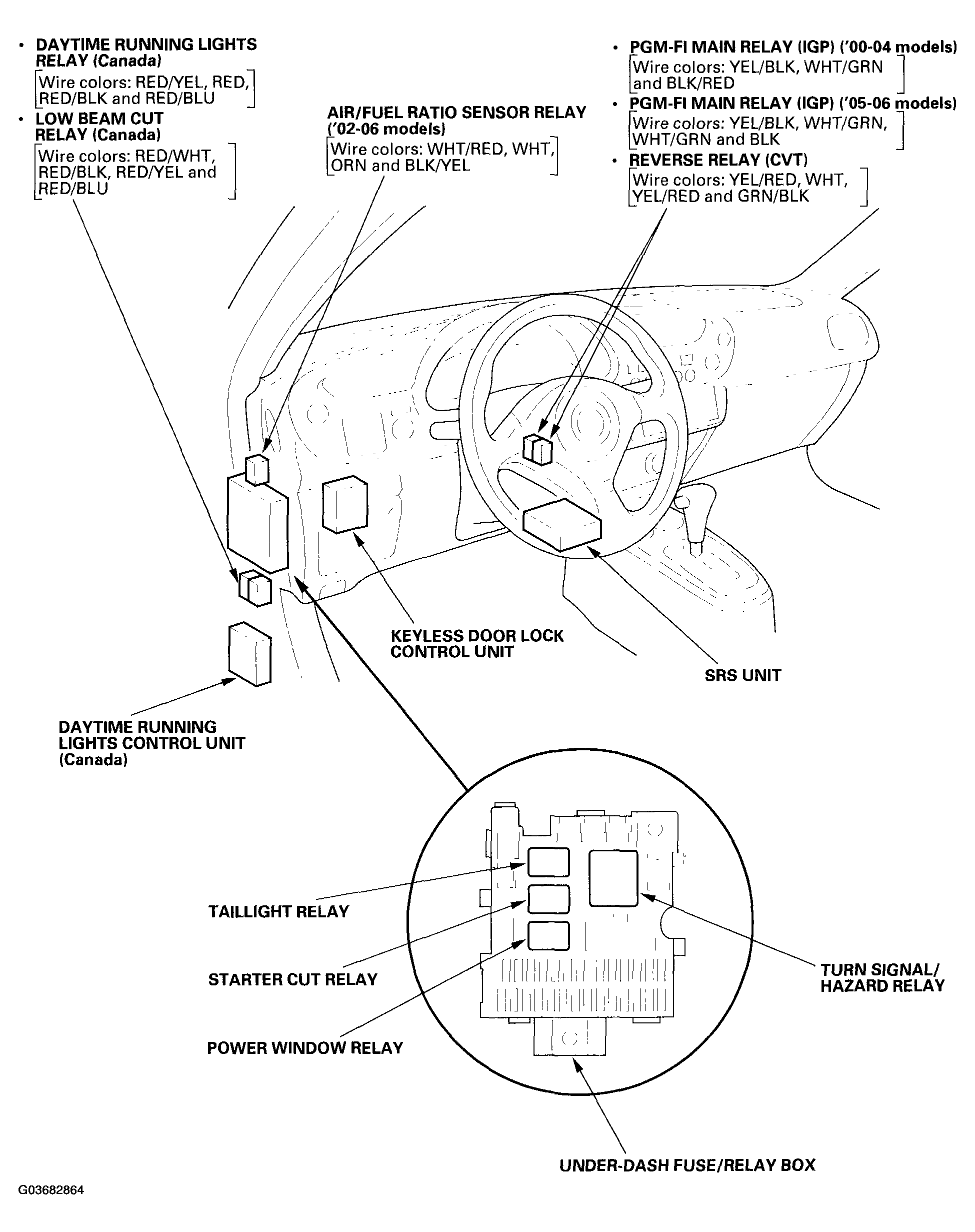

Fig 1: Identifying Dashboard Relay And Control Unit Locations (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

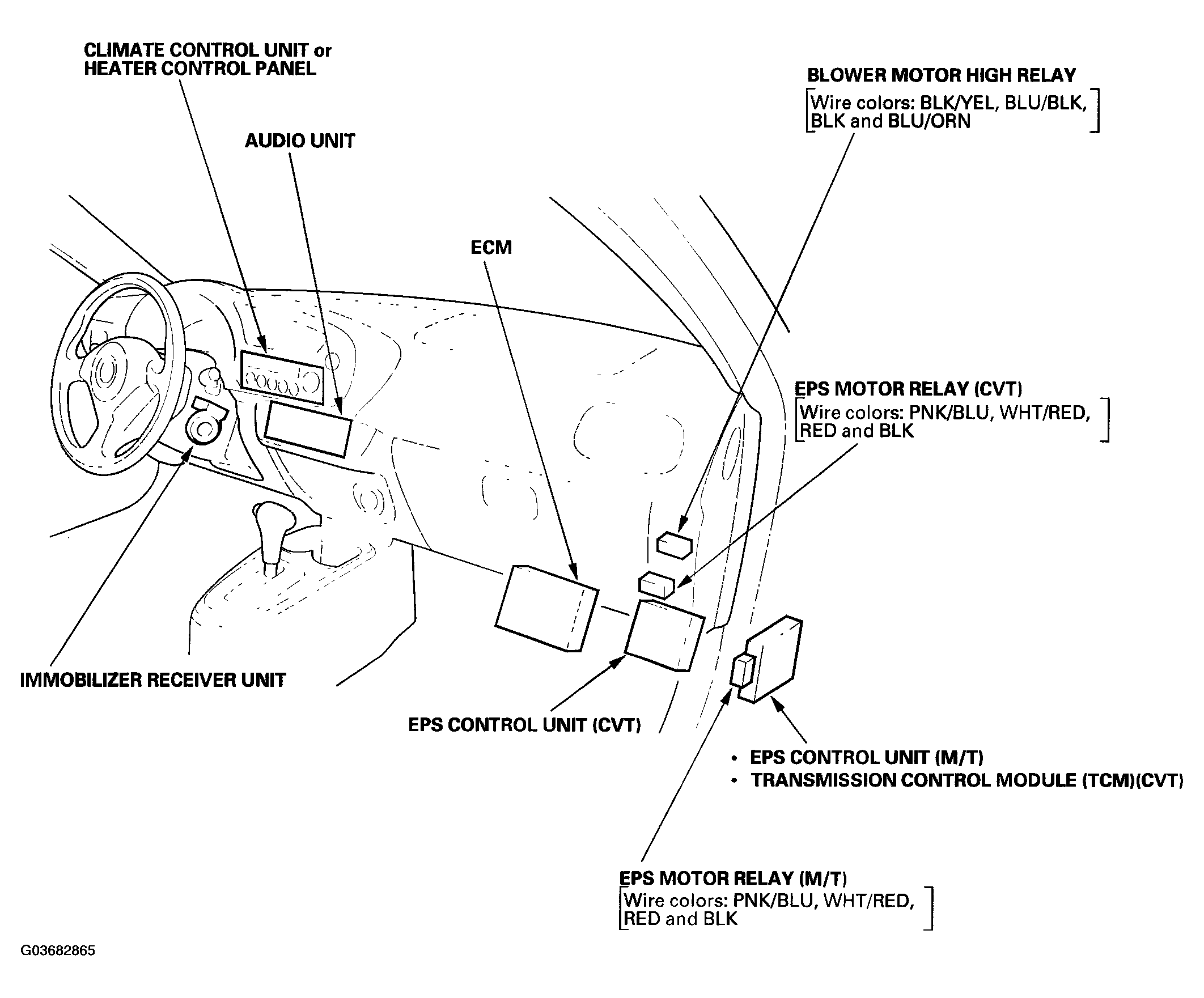

Fig 2: Identifying Dashboard Relay And Control Unit Locations (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
