Instrument Panel Removal/Installation
Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program; call 888-424-6857
SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.
- Make sure you have the anti-theft code for the radio, and then write down the audio presets.
- Disconnect the negative cable from the battery, and wait at least 3 minutes before beginning work.
- Remove driver's airbag, the steering wheel, and the steering column upper cover (see STEERING COLUMN REMOVAL AND INSTALLATION ).

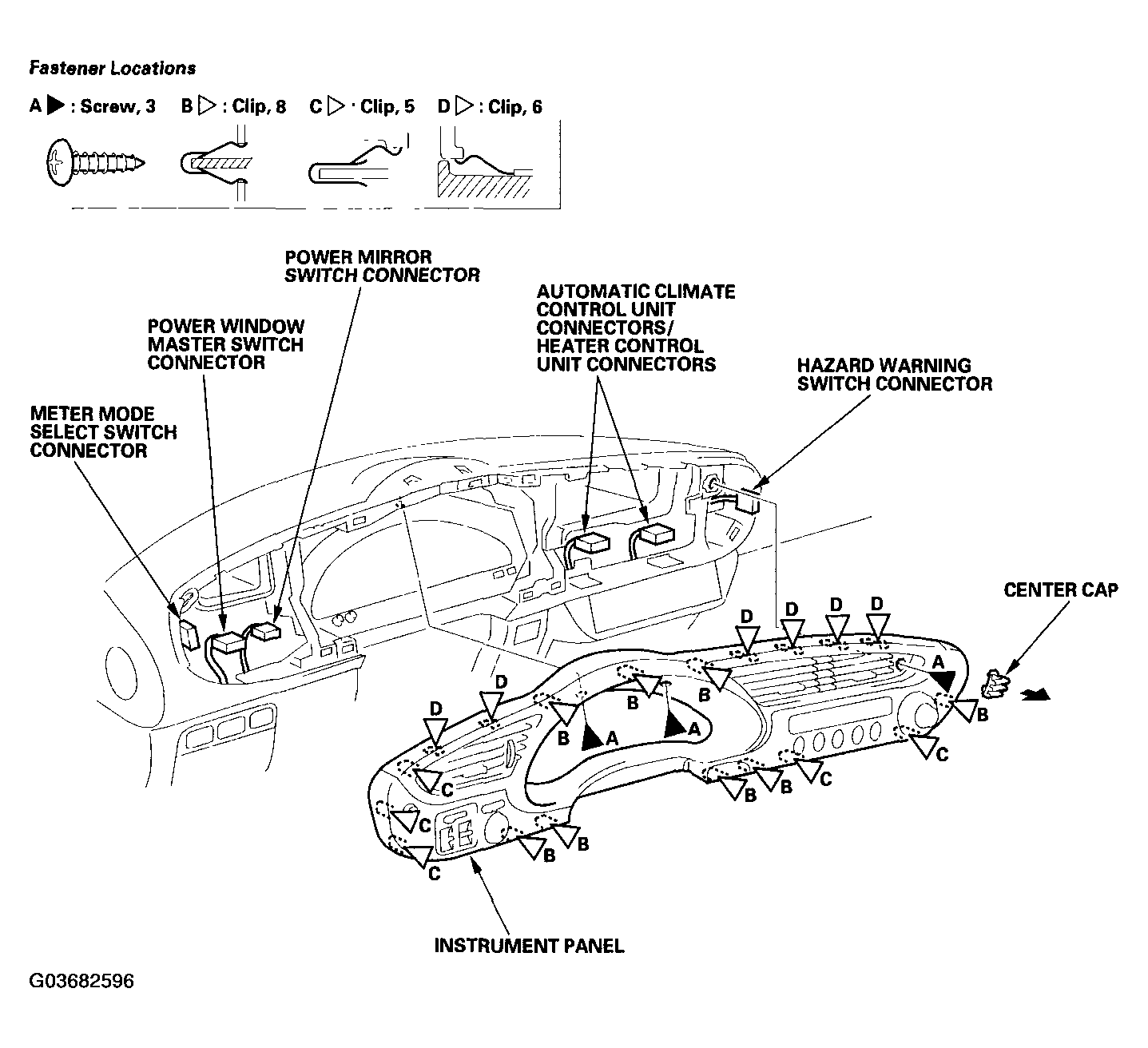

- Remove the instrument panel as shown.
- Install the instrument panel in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connectors are plugged in properly.
- Push the clips into place securely.
- Reconnect the negative cable to the battery.
- Enter the anti-theft code for the radio, then enter the audio presets.
- Reset the clock.
- Do the ECM idle learn procedure (see ECM IDLE LEARN PROCEDURE ).
