Honda
>>
2000
>>
Insight
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Circuit Diagram
Circuit Diagram

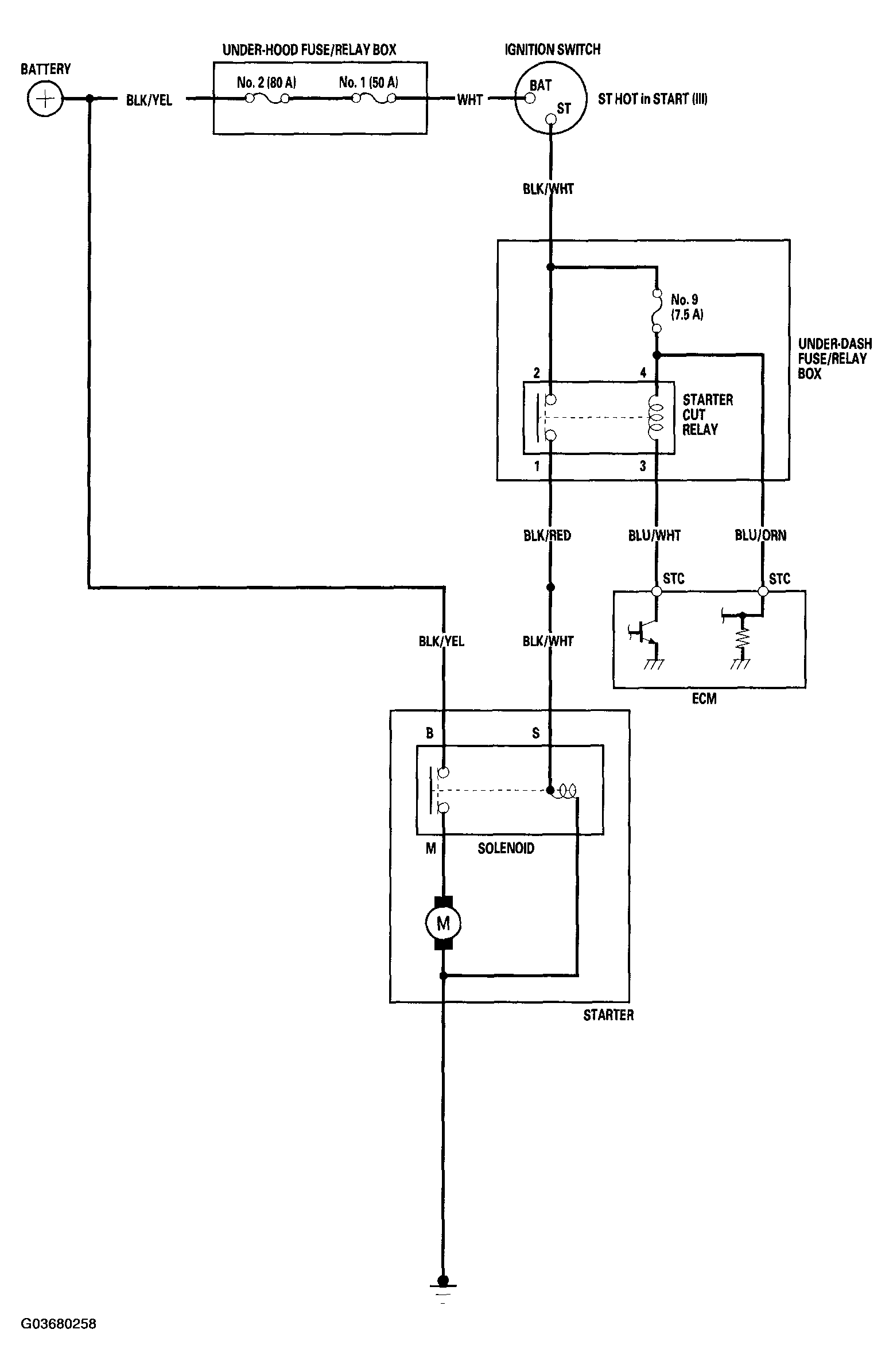

Fig 1: Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
