Starter Overhaul: Disassembly/Reassembly

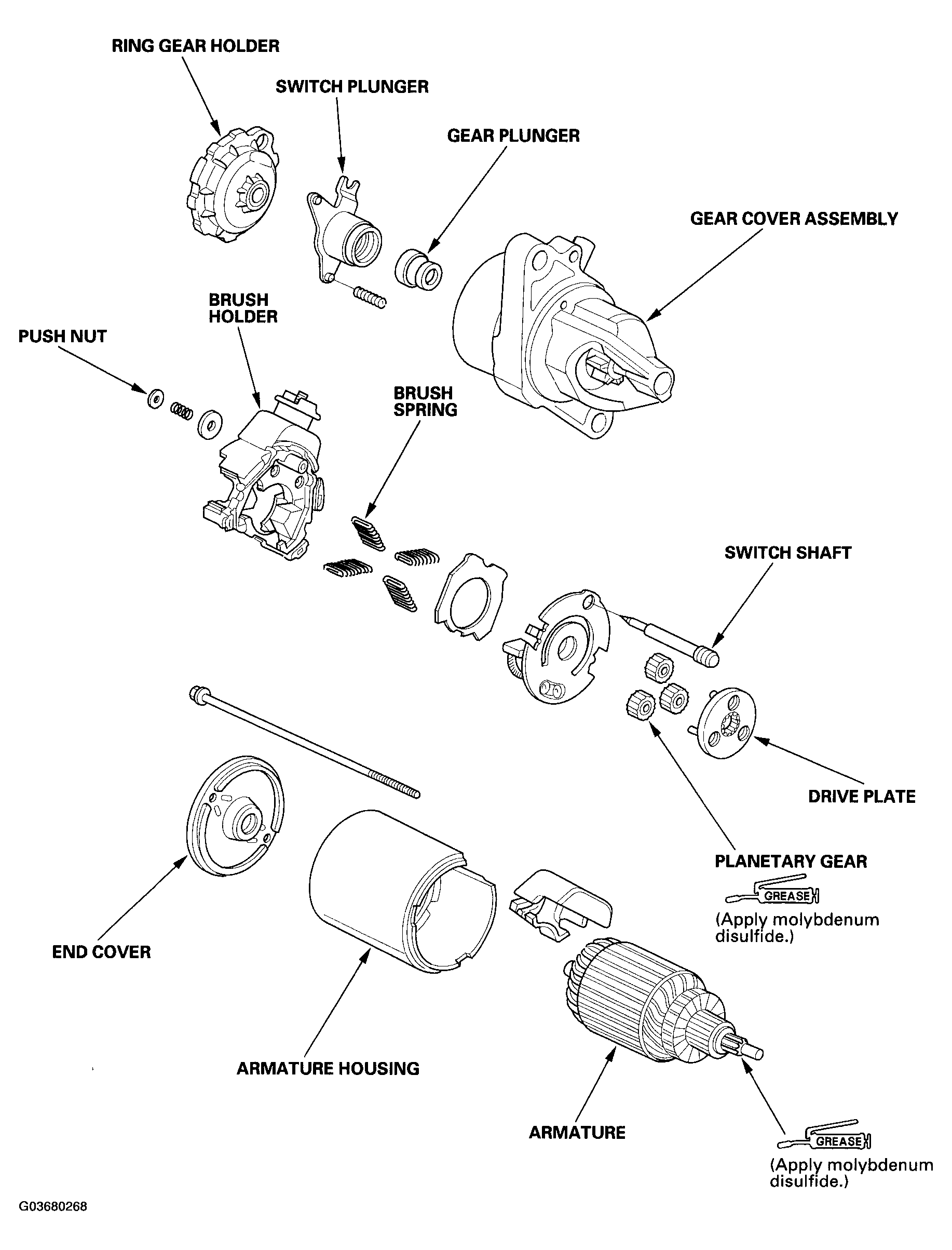

Fig 1: Exploded View Of Starter

G03680268

Courtesy of AMERICAN HONDA MOTOR CO., INC.
