CKP Sensor Replacement

  1. Disconnect the CKP sensor connector, then remove the CKP sensor (A).

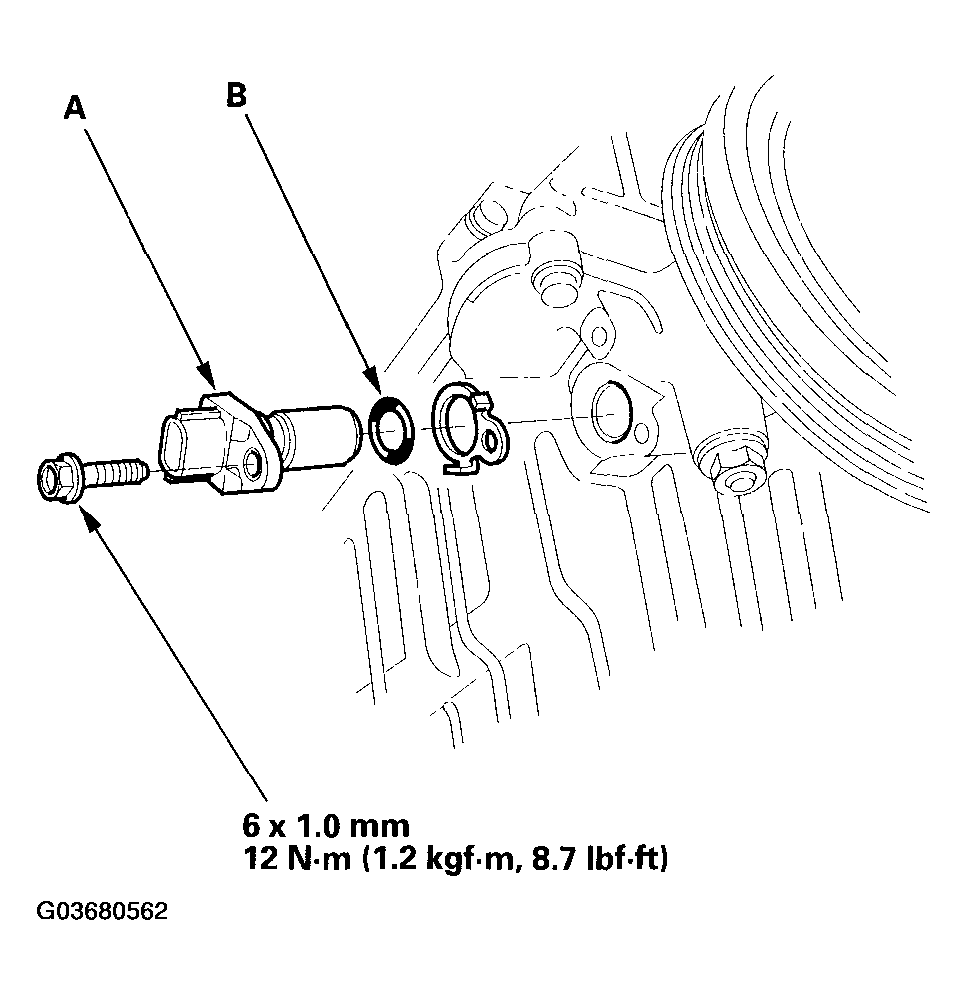

    Fig 1: Removing CKP Sensor And Torque Specifications
    G03680562Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new CKP sensor with a new O-ring (B).
