Exploded View: Notes

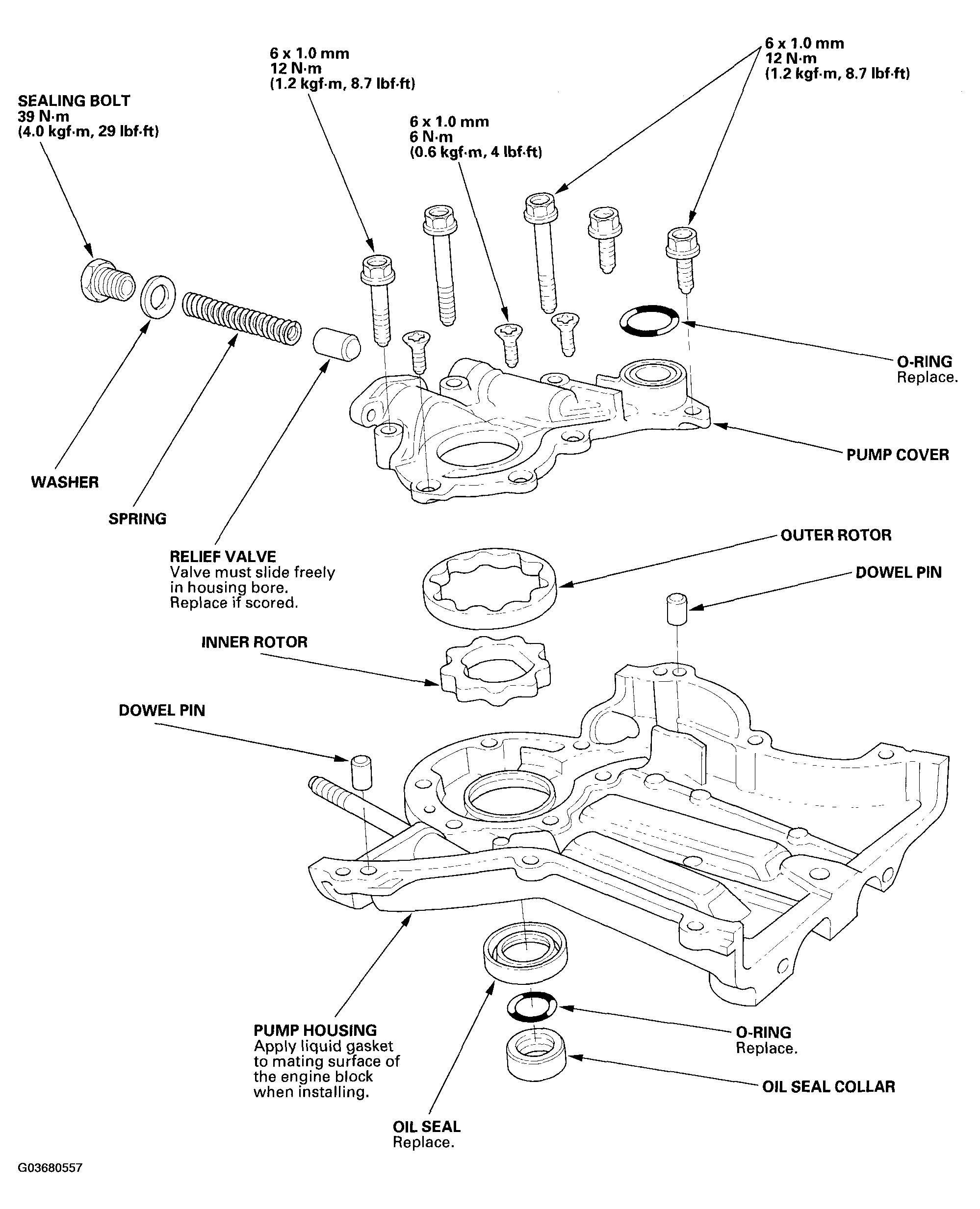

Fig 1: Exploded View Of Oil Pump
G03680557Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required
