Sliding Door Lock Remote Control Replacement

NOTE: Put on gloves to protect your hands.
  1. Remove the sliding door outer handle (see Sliding Door Outer Handle Replacement  ).
  2. Disconnect the door latch cable (A) and door auto-close cable or lower roller latch cable (B). If equipped, disconnect the door lock actuator connector (C) and power release actuator connector (D). Then remove the door lock remote control (E) through the hole in the door. Take care not to bend any of the cables.

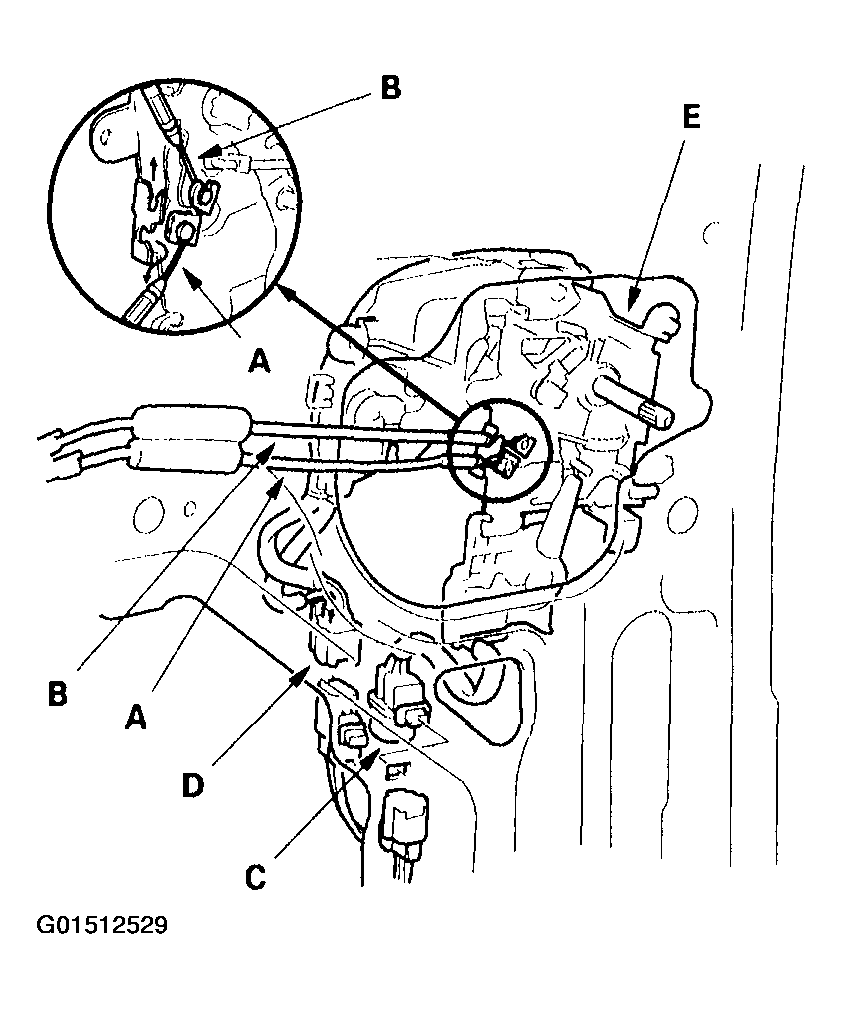

    Fig 1: Disconnecting Door Latch Cable
    G01512529Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the door lock remote control in the reverse order of removal, and note these items:
    • Make sure the actuator connector(s) are plugged in properly, and each cable is connected securely.
    • Make sure the door locks and opens properly.
    • When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its perimeter.
  4. For EX and EX-L models: Re-home the power sliding doors (see RE-HOMING THE POWER SLIDING DOORS ).
