TCS Switch Test

  1. Remove the TCS switch (A) from the switch panel.

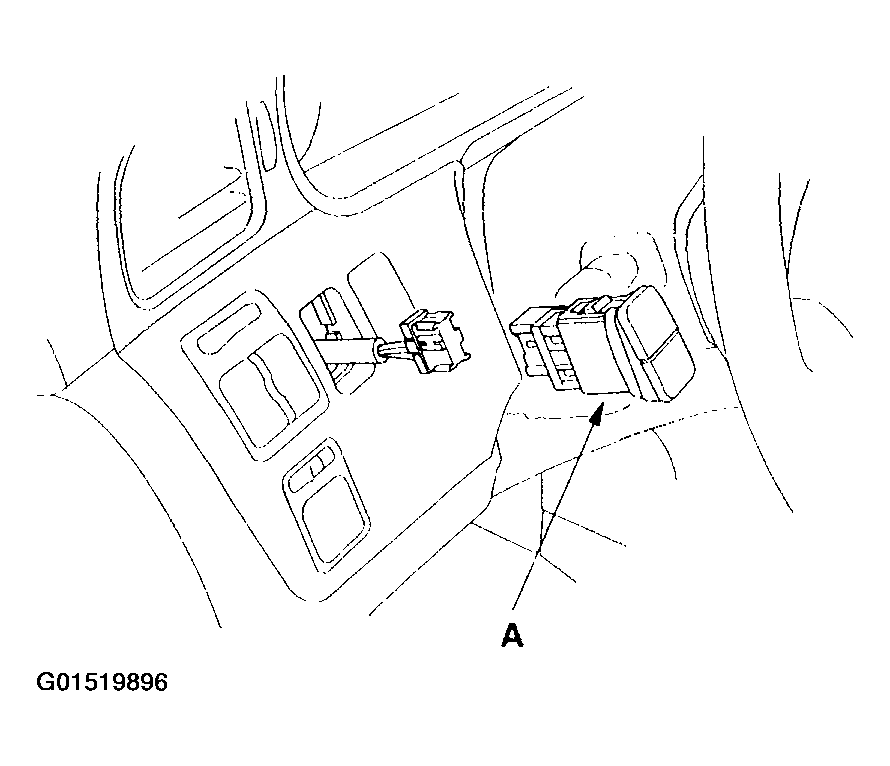

    Fig 1: Removing TCS Switch
    G01519896Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check for continuity between terminal No. 5 and No. 6. There should be continuity when the TCS switch is pushed.

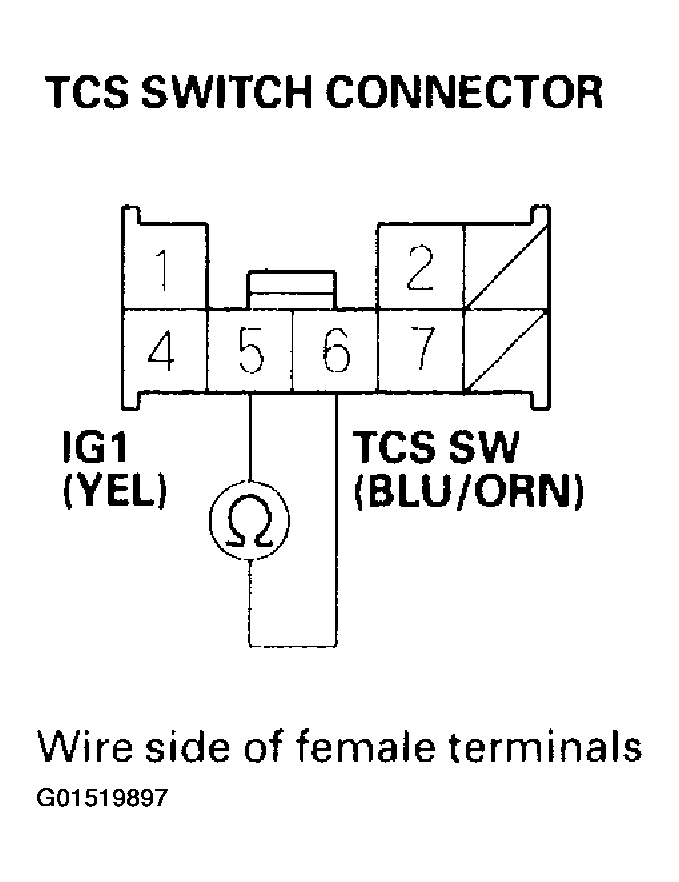

    Fig 2: Checking Continuity Between Terminal No. 5 & No. 6
    G01519897Courtesy of AMERICAN HONDA MOTOR CO., INC.
