Component Location Index

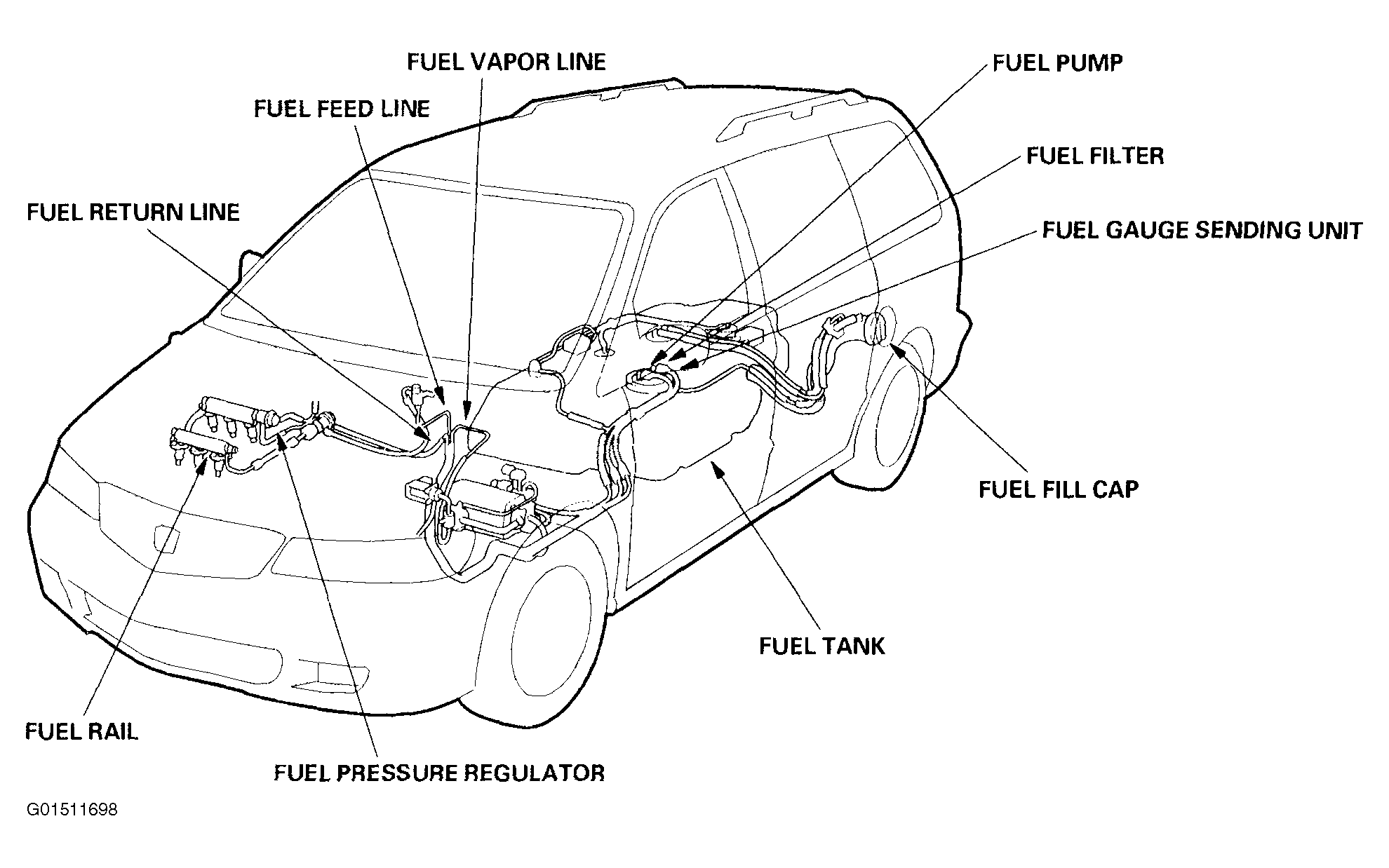

Fig 1: Identifying Component Location ('99-00 models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

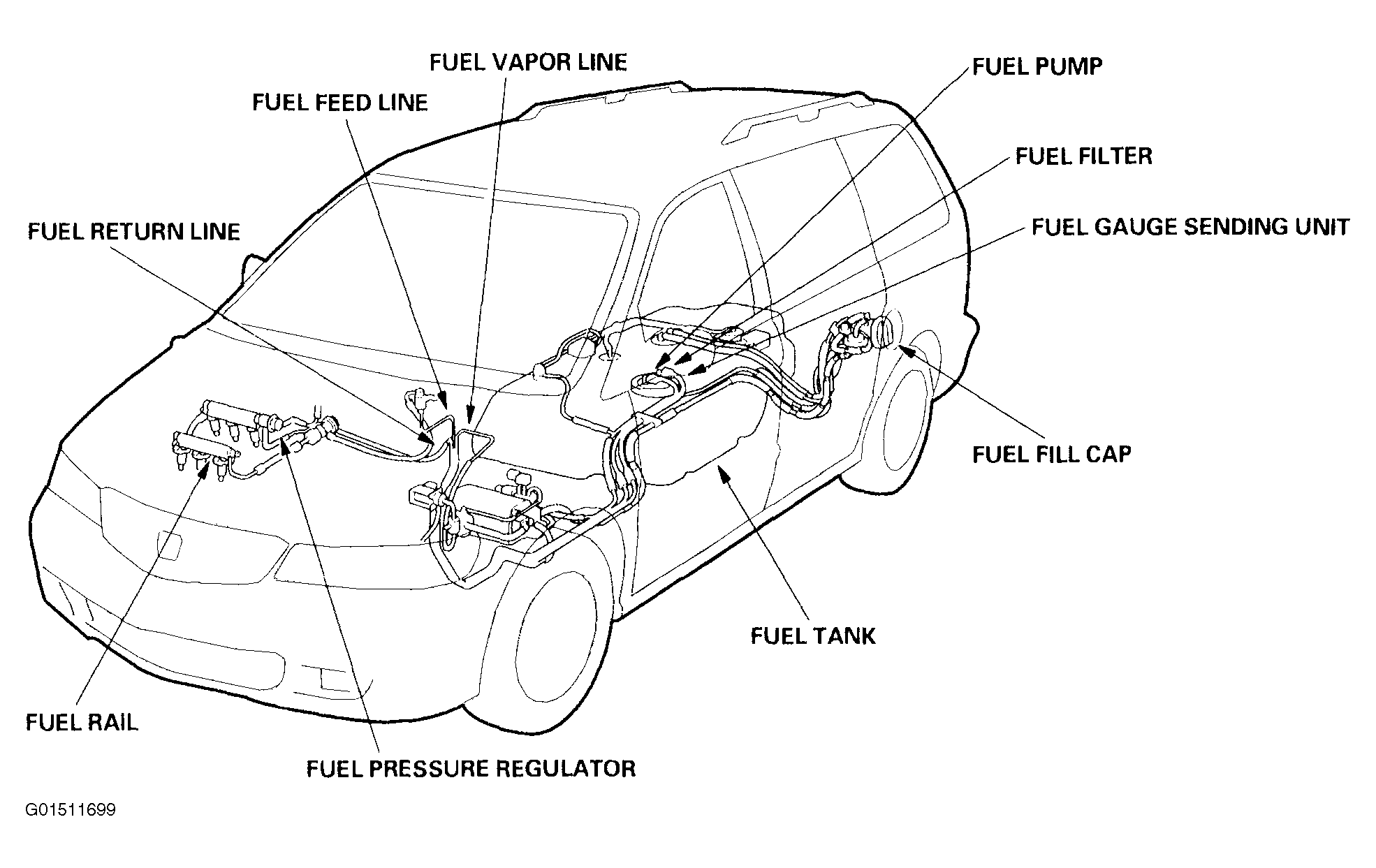

Fig 2: Identifying Component Location ('01 model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

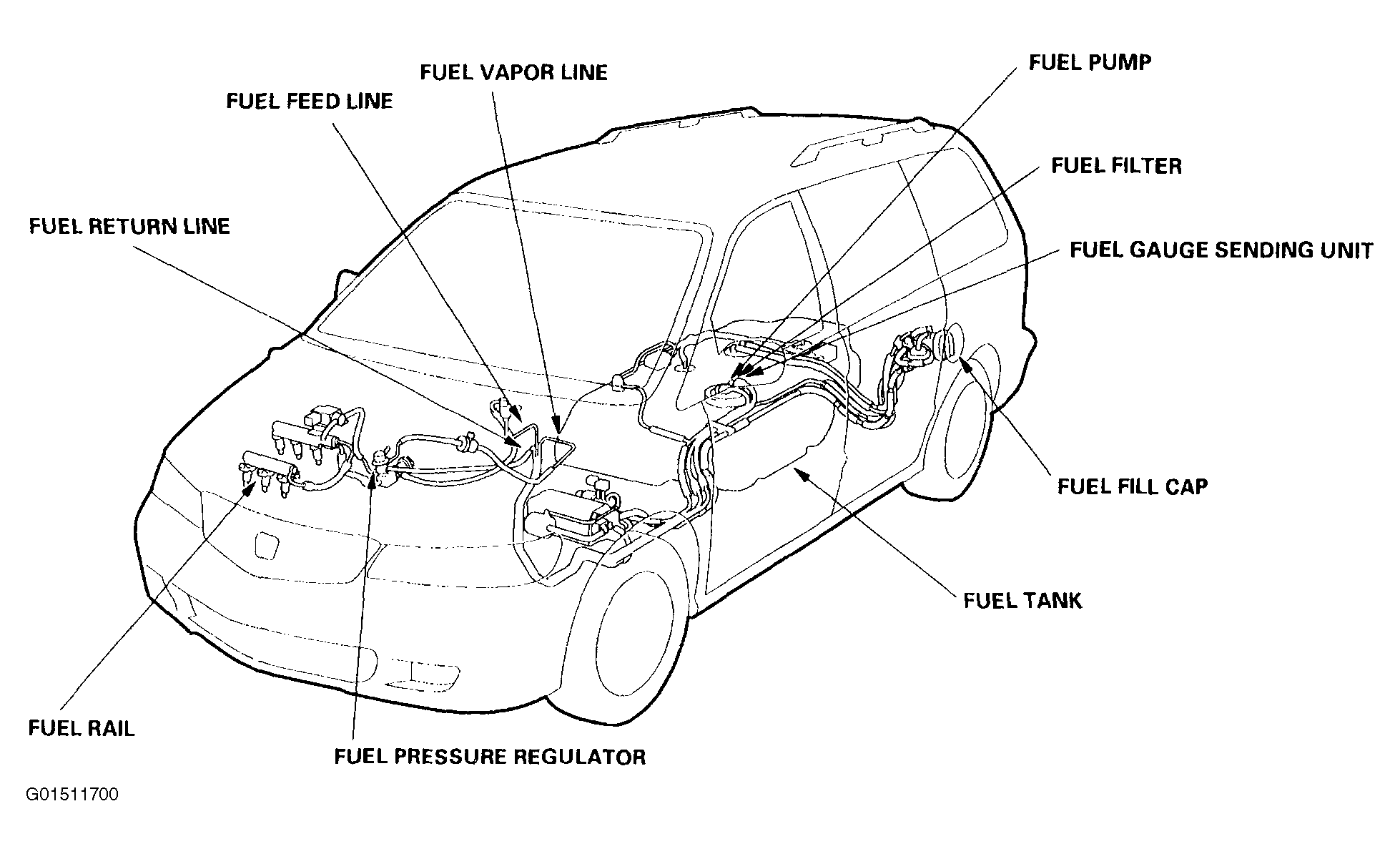

Fig 3: Identifying Component Location ('02-04 models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

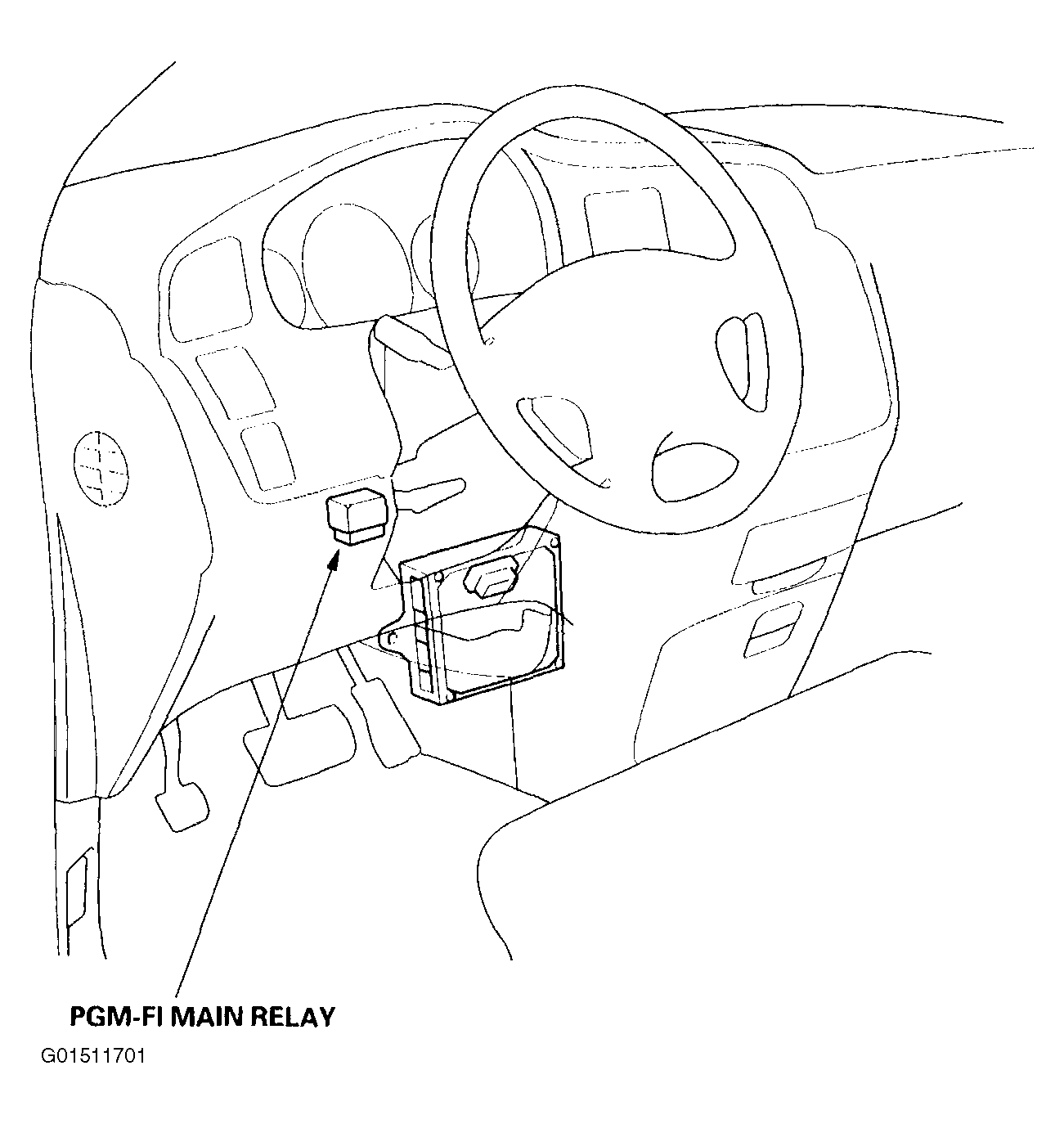

Fig 4: Identifying PGM-FI Main Relay

Courtesy of AMERICAN HONDA MOTOR CO., INC.
