Component Location Index

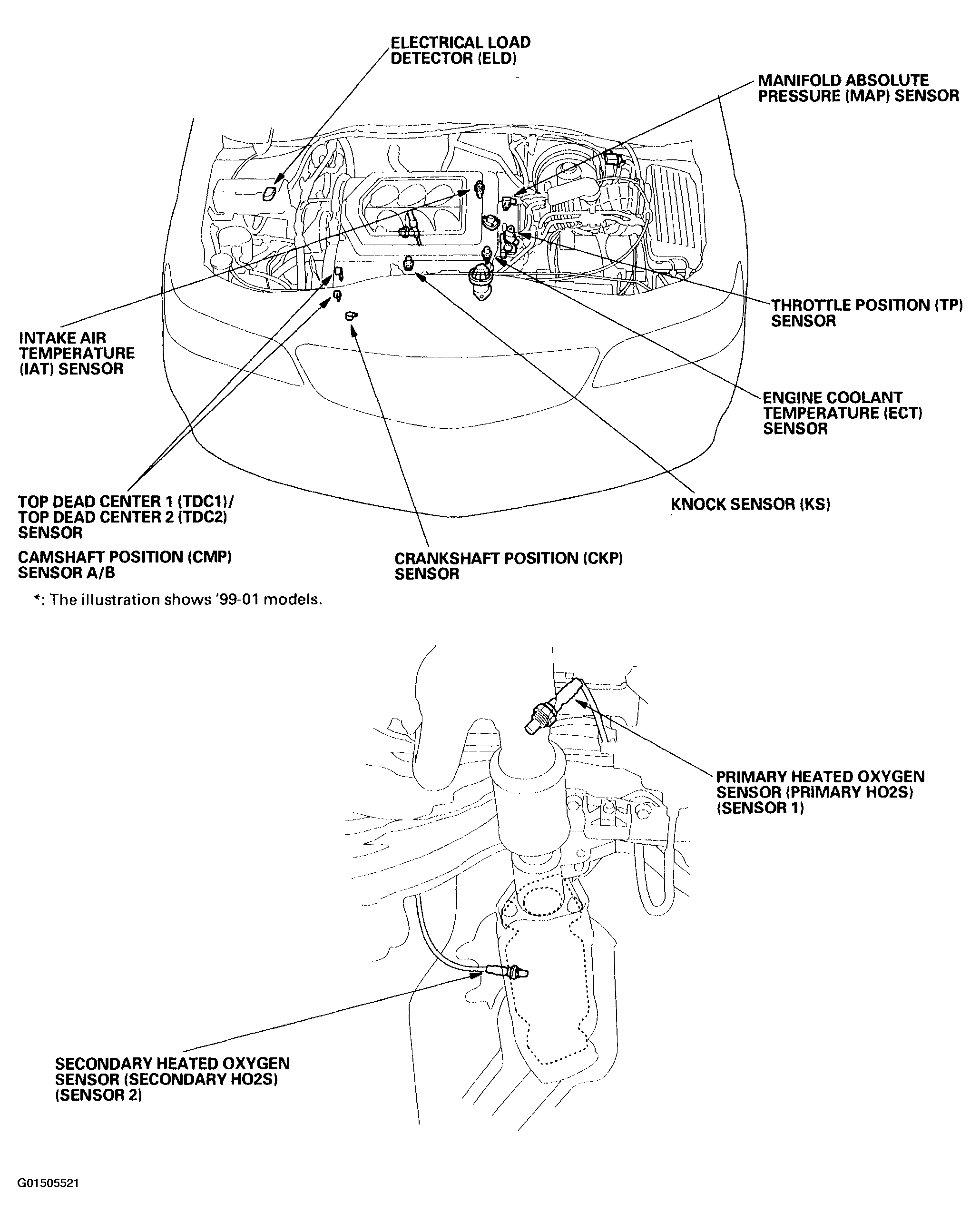

Fig 1: Identifying PGM-FI System
G01505521Courtesy of AMERICAN HONDA MOTOR CO., INC.

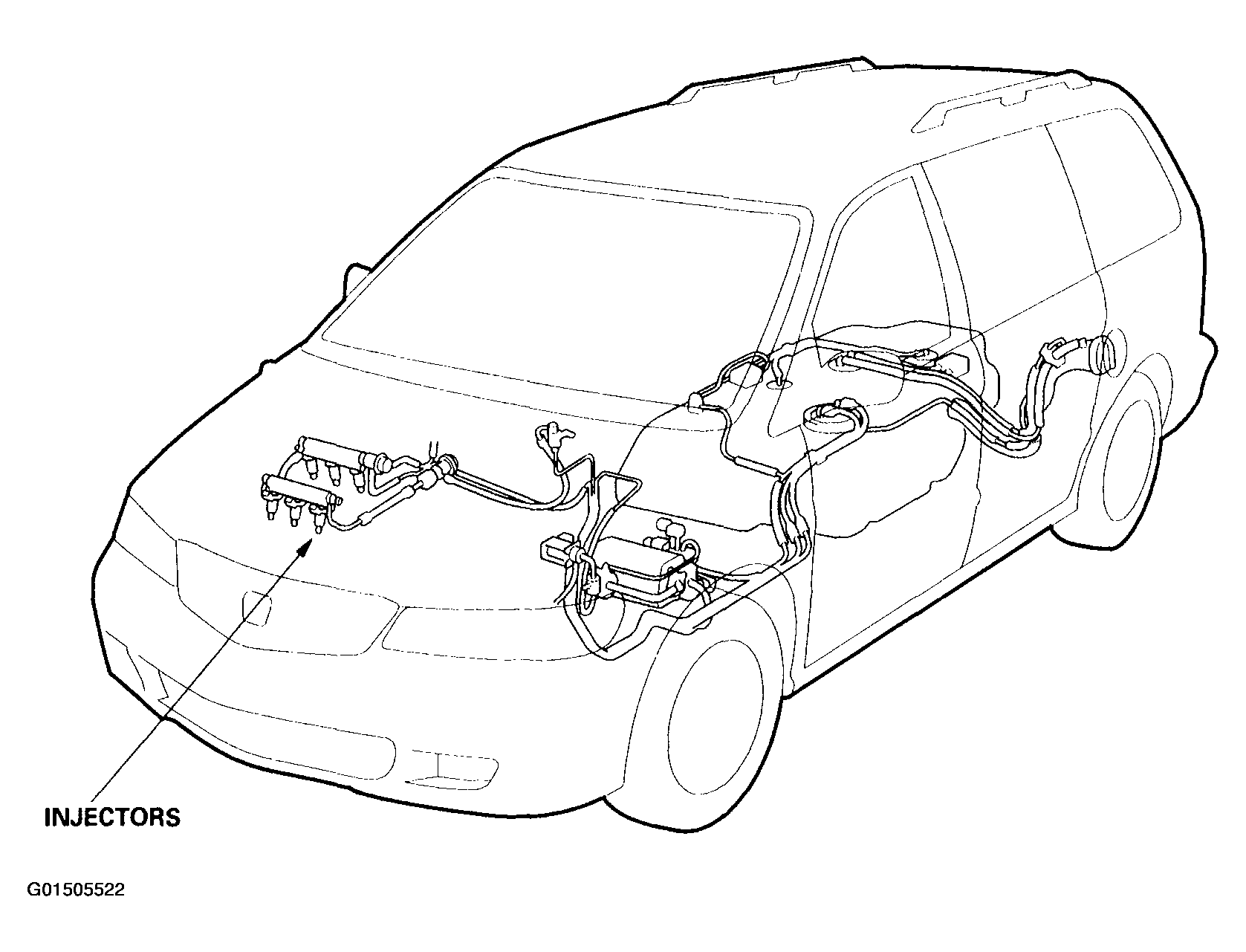

Fig 2: Identifying Injectors ('99-00 models)
G01505522Courtesy of AMERICAN HONDA MOTOR CO., INC.

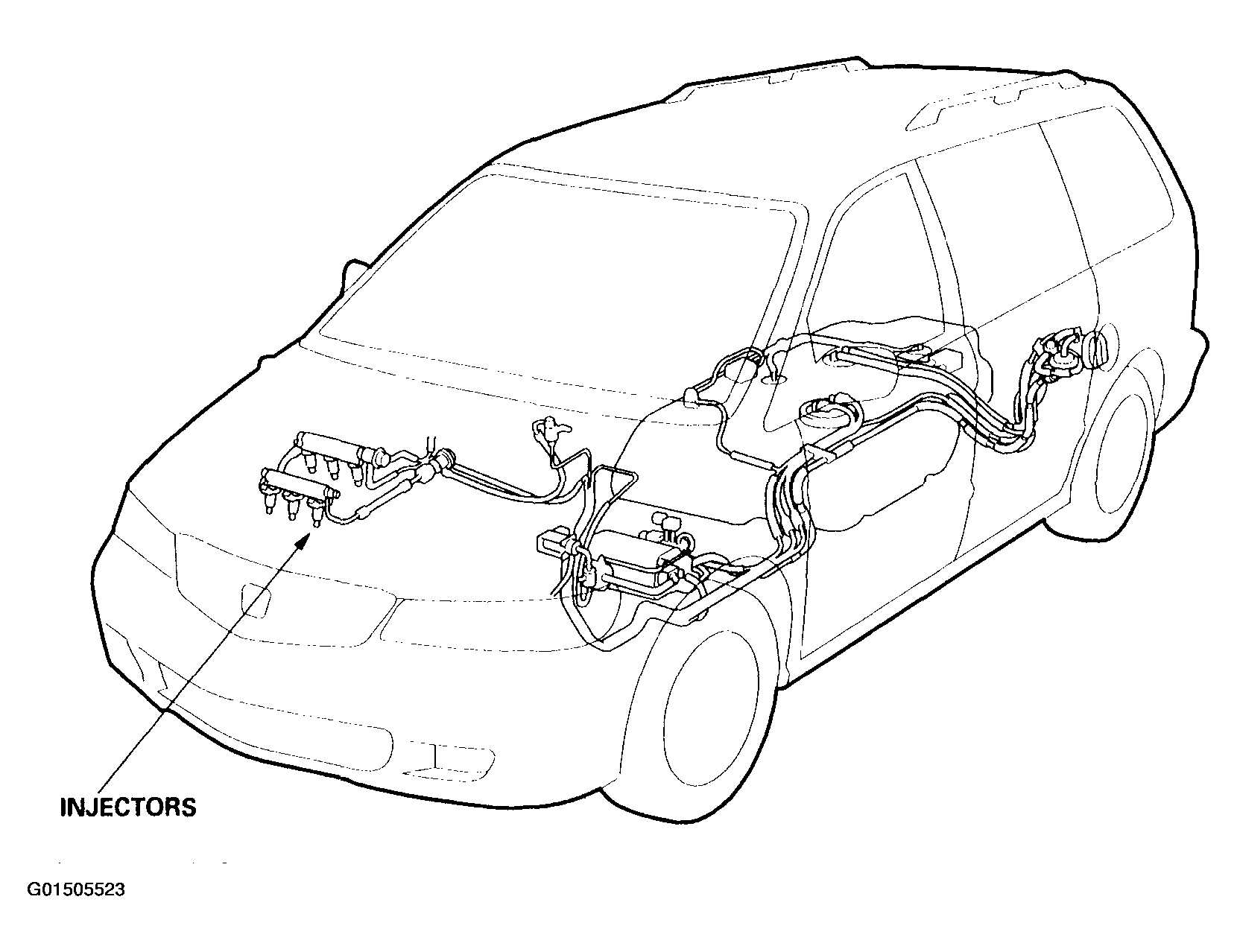

Fig 3: Identifying Injectors ('01 models)
G01505523Courtesy of AMERICAN HONDA MOTOR CO., INC.

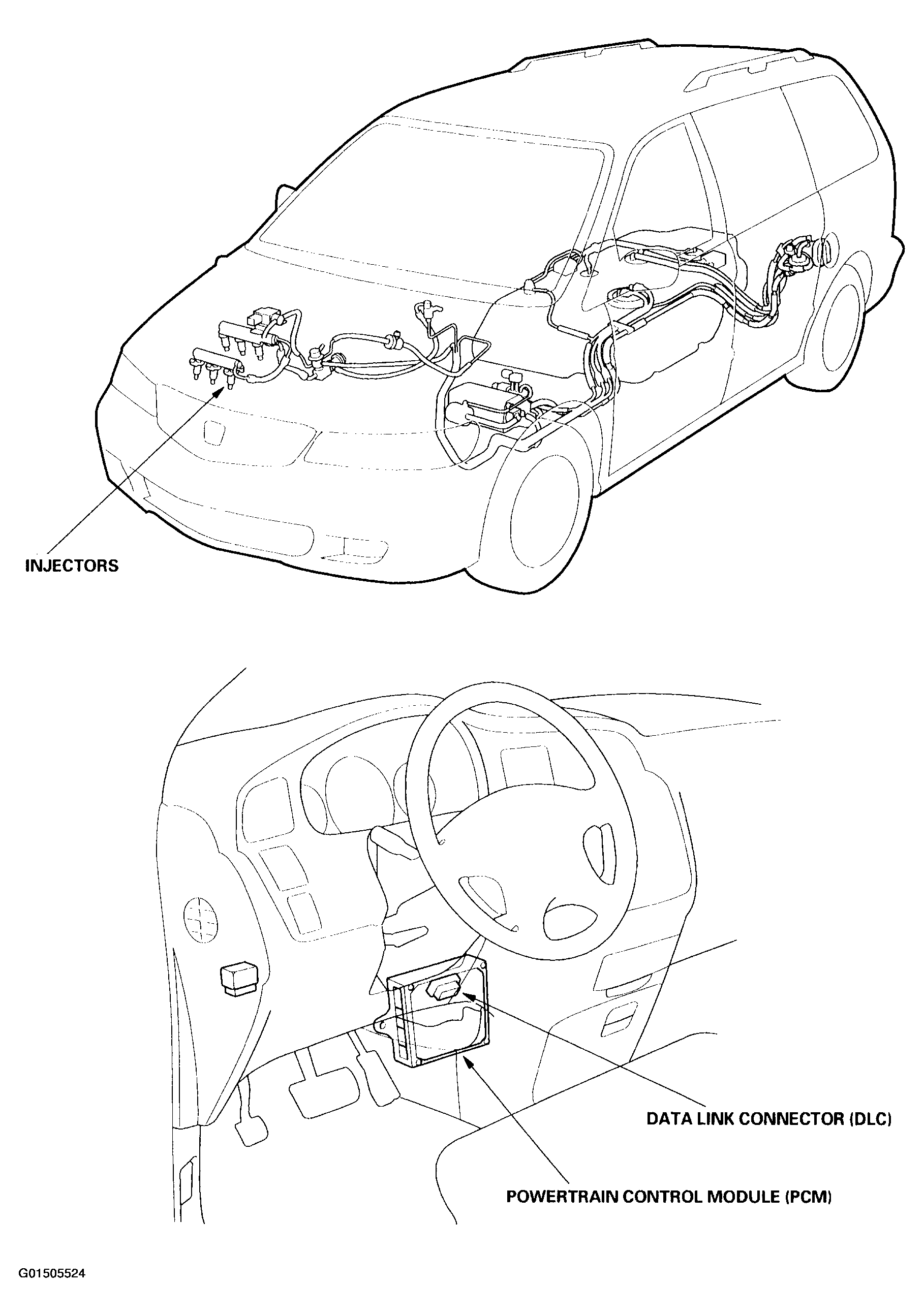

Fig 4: Identifying Injectors ('02-04 models)
G01505524Courtesy of AMERICAN HONDA MOTOR CO., INC.
