Ignition Key Switch Test

  1. Remove the steering column upper and lower covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Disconnect the 7P connector.

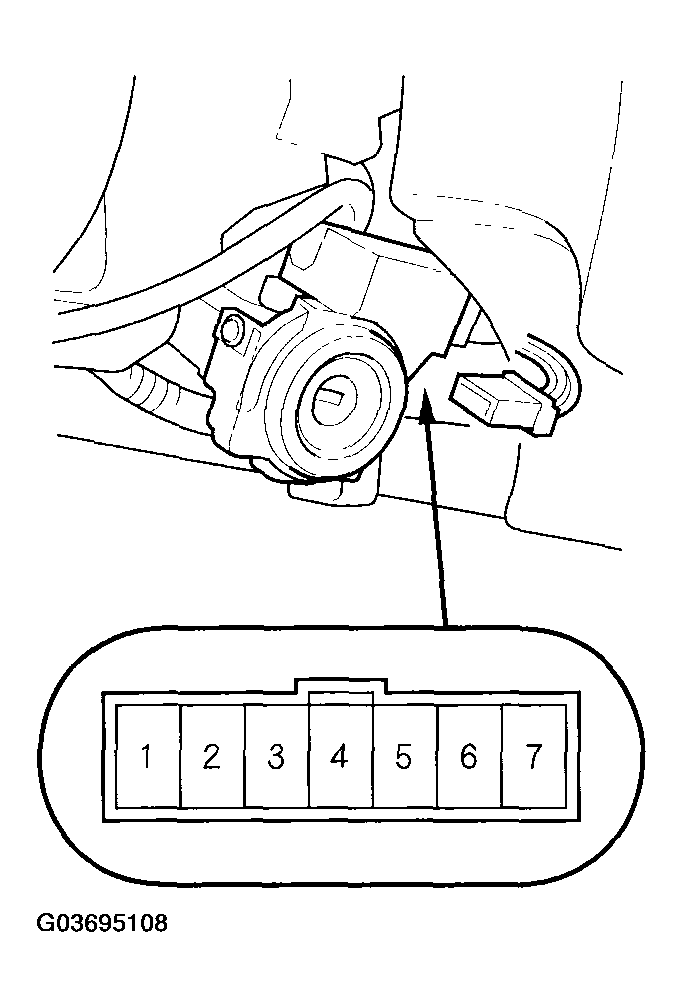

    Fig 1: Identifying 7P Connector
    G03695108Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the No. 1 and No. 3 terminals.
    • There should be continuity with the key in the ignition switch.
    • There should be no continuity with the key removed from the ignition switch.
  4. If the continuity is not as specified, replace the ignition key switch.
