Rear Subframe Replacement
>>
Reference hole alignment
Reference hole alignment

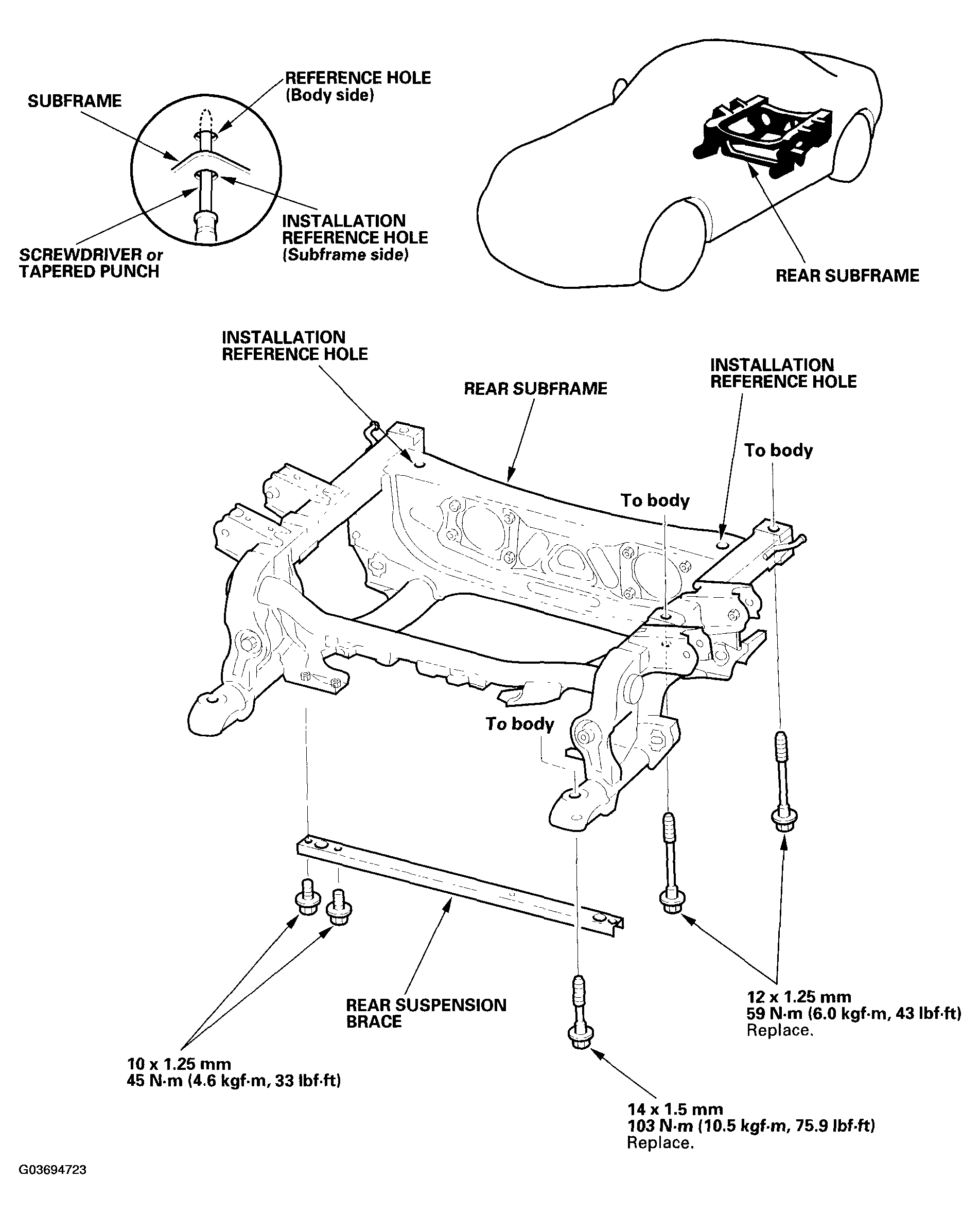

Fig 1: Rear Subframe With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
