Component Location Index
Component Location Index

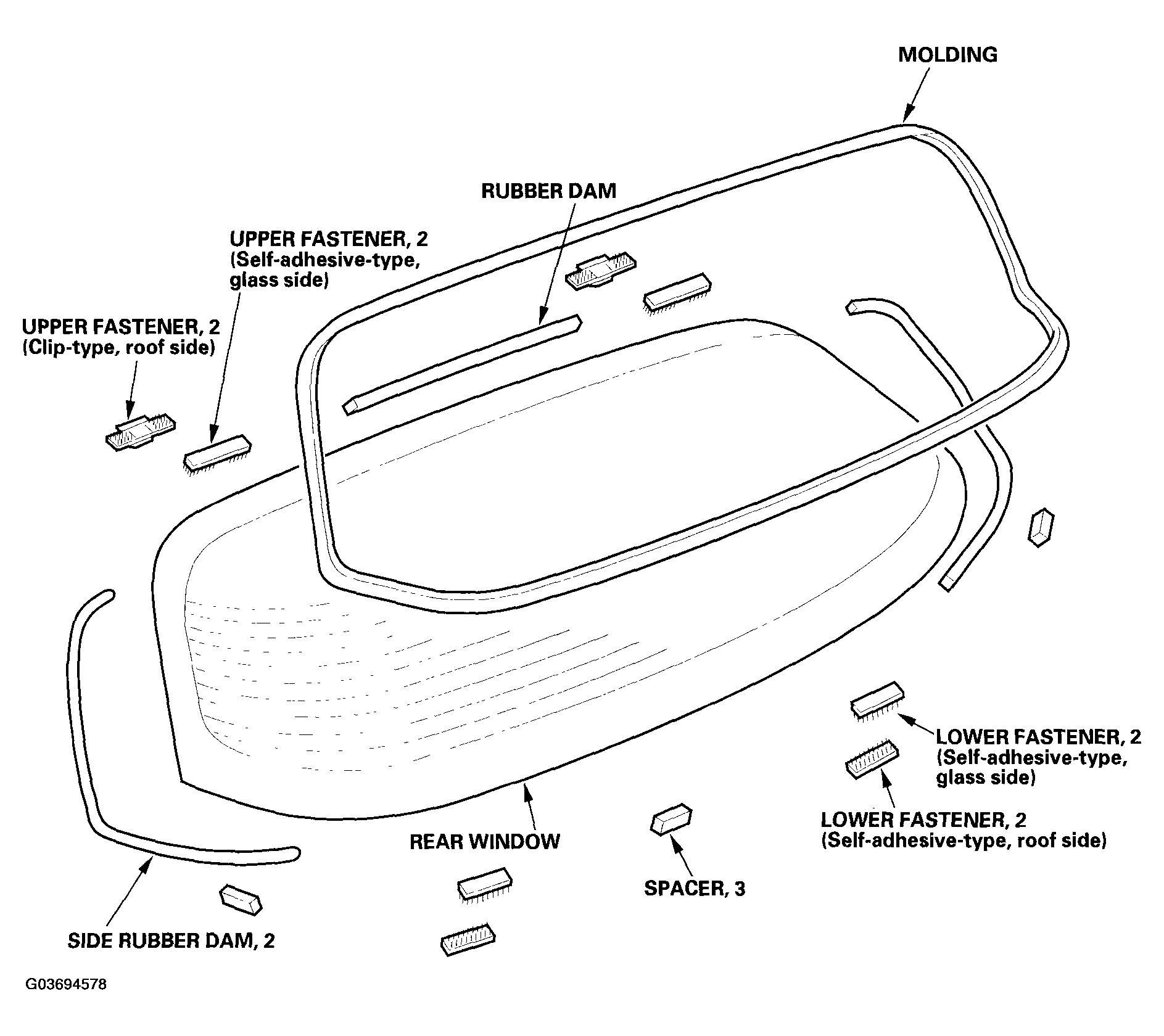

Fig 1: Identifying Glass Replacement Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Glass Replacement Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
